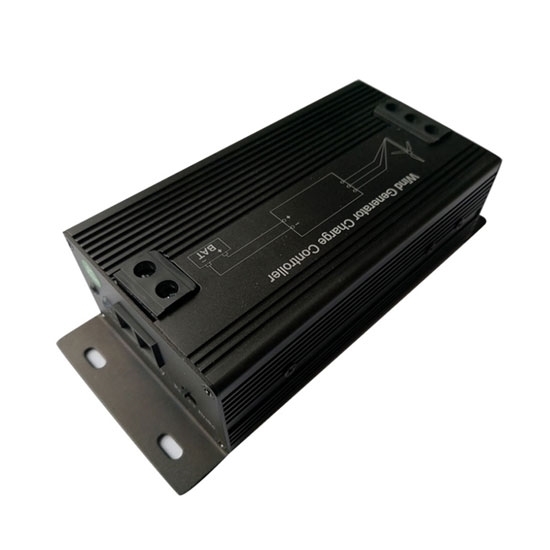

400W 12V/24V/48V Wind Turbine Charge Controller

0 reviews • Write a review

from

$123.08

Ex Tax: $123.08

Stock: In Stock
Model: RDDLZ-WTC-400
Weight: 1.00
SKU: RDDLZ-WTC-400

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

400 Watt 48V charge controller for wind turbine generator, 12V/24V/48V (auto recognition), small size, easy to install, can be used for fishing boats, street lamps and households.

Note:

The controller needs to be selected according to the power of the wind turbine and the battery voltage.

Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.

Specification:

Model	RDDLZ-WTC-400
Control System Rated Voltage	12V/24V/48V (Automatic recognition voltage) RDDLZ recommends the same generator voltage as the battery voltage
Wind Turbine Rated Power	400W
Battery Protection	15V/29V/58V
Temperature Compensation (Optional)	8mV/°C (Adjustable) -20~65°C
Working Environment Temperature	-20~+55°C 35~95%RH
Storage Environment Temperature	-30~+65°C
Altitude	≤5500M
Net Weight	0.5kg
Dimension	1807646mm

Wind Turbine Charge Controller Wiring Diagram
1. Positive and negative terminals of the battery.
2. Green LED indicator, when the system is working normally, the LED will be illuminated.
3. Red LED indicator, when the battery is full, or the controller is in emergency braking state, the LED will be illuminated.
4. Emergency switch, the switch is in - gear, the system is in emergency braking state, and the red LED will be lit, in the O state, the controller is in normal working state.
5. The wind turbine terminal can be connected to the three wires of the wind turbine in turn. If it is a DC fan or a single-phase fan, the fan wiring can be arbitrarily connected to two of the three terminals.
6. RDDLZ wind turbine charge controller is compatible with three-phase, single-phase and DC fans.

Tips: Wind turbine charge controller role

Wind turbine charge controller is an intelligent controller specially designed for wind energy generation systems. By making full use of wind energy resources to generate electricity, the equipment can not only efficiently convert the electric energy generated by the wind turbine to charge the battery, but also provides powerful control functions. The wind turbine controller is specially designed for wind turbine control and battery charging, which can effectively improve the efficiency of wind power generation. The wind energy charging controller can effectively prevent the runaway when the wind speed is too fast, and the danger to the wind turbine when strong wind occur.
