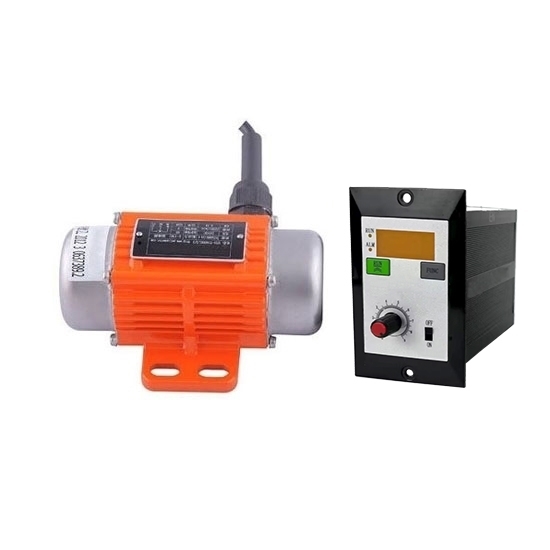

60W 36 Volt DC Brushless Vibrating Electric Motor With Controller

60W 36 Volt DC Brushless Vibrating Electric Motor With Controller
60W 36 Volt DC Brushless Vibrating Electric Motor With Controller
0 reviews • Write a review
from
$575.29
Ex Tax: $575.29
  • Stock: In Stock
  • Model: RDDLZ-60DCBVM-364
  • Weight: 1.00
  • SKU: RDDLZ-60DCBVM-364

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Wholesale price 60W brushless vibration motor operates at 36V voltage, 7000 rpm high speed and 2.6A current. The small vibrate DC motor has overload and stop protection functions and a user-friendly display speed controller for easy operation.

Features

  • 60W 36V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
  • High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
  • Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
  • It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
  • Special voltage and speed can be customized, please contact us.

Specifications

ModelRDDLZ-60DCBVM-364
Voltage36V
Rated Speed7000rpm
Current2.6A
Power60W
Force1.6 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
Protection RankIP65 (Dustproof and Waterproof)
Insulation GradeF (The Highest Heat Resistant Temperature is 155℃)
Cooling ModeNatural Cooling (IC410)
Working SystemS1 (Continuous Duty)
Weight1.8 kg
Dimensions146mm x 110mm x 69mm
Frame No4
CertificateCE

Notes

  1. +/- 20% voltage tolerance.
  2. Max/Minimum speed range that can be achieved via potentiometer: 1000-7000rpm.

Dimension (Unit: mm)

Frame NoABCDEFGHIJKLMN
414611068.5960.427.54527.530.591.5917.555M-16


Internal Structure

Applications

RDDLZ 60W 36V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

Tips: 2 Types of Industrial DC Vibration Motors

In the context of industrial DC vibration motors, they are generally classified into brushless DC vibration motors and brushed DC vibration motors. Here’s a breakdown of these two types:

  • Brushless DC Vibration Motors
    No brushes or commutators, reducing friction and wear, which increases efficiency and longevity. Typically more efficient and quieter than brushed motors. Can be controlled with precision, offering smoother operation and more control over vibration intensity and frequency.
  • Brushed DC Vibration Motors
    Use brushes and a commutator to switch the direction of the current and generate motion. Generally simpler and more cost-effective than brushless motors. Can produce more vibration at lower speeds, but the brushes wear out over time and require maintenance.
