6" Electric Wafer Butterfly Valve

0 reviews • Write a review

from

$923.89

Ex Tax: $923.89

Stock: In Stock
Model: RDDLZ-EBV-150WF
Weight: 1.00
SKU: RDDLZ-EBV-150WF

Available Options

Short Description

Power Supply

Butterfly Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This electric butterfly valve cannot be used for drinking water.

Industrial electric actuated butterfly valve can control a lot of medium at -10 °C to 120 °C, including water, air, gas, oil and other liquids. Electrically operated butterfly valve is equipped with an aluminum alloy electric actuator and EPDM seat, which is a reliable device for gases and liquids flow control.

Specification

Butterfly Valve	Model	RDDLZ-EBV-150WF
	Media	Water, Air, Gas, Oil, Liquid, etc.

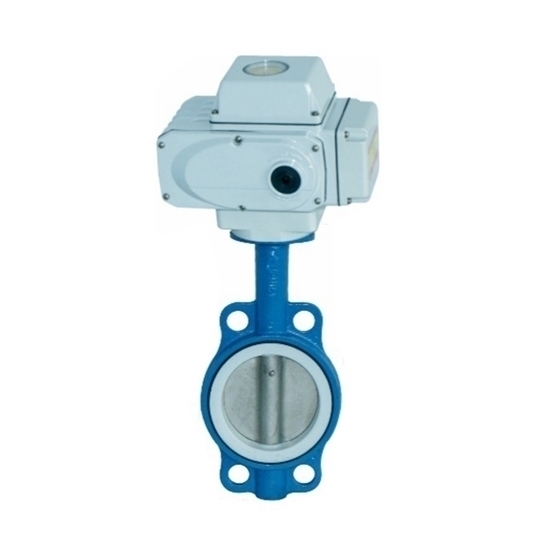

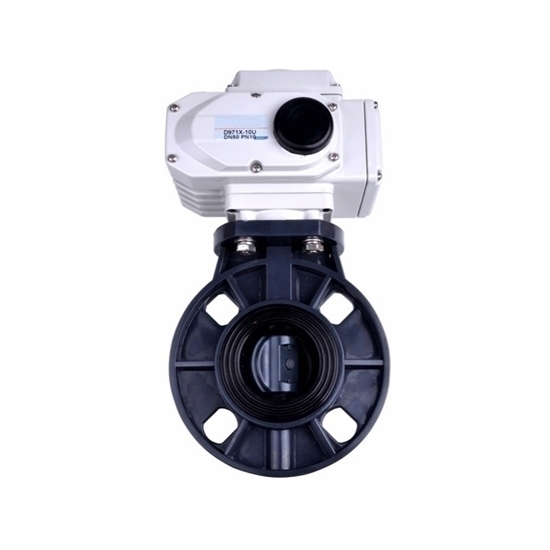

	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	6 inch (DN150, 150mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	RDDLZ-KLST-20
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	80N.m, 9s 100N.m, 15s 150N.m, 20s 200N.m, 30s/ 60s
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
150	56	139	405	255	238	211	4-25

PVC Butterfly Valve Body Dimension (Unit: mm)

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H1	L
D1	n-φe	D1	n-φe	D1	n-φe
240	8-23	241.5	8-23	240	8-18	287	152	169	177	19	70	54	10.5	102	22	372	255

Details

Tips for installing electric butterfly valve

During installation, the valve disc should stop in the closed position.
The opening position should be determined according to the rotation angle of the butterfly plate.
For butterfly valves with bypass valves, the bypass valve should be opened before opening.
It should be installed according to the manufacturer's installation instructions. For butterfly valves with heavy weight, a firm foundation should be set up.
