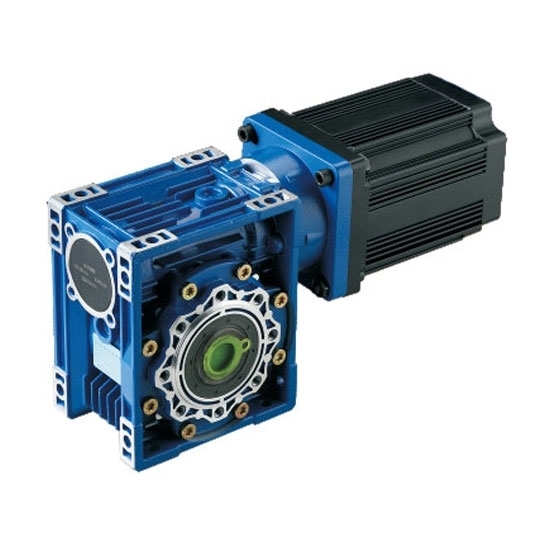

600 W 3 phase BLDC motor matches with worm gearbox providing high torque at 24V, 36V or 48V power supply, gear ratio from 7.5:1 to 100:1 available, high speed and high performance.

Specification

Allowable Torque with Gear Head

Note:

• This torque value is the rated output value of the reducer, not the final motor + output torque value T after reducer.
• The formula for calculating the output torque after the final motor + reducer: T = rated torque of the motor * reduction ratio * 0.6, and T≤ rated allowable output torque value of the reducer.

Dimensions (Unit: mm)

Mounting screws are included with gearhead

Speed-Torque Curve

• Instantaneous maximum torque line
  The maximum torque momentarily impacts the load when the motor is started.
  Beyond this torque, the over-current protection of the driver will cause the motor to stop.
• Short time operation area
  The motor can run at a short time within this torque range at different speeds.
  If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
• Rated operating torque line
  The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
• Continuous operating area
  When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Details

Tips: Why does DC worm gear motor produce vibration?

• The motor, worm gearbox and working machine are not fixed well, check the fixing bolts.
• The teeth of the worm gear pair are excessively worn and damaged. It is recommended to replace the worm gear pair teeth.
• The bearing is worn and the gap is large, and it needs to be replaced with a new bearing.
• The bolts are not fixed properly, check the fixing bolts of each part and tighten them.
