2 Hp (1.5kW) 3 Phase 4 Pole AC Induction Motor

0 reviews • Write a review

from

$485.88

Ex Tax: $485.88

Stock: In Stock
Model: RDDLZ-IM-15004P
Weight: 1.00
SKU: RDDLZ-IM-15004P

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

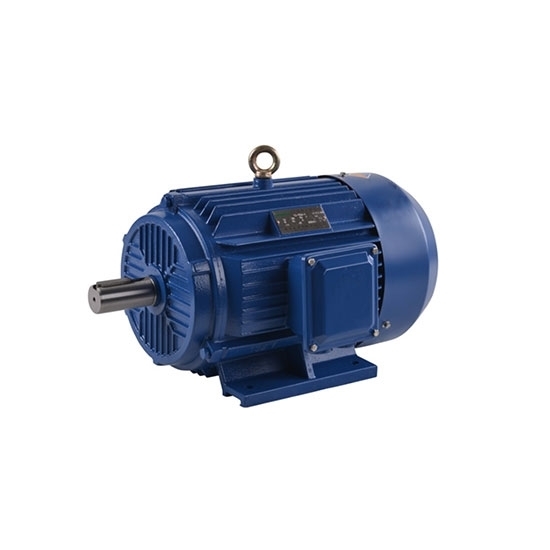

2 hp (1.5kW) 3-phase 4-pole AC induction motor or asynchronous motor is characterized by rated speed 1400rpm, foot mounting, 90L frame size and it can widely used in various kinds of general purpose machineries like fans, pumps, compressors, machine tools, transportation and so on.

2hp Induction Motor Specification

Basics	Model	RDDLZ-Y2-90L-4
	Design Standard	IEC
	Weight	23kg
	Frame Type	90L
	Mounting	Horizontal Foot Mounting (B3)
	Wiring Method	Output≤4hp (3kW), Y connection Output≥5.5hp (4kW), Delta connection
	Degree of protection	IP54/IP55
	Insulation Class	Class F
	Cooling	TEFC (compliance to IC 411 code of IEC 60034-6)
Technical Parameters	Nominal Output	2.0hp or 1.5kW
	Pole Number	4-pole
	Nominal Speed	1400rpm
	Frequency	50Hz
	Nominal Voltage	380V (Y connection by default) / 220V (Change Y to Δ connection on your own)
	Nominal Current (full load)	3.68A/6.37A
	Efficiency	78.5%
	Power Factor( cosφ)	0.79
	Nominal Torque (Tn)	10.2Nm
	Locked Rotor Torque/Nominal Torque (TST/Tn)	2.3
	Maximum Torque/Nominal Torque (Tmax/Tn)	2.3
	Locked Rotor Current/Nominal Current (IST/In)	6.0
	Noise Level	61dB/(A)
Environment	Ambient Temperature	-15℃+40℃
	Altitude	Less than 1000m above sea level

3-phase Induction Motor Dimensions

Frame Type	Mounting Dimensions (mm)										Overall Dimensions
Frame Type	A	A/2	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
90L	140	70	125	56	24	50	8	20	90	10	180	195	155	250	345

Wiring Diagrams (Three-phase squirrel-cage induction motor)

Details

Tips: Basic Structure of Induction motor

The main structure of induction motor is composed of two parts stator and rotor where there is an air gap between them. In addition, there are end bells, bearings, motor frame and other components.

stator
Stator is a fixed part of asynchronous motor, consisting of motor frame, iron core and windings. Motor frame is the shell of motor, playing the role of supporting the motor, which is made of iron. Stator iron core is a hollow cylinder, stacked up with 0.5 mm thick silicon steel sheets. Stator windings are wound with insulated copper wires and embedded in the stator slot, which are separated by insulating material between the windings and the slot.
Air gap
The air gap of asynchronous motor is much smaller than the direct current motor with the same capacity, 0.2 ~ 1.0mm on average for medium and small asynchronous motor.
Rotor
Motor rotor is composed of iron core, windings and revolving shaft. Rotor core is also a part of the magnetic circuit, generally stacked by silicon steels and fixed on the revolving shaft. Wound-type rotor winding can be connected into star or delta. In general, the small capacity rotor is connected into triangle; the large and medium capacity one is connected into star. The winding structure of squirrel-cage rotor is quite different from the one of stator. There are slots on the rotor iron core with a bar on each slot. Two ends of iron core that connect all the bars to the external of slots respectively form a short circuit. If the iron core is removed from the stator, the windings shape is like a squirrel cage. Some bars are made of copper, and some are aluminum.
