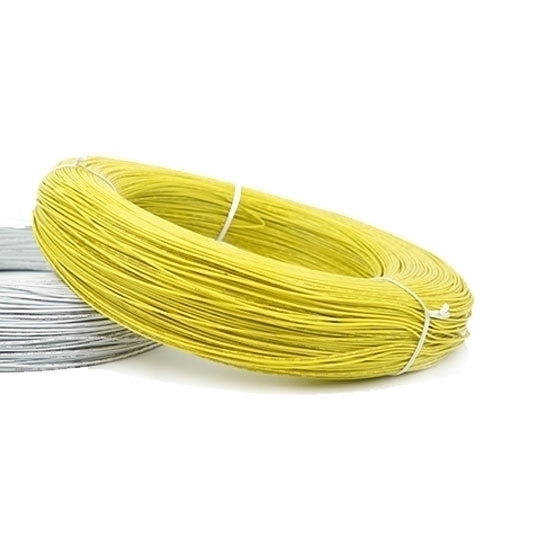

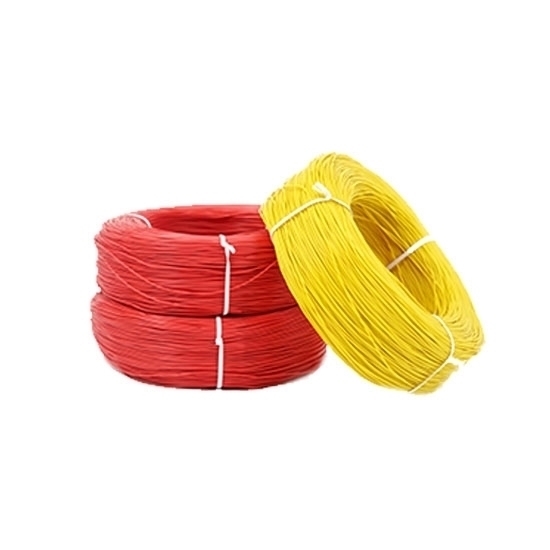

26AWG Hook-Up Wire, UL1007, 300V, 2000 Ft

26AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
26AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
26AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
26AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
26AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
from
$110.79
Ex Tax: $110.79
  • Stock: In Stock
  • Model: RDDLZ-UL1007-26
  • Weight: 1.00
  • SKU: RDDLZ-UL1007-26

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

ModelRDDLZ-UL1007-26
UL Style1007
Size26 AWG
Rated Voltage300V
Color (Optional)White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature80 ℃
ConductorTinned/ Bare Copper
Conductor TypeStranded
Conductor Size (±0.005)NO. 7/ 0.16mm
Conductor Resistance 20℃150 Ω/km
Conductor Diameter0.48mm
InsulationPVC
Insulation ThicknessNom.0.40mm
Min.0.33mm
Overall DiameterAverage1.28mm
Tolerance±0.1mm
Package2000 ft/roll
Weight4kg

Details

Tips: Difference between UL1007 wire and UL1571 wire

  1. Different pressure and temperature
    The rated voltage of UL1007 wire is 300V, the rated temperature is 80℃. The rated voltage of UL1571 wire is 600V, the rated temperature is 105℃.
  2. Different insulation thickness
    UL1571 wire is thicker than UL1007 wire.
  3. Different wire diameter
    UL1007 wire is thinner than UL1571 wire in outer diameter.
