5 Hp NEMA AC Induction Motor, Single Phase 230V, ODP/TEFC

0 reviews • Write a review

from

$1,249.21

Ex Tax: $1,249.21

Stock: In Stock
Model: RDDLZ-IM-RS52
Weight: 1.00
SKU: RDDLZ-IM-RS52

Available Options

Short Description

Enclosure Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

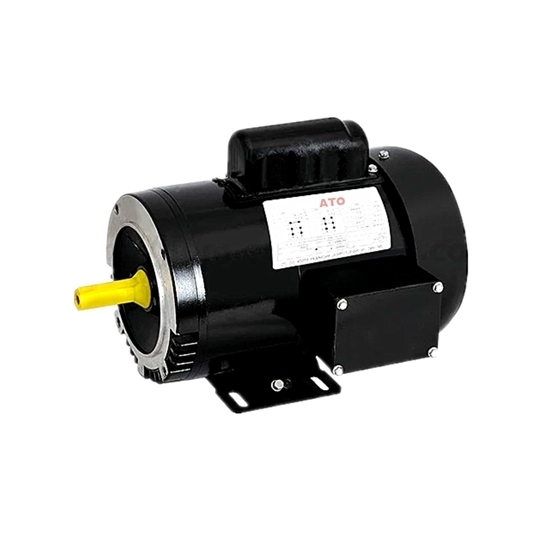

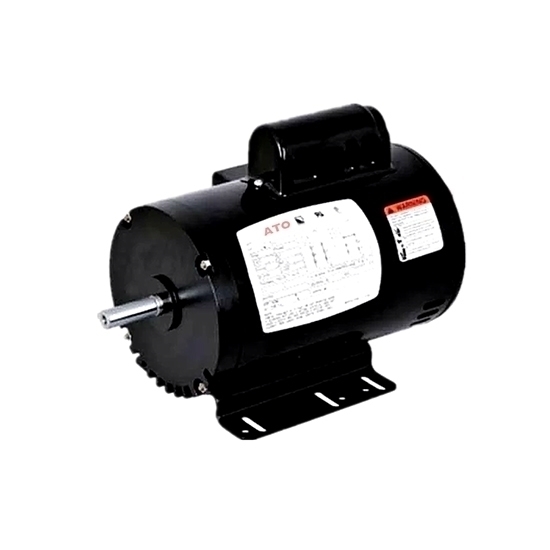

RDDLZ cheap AC electric motor is NEMA design B, with output 5 horsepower, 2 pole, 184T roll steel frame size, rated speed 3450 rpm, open drip proof and totally enclosed fan cooled enclosure are optional for you.

Basics	Model	RDDLZRS52D01	RDDLZRS52T01
	Enclosure	ODP	TEFC
	Type	General Purpose Asynchronous Motor
	Item Weight	97 Ibs
	Motor Length	18.8 inch
	Frame	184T Frame
	Design	NEMA Design B
	Certification	CE, UL
	Motor Material	Roll Steel
Technical Parameters	Service Factor	1.15	1
	Horsepower	5 hp
	Rated Frequency	60 Hz
	Phase	Single Phase
	Pole	2 pole
	Voltage	230V AC
	Full Load Amps	21.3A
	Speed	3450 RPM
	Efficiency	80%
	Duty	Continuous
	Isulation Class	Class F
	Protection Class	IP54/ IP55
	Mounting Method	Foot Mounted
Environment	Ambient temperature	-15℃≤θ≤40℃
	Altitude	Altitude should be lower than 1000 meters above sea level

5 hp AC Induction Motor Dimension

Unit: inch

Frame Size	AB	BA	Max A	Max B	C	D	E	2F	H	N	N-W	O	P	R	S	U	Min V	Min ES	Min AA
184T	7.2	2.75	8.5	6.5	16.5	4.5	3.75	4.5	0.41	2.98	2.75	9.25	9.25	0.986	0.25	1.125	2.5	1.78	3/4

NEMA AC Induction Motor Connection Diagram

Details

Tips: Features of NEMA Design B
Design B is the most common design of AC induction motor. Its starting torque is similar to that of design A, but sometimes still lower, providing a relatively low starting current. However, in industrial application, it locks locked rotor and still allows starting load. The rotating-speed difference is lower than or equivalent to 5%. The electric efficiency and full-load power factor are relatively high. The typical applications include pump, fan and machine tool.
