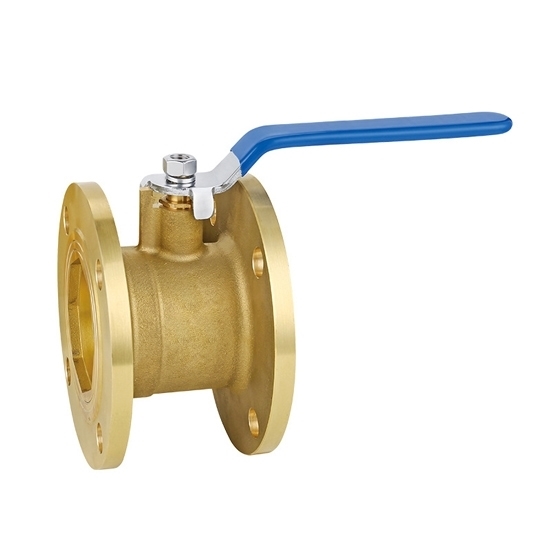

2-1/2" Brass Flanged Ball Valve

0 reviews • Write a review

from

$648.89

Ex Tax: $648.89

Stock: In Stock
Model: RDDLZ-BBVH-DN65
Weight: 1.00
SKU: RDDLZ-BBVH-DN65

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note:

Unsalable status.
This brass ball valve can not be used for drinking water.

RDDLZ brass ball valve with 2-1/2 inch (DN65) flanged port is widely used in HVAC systems, water treatment plants, and industrial machinery for optimal flow management.

Specification

Model: RDDLZ-YQ-1030-DN65
Size: 2-1/2 inch (DN65)
Body Material: Brass
Nominal Pressure: 1.6MPa
Applicable Temperature: -20℃≤T≤150℃
Working Media: Water, Oil, Non-corrosive and Non-flammable Gases
Flange Standard: GB9113 Standard

Dimension (Unit: mm)

DN	L	H	D1	D	B	n-d
65	110	110	200	145	53	4-18

Tips: Brass ball valve sealing

The most important seat sealing ring material of the ball valve is polytetrafluoroethylene (PTFE), which is inert to almost all chemical substances, and has a small friction coefficient, stable performance, not easy to age, wide temperature range, and excellent sealing performance. Comprehensive characteristics. However, the physical properties of PTFE, including high coefficient of expansion, susceptibility to cold flow, and poor thermal conductivity, require that seat seal designs must be built around these properties. Plastic materials for seat seals also include filled PTFE, nylon, and many others. However, when the sealing material hardens, the reliability of the seal is compromised, especially under the condition of low-pressure drop. In addition, synthetic rubber such as nitrile rubber can also be used as a valve seat sealing material, but its applicable medium and temperature range are limited. In addition, if the medium is not lubricated, the use of synthetic rubber tends to jam the ball.
