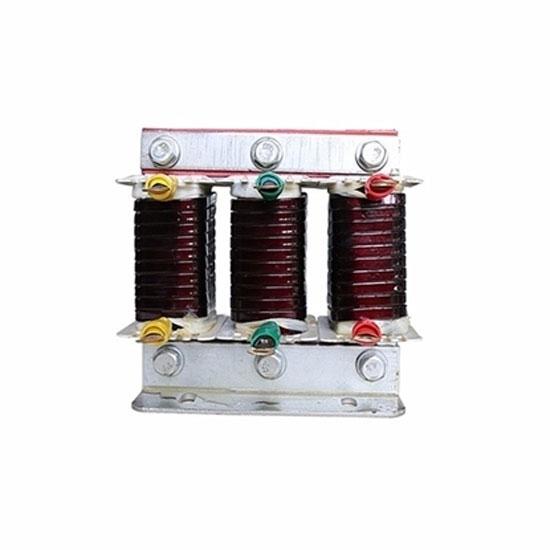

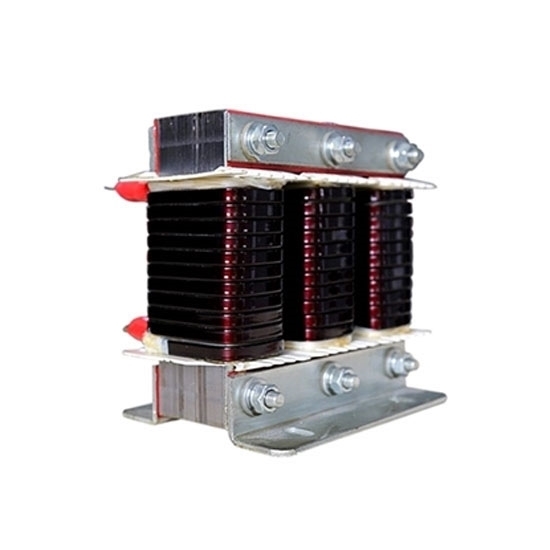

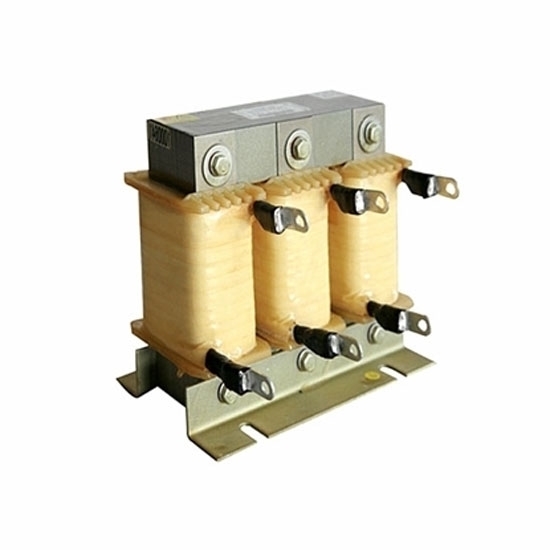

5 Hp (3.7 KW) AC Line Reactor, 3 Phase Output

0 reviews • Write a review

from

$272.89

Ex Tax: $272.89

Stock: In Stock
Model: RDDLZ-OLR-3d7
Weight: 1.00
SKU: RDDLZ-OLR-3d7

Available Options

Material

Output AC Voltage (V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

5 hp AC output line load reactor work freqency 50Hz/ 60Hz, rated current 10Amps, with reliability and higher efficiency, mainly used in industrial automation system engineering, especially in the use of frequency converter occasions.

3-Phase Line Output Reactor Specifications

Basic	Model	RDDLZ-OCR-0010-1M70-0.4SC
	Recommended VFD Model	GK3000-4T0037G (5 hp three phase VFD)
	Phase	3 Phase
	Power	5 hp (3.7 kW)
	Weight	2.8 kg
Technical Parameters	Work Valtage	380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
	Work Frequency	50Hz/60 Hz
	Rated Current	10 A
	Max Current	1.5 Times the Rated Current, Continued 60s
	Inductance Value	10.7 mH
	Material	Aluminium/Copper (Optional)
	Voltage Drop	2%
	Noise	≤65dB
	Insulation Class	Class F, H
	Protection Class	IP00-IP22
	Insulation Resistor	≥100MΩ
Working Environment	Operation Environment	-10℃~+45℃
	Temperature Rise	≤85K
	Humidity	≤90%RH, without condensation
	Running Ambient Temperature	-25℃~+45℃
	Altittude	≤2000m

3-Phase Output Line Reactor Circuit Diagram

Tips: Why do you need an RDDLZ input reactor?

Inverter in use process, often from the impact of the surge current and surge voltage, will seriously damage the transducer and speed performance and service life, so want to in front of the reactor with input, to restrain the surge voltage and surge current, the protection of inverter and speed governor, prolong its service life and prevent the harmonic interference, At the same time because of the frequency converter and governor is with the method of variable frequency speed regulation, so the speed will often produce a higher harmonic and produce waveform distortion, will influence the equipment normal use, therefore, must be in the reactor with a into the line input end, converter can improve the power factor and harmonic current, filter out harmonic voltage and harmonic current, improve the quality of power grid.
