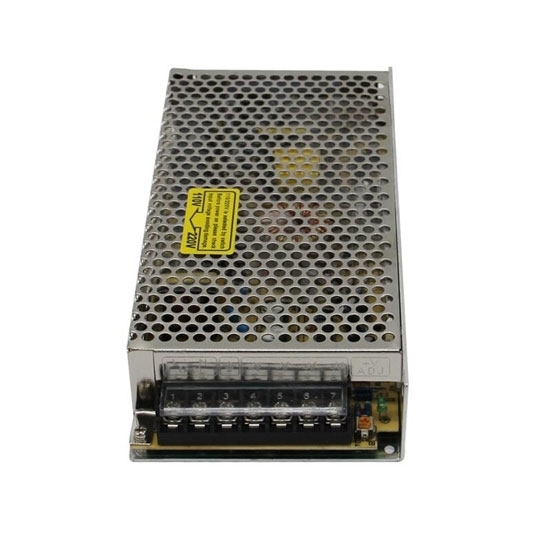

48V DC 2A 100W Switching Power Supply

0 reviews • Write a review

from

$58.15

Ex Tax: $58.15

Stock: In Stock
Model: RDDLZ-SMPS-100-48
Weight: 1.00
SKU: RDDLZ-SMPS-100-48

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Universal AC input range selectable by a switch
Protections: short circuit and overload
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
Low cost and high reliability

24V DC 4.5A 108W SMPS Specification

Model		RDDLZ-S-100-48
Output	DC Voltage	48V
	Rated Current	2A
	Current Range	0 ~ 2A
	Rated Power	96W
	Ripple & Noise (Max.)(Note 2)	100mVp-p
	Voltage Adjust Range	43.2 ~ 52.8V
	Voltage Tolerance (Note 3)	±1.0%
	Line Regulation	±0.2%
	Load Regulation	±0.2%
	Setup, Rise, Holdup Time	200ms, 80ms, 20ms at full load
Input	Voltage Range	85 ~ 132VAC/180V~264VAC (selected by a switch) or 255 ~ 370VDC
	Frequency Range	47~63Hz
	Efficiency (Typ.)	84%
	AC Current (Typ.)	2.4A/115V AC 1.2A/230V AC
	Inrush Current (Typ.)	Cold start: 30A/115V AC 60A/230V AC
	Leakage Current	<1mA/240V AC
Protection	Overload	105~150% rated output power Protection type: Shut down output voltage, re-power on to recover.
Environment	Working Temperature	-10 ~ +60℃
	Working Humidity	20~90% RH non-condensing
	Storage Temperature	-20~+85℃
	Storage Humidity	10~95% RH non-condensing
	Temperature Coefficient	±0.03%/℃ (0~50℃)
	Vibration	10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
Safety & EMC (Note 4)	Safety Standards	UL1012 Approved
	Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
	EMC Emission	Compliance to FCC Part 15 J conduction Class B
Others	MTBF	≥322.4K hrs MIN. MIL-HDBK-217F (25℃)
	Dimension	1999838mm (LWH)
	Weight	0.63kg
Note	1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance includes set up tolerance, line regulation and load regulation. 4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives.

Dimension (Unit: mm)

Details

SMPS Power Supply Applications

Power Tools
Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
Offices Devices
Computer, Printer, LCD Monitor, Scanning Machine, etc.
Electrics & Household Appliance
TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc.
Industrial Equipemnt
Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

Tips: How to select switching power supply?

1. Select appropriate specifications of input voltage.

2. Select appropriate power. To extend life span of power supply, it is suggested to select a device with 30% more than rated output power.

3. Consider load characteristics. In case of motors, bulbs or capacitive load, users should select appropriate power supply to prevent overload caused by large current at startup. In case of motors, users should consider backward flow of voltage when the device is halted.

4. Users must consider working temperature of power supply and whether there are additional auxiliary coolers. Output of the power supply shall be reduced in higher temperature conditions.

5. Select following features according to demands:

Protective features: overvoltage protection (OVP), over temperature protection (OTP), and over load protection (OLP) etc.
Application features: signal functions (indication of normal and failure status), remote control, remote measuring, and parallel connection etc.
Special features: power factor correction (PFC), and uninterrupted power supply (UPS)

6. Comply with applicable safety certification and EMC certification.
