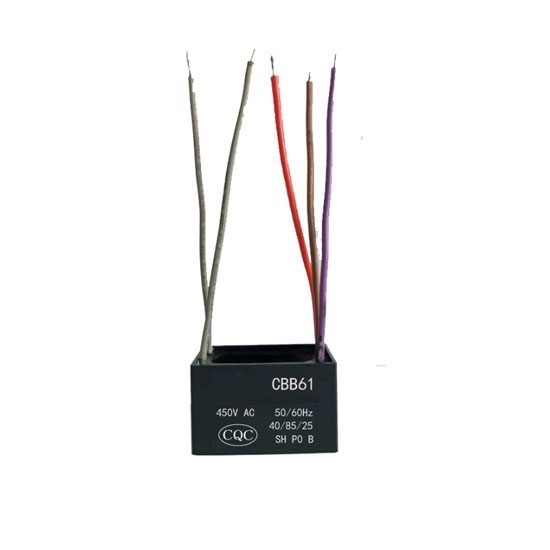

450V Ceiling Fan Capacitor, 1.8μF+1μF+2μF

0 reviews • Write a review

from

$1.49

Ex Tax: $1.49

Stock: In Stock
Model: RDDLZ-FC-CBB61-1812
Weight: 1.00
SKU: RDDLZ-FC-CBB61-1812

Available Options

Short Description

Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Small size ceiling fan capacitor for sale, low price, good stability, capacity value 1.8mfd+1mfd+2mfd, tolerance ±5%, rated voltage can choose 450V AC or 500V AC, ideal for controlling motors, all kinds of fans, toasters.

Specification

Model: RDDLZ-FC-CBB61-1812
Capacity: 1.8μF+1μF+2μF
Rated Voltage: 450V/500V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/85/23
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 48(W) x 23(L) x 35(H)mm
Certificate: CE, CQC

5 Wire Ceiling Fan Capacitor Connection Diagram

Tips: Features of electric fan capacitors

Relatively speaking, the capacitor of electric fan is relatively stable, and its loss is relatively small, but the overload capacity is relatively strong, and the working life is relatively long and reliable, and it does not cause pollution to the surrounding environment. Mainly used in electric fans or refrigerators, including air conditioners, and a some common household appliances, play a relatively large role.
