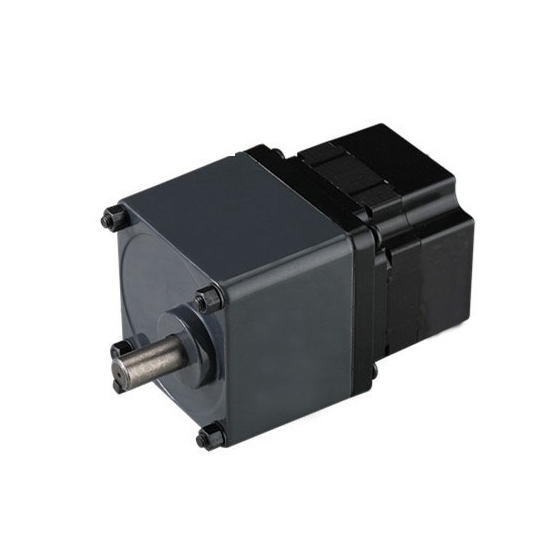

450 W DC Gear Motor, 3000 Rpm, 12V/24V/48V

0 reviews • Write a review

from

$326.35

Ex Tax: $326.35

Stock: In Stock
Model: RDDLZ-BLDC-450
Weight: 1.00
SKU: RDDLZ-BLDC-450

Available Options

Short Description

With Matched Controller

Gear Ratio

Voltage (DC)

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This is a high torque DC gear motor providing 4.3 Nm peak torque, gear ratio is avialable with 3:1 to 200:1. 450W 3000 rpm DC motor with 90 mm size gearbox, designed for 12V, 24V, 48V DC voltage.

450W DC gear motor specifications

Model	RDDLZ-D5BLD450-12	RDDLZ-D5BLD450-24	RDDLZ-D5BLD450-48
Power	450W	450W	450W
Voltage	12V	24V	48V
Rated Speed	3000 rpm	3000 rpm	3000 rpm
No-load Speed	3300 rpm	3300 rpm	3300 rpm
Rated Current	46.88A	23.44A	11.71A
Rated Torque	1.43 N.m	1.43 N.m	1.43 N.m
Peak Torque	4.3 N.m	4.3 N.m	4.3 N.m
No-load Current	< 10.2A	< 7.13A	< 5.61A
Compatible Driver Model	KVD2412N (Click it to the product page)	BLD-100 (Click it to the product page)	BLD-750 (Click it to the product page)
Protection Grade	IP54
Motor Lead Length	300mm
Temperature	0~50℃
Weight	3.5 Kg
Gearbox Model	2GN□K, Enter the gear ratio into the box (□) within the model name
Gear Ratio	3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

Note: Motor length, power, voltage and speed can be customized according to your requirements under the allowed circumstance of adoptable dimension.

The allowable torque with a gearbox

Gear Ratio	3	5	7.5	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Speed (r/min)	1000	600	400	300	240	200	167	150	120	100	83.33	75	60	50	40	33	30	25	20	17	15
Allowable Torque (N.m)	3.48	5.8	8.7	11.6	13.07	15.69	18.82	20	20	20	20	20	20	20	20	20	20	20	20	20	20
Allowable Torque (kgf.cm)	34.81	58.02	87.02	116	130.7	156.9	188.2	200	200	200	200	200	200	200	200	200	200	200	200	200	200

Note:

The values colored "Red" indicate that the gearbox and the DC motor are running in the same direction, and the other values are in the opposite direction.
When it is desired to reduce the speed further than the gear ratio in the table above, an intermediate speed reducer with a gear ratio of 10 can be installed between the motor and the gearbox.

Wiring Definition

Dimension (Unit: mm)

*Mounting screws are included with gearbox

Details

Tips: Advantages of RDDLZ Gear Motors

Gear motor is used to reduce the speed, its application is closely related with its advantages. What are the advantages of RDDLZ gear motors?

Less space, more reliable and durable and higher overload capacity.
Low energy consumption and superior performance, high working efficiency.
Small vibration and low noise, high energy saving, high quality materials and long service life.
Precision machining ensures its positioning accuracy, product quality is guaranteed.
