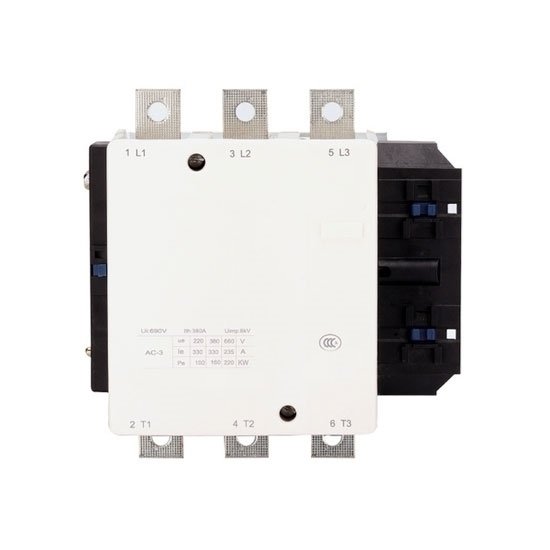

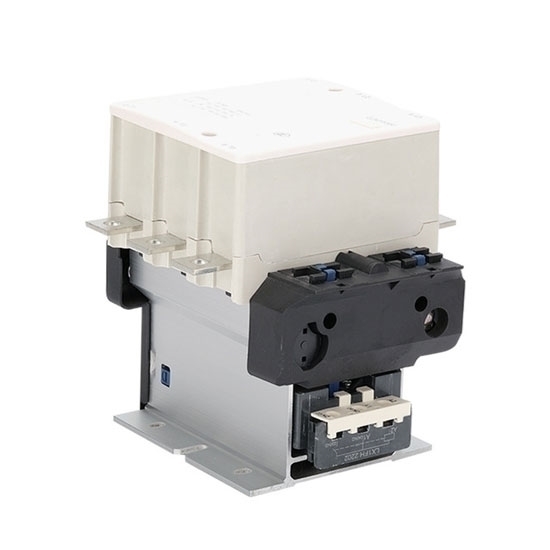

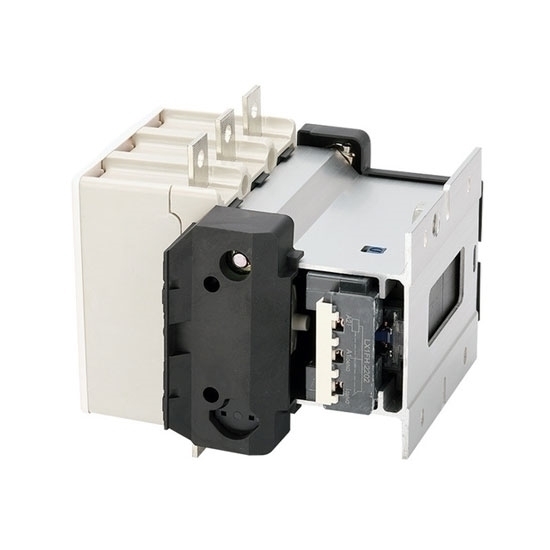

400 Amp 3 Phase AC Magnetic Contactor, 24V/110V/220V Coil

0 reviews • Write a review

from

$558.67

Ex Tax: $558.67

Stock: In Stock
Model: RDDLZ-ACCON-400A
Weight: 1.00
SKU: RDDLZ-ACCON-400A

Available Options

Coil Rated Voltage

Auxiliary Contact

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 pole 3 phase AC magnetic contactor with 24V/110V/220V coils is a form of electrical relay found on electric motors. It is used for long distance breaking circuit and frequently starting or controlling motors.

Specification

Model		RDDLZ-CJX2-F400
Rated Current	le max AC-3 (Ue≤440V)	400A
Rated Current	le max AC-1 (θ≤40°C)	500A
Coil Rated Voltage (Optional)		110V AC, 220V AC, 380V AC
Contact Form		3NO
Auxiliary Contact (Optional)		2NO, 2NC, 1NO+1NC, 2NO+2NC, 1NC+3NO, 4NO, 4NC
Frequency		50Hz/ 60Hz
Rated Insulated Voltage (Ui)		1000V
Rated Impulse Withstand Voltage (Uimp)		8kV
Rated Operational Voltage		440V
Conventional Thermal Current (θ≤40°C)		500A
Operation Frequency	AC-1, AC-2, AC-3	600 times/h
Operation Frequency	AC-4	300A
Rated Power (AC-3)	220/240V	110kW
	380/400V	200kW
	415V	220kW
	440V	250kW
	500V	257kW
	660/690V	280kW
	1000V	185kW
Connection/ Wiring	Number of Lines	2
	Line Size	30x5mm²
	Cable with Splicing	2x150mm²
	Screw Diameter	φ10
Tightening Torque		35N.m
Standards-Compliant		IEC60947-4-1, GB14048.4, EN60947-4-1
Dimensions		206 x 213 x 219mm
Weight		19.5kg

Details

Tips: Why do you need to buy an RDDLZ AC magnetic contactor?

The AC magnetic contactor is generally used to start and control equipment. It uses different control wiring methods to control the forward and reverse rotation, start and stop of the electrical motor, and can realize remote control by controlling the length of the cable. Changing the connection can also realize multiple controls. In the state of power failure, the motor can be stopped to prevent it from running due to the power on again, which will protect the operators from unforeseen injuries. Of course, the motor can be started manually after the power goes on again. The AC contactor can be used together with an overheating relay or a motor protector to achieve the purpose of protecting the motor.
