4 Position DIP Switch, 8 Pin, SPST

0 reviews • Write a review

from

$9.19

Ex Tax: $9.19

Stock: In Stock
Model: RDDLZ-DIP-4P
Weight: 1.00
SKU: RDDLZ-DIP-4P

Available Options

Short Description

Color

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

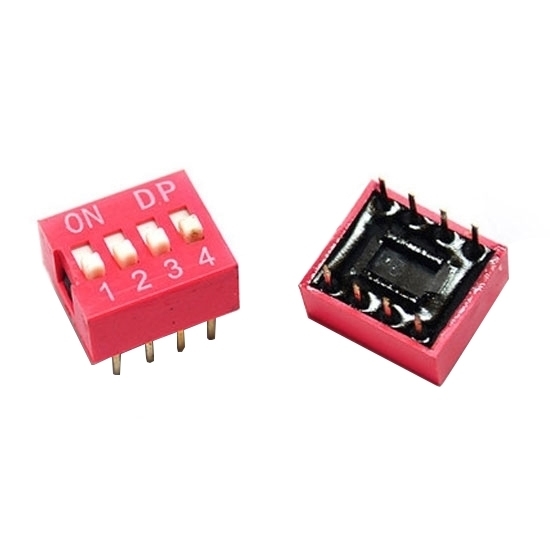

4 position 4 way electronic DIP switch is a dual in-line package switch that can be mounted directly on a circuit board to activate or deactivate different electronic circuits.

Specification

Model		RDDLZ-DIP-4P
Spacing		2.54mm
Number of Switch		4
Number of Pin		8
Maximum Operating Force		8N
Push Button Stroke		2mm
Operating Temperature		-20℃~+70℃
Storage Temperature		-40℃~+85℃
Contact Resistance		Initial Value: 50MΩ, After Test: 100MΩ
Insulation Resistance		100MΩ, 500VDC
Compressive Strength		500VAC/1min
Interpolar Capacitance		5pF
Loop		SPST (Single Pole Single Throw)
Electrical Life		Tested under voltage 24V DC and current 25mA, it can be dialed back and forth about 2000 times
Rated Current	Does not Switch Frequently	10mA, Withstand Voltage 50V DC
	Switch Frequently	25mA, Withstand Voltage 24V DC
Weight		0.1kg

Dimensions (Unit: mm)

Tips: DIP switch for PLC control system

DIP switches are widely used in data processing, communication, remote control and anti-theft automatic alarm systems, air showers and other products that require manual programming. If some data in the PLC control system needs to be modified frequently, you can use a multi-position DIP switch to connect to the PLC and set the data outside the PLC. In the figure, the COM terminal of the 4 position DIP switch is connected together with the COM terminal of the PLC. The 4 data lines of each DIP switch are connected to the 4 input points of the PLC in a certain order.
