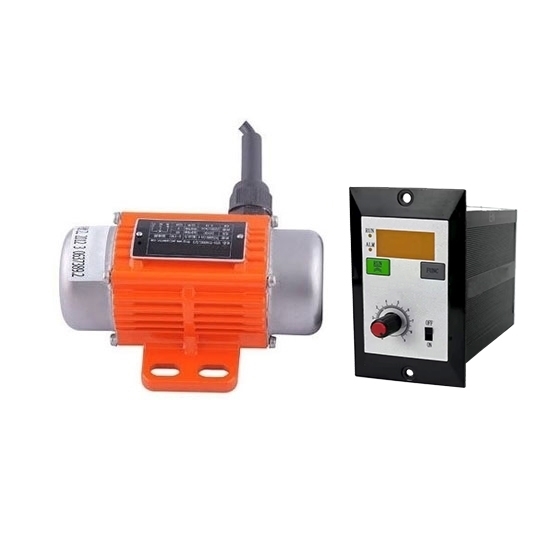

35W 24 Volt DC Brushless Vibrating Electric Motor With Controller

0 reviews • Write a review

from

$525.14

Ex Tax: $525.14

Stock: In Stock
Model: RDDLZ-35DCBVM-244
Weight: 1.00
SKU: RDDLZ-35DCBVM-244

Available Options

Short Description

With Speed Controller

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

35W miniature brushless vibration electric motor, operating at 24V DC with a rated speed of 4700rpm and a current of 1.3A. Its small design and high efficiency make it an ideal choice for material handling, compaction, and other industrial processes.

Features

35W 24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
Special voltage and speed can be customized, please contact us.

Specifications

Model		RDDLZ-35DCBVM-244
Voltage		24V
Rated Speed		4700rpm
Current		1.3A
Power		35W
Force		0.8 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
Protection Rank		IP65 (Dustproof and Waterproof)
Insulation Grade		F (The Highest Heat Resistant Temperature is 155℃)
Cooling Mode		Natural Cooling (IC410)
Working System		S1 (Continuous Duty)
Weight		1.8 kg
Dimensions		146mm x 110mm x 69mm
Frame No		4
Certificate		CE

Notes

+/- 20% voltage tolerance.
Max/Minimum speed range that can be achieved via potentiometer: 1000-7200rpm.

Dimension (Unit: mm)

Frame No	A	B	C	D	E	F	G	H	I	J	K	L	M	N
4	146	110	68.5	9	60.4	27.5	45	27.5	30.5	91.5	9	17.5	55	M-16

Internal Structure

Applications

RDDLZ 35W 24V 4700rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

Tips: Vibrating Electric Motors for Screening Equipment

As a commonly used vibration source for vibration screening equipment, vibrating electric motors have been widely used in various vibration machinery because of their characteristics of strong adaptability, simple use and maintenance, large excitation force, long service life, and economical practicality. Selecting different types of vibration motors and using different installation combinations can bring different vibration trajectories to the vibration screening machine and complete the screening of various equipment.

A set of adjustable eccentric blocks is installed at each end of the rotor shaft of the vibration electric motor, and the exciting force is generated by the high-speed rotation of the shaft and the eccentric block. The excitement force generated by the block is transmitted to the vibration machine through the motor. Adjust the outside eccentric block to make the included angle with the inside eccentric block to change the excitation force steplessly.
