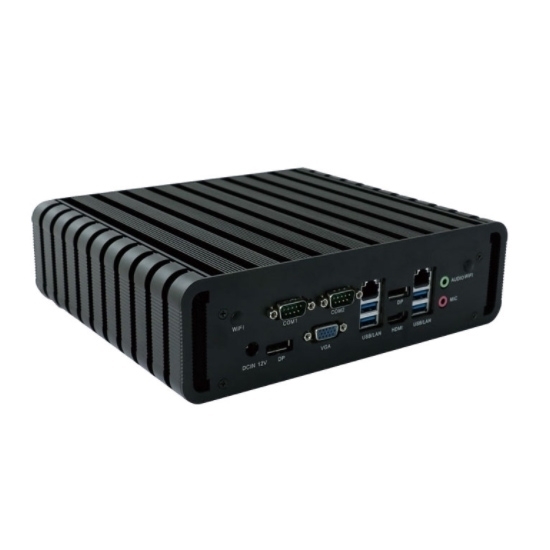

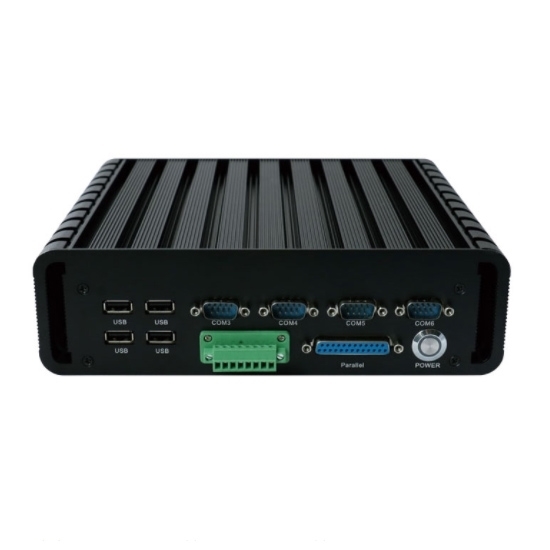

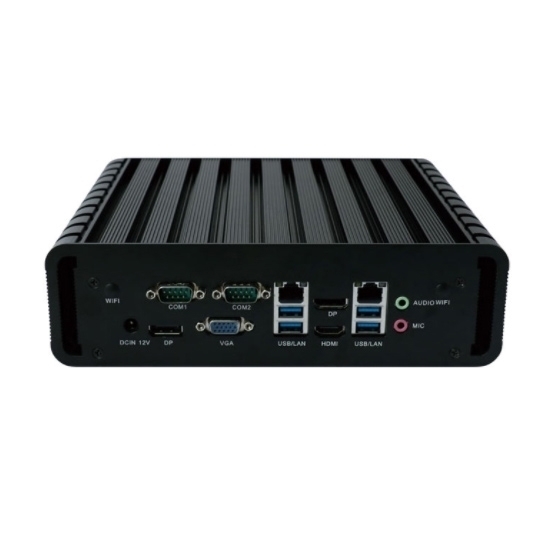

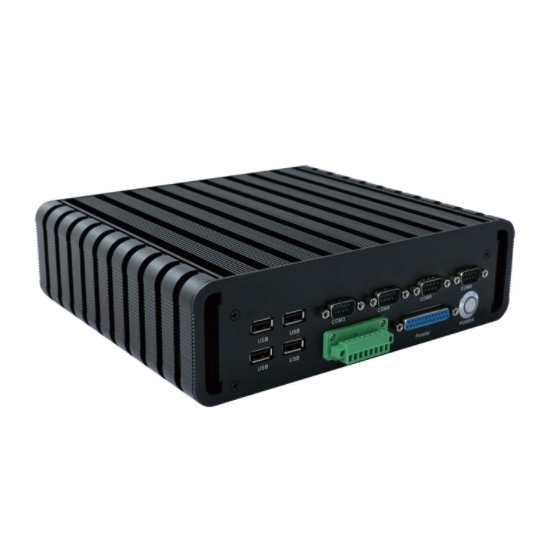

Fanless Embedded Industrial PC, Core I3 I5 I7, 6 COM, 2 LAN

0 reviews • Write a review

from

$1,213.49

Ex Tax: $1,213.49

Stock: In Stock
Model: RDDLZ-IPC-QM87
Weight: 1.00
SKU: RDDLZ-IPC-QM87

Available Options

Usable System

CPU

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

NOT AVAILABLE! For the Updated version, Please go to the page: Mini Embedded Fanless Industrial PC, Core i3 i5 i7, Linux.

Industrial PC Features

Haswell Dual-core i5 4200M 2.5G, QM87 chipset, support core i3 4000M and core i7 4702MQ
1*VGA+1*HD+2*DP+4*USB2.0+4*USB3.0+2*intel LAN+6*COM (2*COM can support RS422/485)
High quality fanless pure aluminum mini itx case
2*SATA, 1*Mini-PCIE, support wifi/3G, 1*Mini-SATA
1*intel L210, 1*intel L217 Lan (with V-Pro support)
Support DC 12-19V wide voltage power supply
Support windows 7/8/10, Linux

Specification

Model	RDDLZ-IBOXQM87
Case	High quality fanless pure aluminum
CPU	Adopt core i5 4200M, can support core i3 4000M and i7 4702MQ
Chipeset	Adopt Intel QM87 express chipset
RAM	2*SODIMM DDR3, support Max 16G
Storage	1* MINISATA, 4*SATA
Usable System	Win7/ win10/ Linux (Centos or Ubuntu) system
Lan	1intel L210, 1intel L217 Lan
Graphic Card	Integrated HD graphic card 4600/4400, support 1VGA, 1HD, 2DP, 1LVDS display input
BIOS	AMI 32Mbit SMT Flash ROM
I/O	4*USB2.0
	4*USB3.0
	1*DC-IN 12V-19V
	2*RJ-45 lan
	1*VGA
	1*HD
	1*LPT
	1*GPIO pin header
	6COM (2COM support RS422/485)
	1*Audio
	1*Mic
Buit-in I/O	1*PWROUT
	1*24 bit dual channel LVDS
	4*group USB pin heade
	1*TPM pin header
	1*PCIE 16 X
WDT	Support hardware reset (256 level, 0~255 sec)
Expansion Slot	1Mini-PCIE (support wifi/3G), 1Mini-SATA
Power Supply	DC 12~19V
Temp	0°C~ 60°C
Humidity	10% - 90% relative humidity, non-condensing
Dimension	23720468mm (LWH)
Weight	6 Kg

Note:
*Packing list included PC + Power Adapter + Power Cord + CD Driver.
*RAM, SSD, HDD, WiFi, Bluetooth are optional, if necessary, please contact customer service for your configuration.
*Need more fanless industrial PCs models information, please check the Model Brochure.

Industrial PC Rich Interfaces
Applications
Tips:
IPCs often run in harsh environments and require higher data security. Therefore, IPCs are usually designed for special applications such as reinforcement, dust protection, moisture protection, corrosion protection, and radiation protection.
Industrial PC carries out real-time online detection and control of the industrial production process, gives rapid response to the change of the working condition, and promptly carries out the acquisition and output adjustment (the watchdog function is not available by the ordinary PC). It is reset in distress and ensures the normal operation of the system. Because of the use of the floor +CPU card structure, industrial PC has a strong input and output function, and can expand 20 cards at most. It can be connected with various peripherals, board cards such as road controller, video monitoring system, vehicle detection instrument and so on to complete various tasks.
