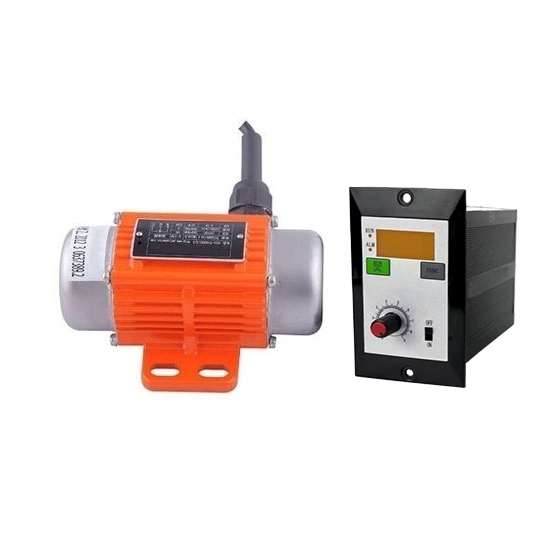

65W 24 Volt DC Brushless Vibrating Electric Motor With Controller

0 reviews • Write a review

from

$564.41

Ex Tax: $564.41

Stock: In Stock
Model: RDDLZ-65DCBVM-244
Weight: 1.00
SKU: RDDLZ-65DCBVM-244

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

65W micro brushless vibration electric motor, operating at 24 volt DC with a rated speed of 7000rpm and a current of 3.5A. Its small design and high efficiency make it an ideal choice for material handling, compaction, and other industrial processes.

Features

65W 24V DC brushless vibrating electric motor with a variable speed controller achieves stable operation and can adjust the speed of rotation.
High efficiency and energy saving, saving 40-60% of electricity compared to ordinary motors. Long service life, 5 times that of ordinary motors.
Small industrial DC vibration motor provides accurate and fast regulator positioning and analog output.
It is resistant to deformation and oxidation and can withstand long-term high-speed operation.
Special voltage and speed can be customized, please contact us.

Specifications

Model		RDDLZ-65DCBVM-244
Voltage		24V
Rated Speed		7000rpm
Current		3.5A
Power		65W
Force		1.8 kN (Test at no load) Note: In practical application, the seismic force may be reduced by about 30%.
Protection Rank		IP65 (Dustproof and Waterproof)
Insulation Grade		F (The Highest Heat Resistant Temperature is 155℃)
Cooling Mode		Natural Cooling (IC410)
Working System		S1 (Continuous Duty)
Weight		1.8 kg
Dimensions		146mm x 110mm x 69mm
Frame No		4
Certificate		CE

Notes

+/- 20% voltage tolerance.
Max/Minimum speed range that can be achieved via potentiometer: 1000-7000rpm.

Dimension (Unit: mm)

Frame No	A	B	C	D	E	F	G	H	I	J	K	L	M	N
4	146	110	68.5	9	60.4	27.5	45	27.5	30.5	91.5	9	17.5	55	M-16

Internal Structure

Applications

RDDLZ 65W 24V 7000rpm micro DC brushless vibration electric motor is widely used in mining, metallurgy, coal, electric power, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder sieving, food machinery, etc.

Tips: What is an industrial vibration electric motor?

An industrial vibration electric motor is a specialized motor designed to generate controlled vibrations for various industrial applications. These motors are used in machinery and equipment where vibration is required to aid in processes like material handling, sorting, compaction, or testing.

Typically powered by either AC or DC electricity, these motors are built with robust materials such as aluminum or steel to withstand harsh environments. They work by using mechanisms like eccentric masses or linear actuators to create vibrations, ensuring efficient movement and processing of materials. Industrial vibration motors are durable, low-maintenance, and often come with controllers for precise speed and vibration control, making them essential for applications such as vibrating feeders, screens, or conveyors in industries like mining, food processing, and manufacturing.
