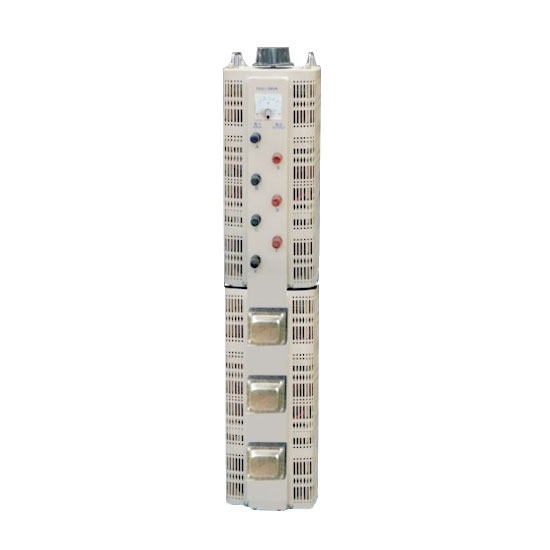

30 KVA 3 Phase Variac Transformer

0 reviews • Write a review

from

$3,254.89

Ex Tax: $3,254.89

Stock: In Stock
Model: RDDLZ-VVR-TH30
Weight: 1.00
SKU: RDDLZ-VVR-TH30

Available Options

Short Description

Output Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

40A 3 phase variac voltage regulator has the functions of voltage regulation, temperature control, speed regulation, dimming and power control. The voltage output meter is responsive and the scale display is accurate.

Specification

Model: RDDLZ-VVR-TH30
Rated Power: 30 kVA
Input Voltage: 380V
Output Voltage: 0~430V, 0~500V
Frequency: 50/60 Hz
Rated Full Offset Current: 40A
Insulation Resistance: ≥5 MΩ
Pressure Resistance: 2000 V/1min
Weight: 100 kg
Dimension: 345mm x 400mm x 1100mm
Certificate: CE

Wiring method

Installation and use of three-phase variac transformer should be noted: the wiring must be firmly pressed, there can be no loose.

Three-phase variac transformer is a three-phase four-wire system, the input side should be connected to the zero line, when using the regulator to adjust the voltage should be adjusted from 0V to high voltage, the output voltage is different corresponding to the load power is different.

3 Phase 30 kVA Variac Voltage Regulator Details

Tips: How does a three phase variac transformer work?

The working principle of the three-phase variac transformer is to connect a four-layer three-terminal semiconductor device between the power supply and the load, and with the corresponding trigger control circuit board, the voltage, current and power applied to the load can be adjusted. It is mainly used for heating power adjustment of various electric heating devices. It can be adjusted "manually" or cooperated with electric regulating instruments, intelligent regulating instruments, PLC and computer control systems to realize constant value or program control of heating temperature.
