3" Pneumatic Angle Seat Valve, 2 Way, 2 Position

0 reviews • Write a review

from

$479.39

Ex Tax: $479.39

Stock: In Stock
Model: RDDLZ-ANGLE-80
Weight: 1.00
SKU: RDDLZ-ANGLE-80

Available Options

Short Description

Actuator Material

Valve Status

Pipe Thread Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High performance and low price pneumatic angle seat valve is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

Model: RDDLZ-KLJZF-DN80
Pipe Thread Type: 3 inch (DN80), ZG, G or NPT
Working Medium: Air, Water, Oil, Gas, Steam
Pneumatic Fitting Type: ZG 1/4"
Medium Temperature: -10℃~+180℃
Ambient Temperature: -10℃~+60℃
Nominal Pressure: 1.6MPa
Air Pressure: 0.4~0.8MPa
Valve Body Material: Stainless Steel (SS304, SS316)
Sealing Material: PTFE
Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

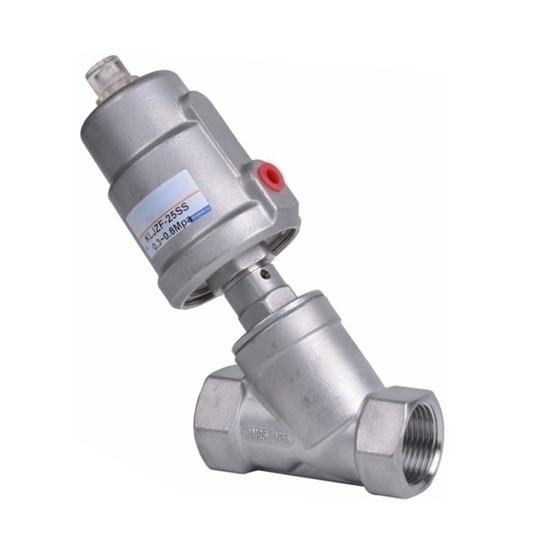

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Actuator	D	R	P	G	H	L	L1	T
100	114	63	ZG1/8"	ZG3"	320	280	220	33

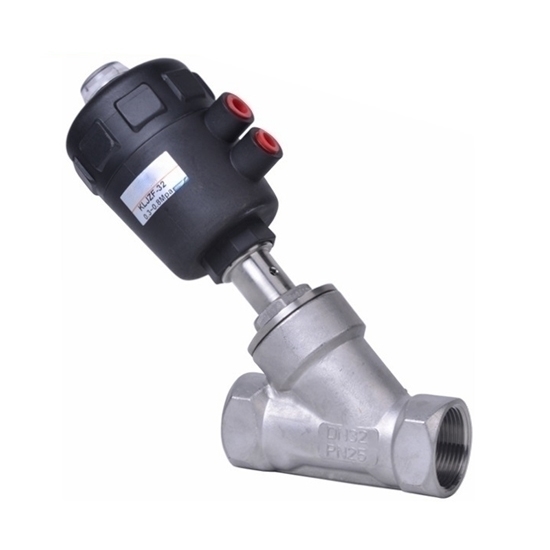

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Actuator	D	A	B	C	φE	F	G	H
100	ZG3"	220	368	30	126	73	140	340

Tips: Troubleshooting for pneumatic angle seat valve leakage

There is a gap between the valve core and the valve seat when the valve is fully closed, resulting in a large flow of medium when the valve is fully closed, and the controlled parameters are difficult to stabilize.
Improper adjustment of the stroke or long-term use of the spool will cause wear and corrosion of the head of the spool.
The valve core is corroded by the medium. The valve core should be taken out for grinding, and if it is serious, a new valve core should be replaced.
The valve seat is corroded by the medium, and the seal between the valve seat and the valve body is damaged. The seat should be removed for lapping and replace the gasket.
There are welding of slag, rust, slag and other dirt and blockage in the valve. The angle seat valve should be disassembled for cleaning.
