16" Electric Lug Type Butterfly Valve

16" Electric Lug Type Butterfly Valve
16" Electric Lug Type Butterfly Valve
16" Electric Lug Type Butterfly Valve
16" Electric Lug Type Butterfly Valve
16" Electric Lug Type Butterfly Valve
16" Electric Lug Type Butterfly Valve
16" Electric Lug Type Butterfly Valve
0 reviews • Write a review
from
$2,608.46
Ex Tax: $2,608.46
  • Stock: In Stock
  • Model: RDDLZ-HK60-DMS400-125
  • Weight: 1.00
  • SKU: RDDLZ-HK60-DMS400-125

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: 16 inch (DN400) butterfly valve is not available now! 14 inch (DN350), 10 inch (DN250) and 8 inch (DN200) valve are for sale.

*This electric butterfly valve cannot be used for drinking water.

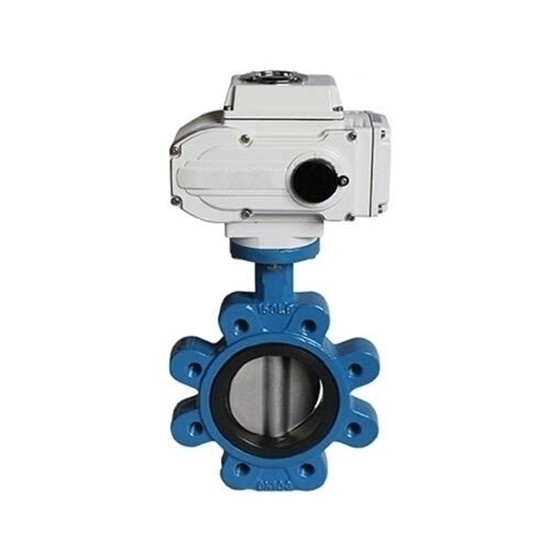

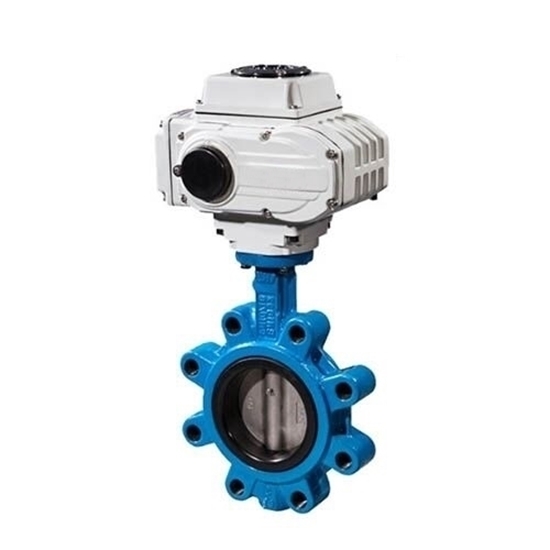

16 inch (DN400) lug type butterfly valve equipped with 125 electric actuator, works at -30°C~60°C. Compact structure, easy to maintain and install. Good performance for flow control, long service life.


Electuator Specification

ModelRDDLZ-HK60-DMS400-125
Protection ClassIP65
Ambient Temp.-30°C~60°C
Installation AngleAny
Electrical ConnectionG1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire
Voltage OptionalAC 110V, AC 220V, AC 380V, DC 24V, AC 24V
Corresponding Valve Port Size16" (DN400, 400mm)
05 Actuator Control CircuitA Type (Normalized Form): ON/OFF Type with Light Indicator Signal Feedback (Default 90° opening and closing)
VoltageAC 220VDC 24VAC 380V
Torque Output1250Nm1300Nm1300Nm
90° Cycle Time90S32S50S
Working Current1.03A1.2A0.65A
Drive Motor210W30W90W



Body and Valve Specification

BodyValve components
Corresponding Valve Port Size16" (DN400, 400mm)Seating MaterialNBR, EPDM, VITON (Default PTFE)
Body MaterialCast ironDisc MaterialStainless Steel
End ConnectionWafer FlangeStem MaterialStainless Steel
Operating Pressure< 1.6MPaApplicable MediaControl of Water, Air, Gas, Oil, Liquid, Steam
StructureMidline Structure/ A-type

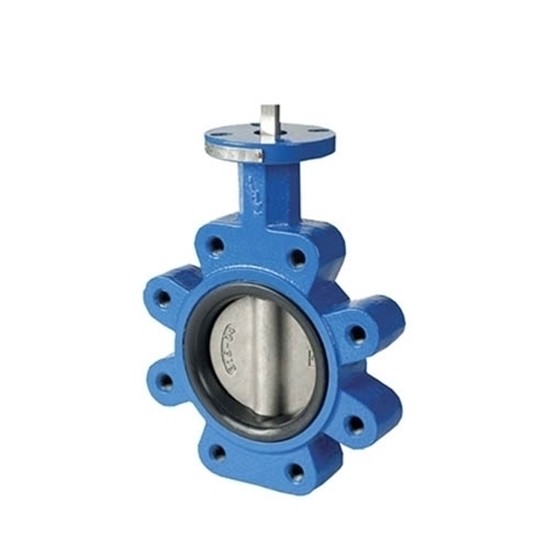

Butterfly Construction



DimensionInchDD1D2L
DN40016"389.6 mm482 mm525 mm86 mm


Actuator Dimension (mm)

Details

Features

  1. Remote controlled bf valve switch regulation and MODBUS, PROFIBUS Field Bus.
  2. Body made of hard aluminum alloy, which is treated by hard anodic oxidization and coated by Polyester powder with great corrosion resistance.
  3. Motor fully enclosed cage type motor is small in size and inertia, large in torque. Insulation class is F grade which can prevent motor over-heating.
  4. Manual Override energy-saving of wafer type butterfly valve with lug type, used for manual operation when electricity is off. In automatic operation, it can be fixed inside the clip for easy operation.
  5. Wafer butterfly valve indicator assembled on center axis, valve position can be observed. Outside mirror design facilitates position observation and prevents water drops accumulation.
  6. Lug type butterfly valve high sealing performance, standard protection class is IP67.
  7. Mechanical and electronic position limit switches, controlled by cam. Position set easily and accurately without any influence by handle.
  8. Electric actuator valve with lug type, compact structure, miniature size, long service life, good sealing performance, easy maintenance, quick detachable and installation.
  9. Explosion proof construction EXd II BT4.

Note

If you need a wafer type butterfly valve with lug type unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.

We also provide other bf valve for home. If you have any questions, please feel free to contact us.

Tips: What structure traits of lug type butterfly valve?

  1. The unique design of three-way eccentricity enables frictionless transmission between the sealing surfaces and prolongs the service life of the valve.

  2. The ingenious wedge-shaped design enables the valve to have an automatic sealing function that gets tighter and tighter, and the sealing surface has compensation and zero leakage.

  3. Small size, light weight, light operation, easy to install.

  4. Pneumatic and electric devices can be configured according to user requirements to meet the needs of remote control and program control.

  5. The material of replacement parts can be applied to various media, and the lining can be anti-corrosion (lining F46, GXPP, PO, etc.).
