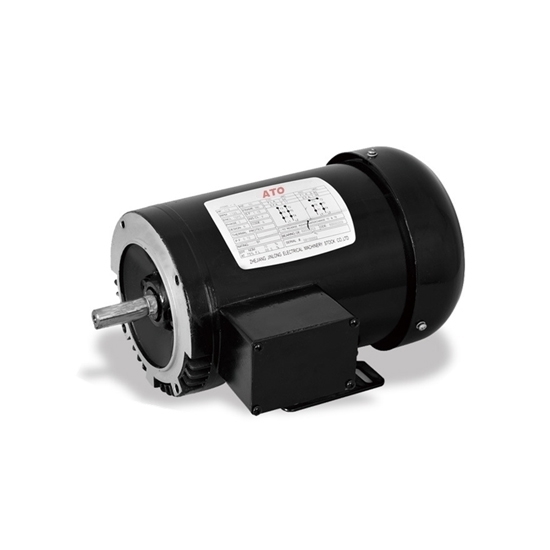

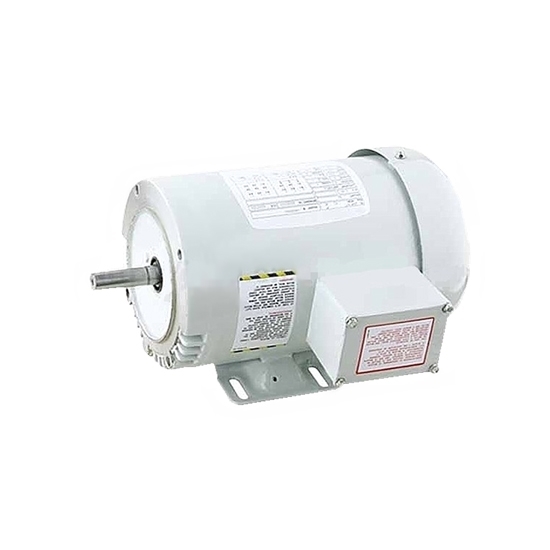

3 Hp NEMA AC Induction Motor, Three Phase 230/460V, ODP/TEFC

0 reviews • Write a review

from

$1,006.35

Ex Tax: $1,006.35

Stock: In Stock
Model: RDDLZ-IM-RT32
Weight: 1.00
SKU: RDDLZ-IM-RT32

Available Options

Short Description

Enclosure Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This dependable and powerful three phase RDDLZ AC electric motor with lower cost, 3 hp output power, ODP/ TEFC enclosure, class F insulation class, providing max speed to 3450rpm, designed for pumps, fans, compressors and other general purpose applications where contaminants are minimal.

3 hp 3 phase AC Induction Motor Specification

Basics	Model	RDDLZRT32D11	RDDLZRT32T11
	Enclosure	ODP	TEFC
	Type	General Purpose Asynchronous Motor
	Item Weight	83 Ibs
	Motor Length	16.5 inch	14.6 inch
	Frame	182TC Frame	145TC Frame
	Design	NEMA Design B
	Certification	CE, UL
	Motor Material	Roll Steel
Technical Parameters	Service Factor	1.15	1.25
	Horsepower	3 hp
	Rated Frequency	60 Hz
	Phase	Three Phase
	Pole	2 pole
	Voltage	230/460V AC
	Full Load Amps	7.26/3.63A	7.17/3.59A
	Speed	3450 RPM
	Efficiency	86.5%
	Duty	Continuous
	Isulation Class	Class F
	Protection Class	IP54/ IP55
	Mounting Method	C Face, Footed
Environment	Ambient temperature	-15℃≤θ≤40℃
	Altitude	Altitude should be lower than 1000 meters above sea level

3 hp 3 phase AC Induction Motor Dimension

Unit: inch

Frame Size	AB	BA	Max A	Max B	Max BB	Max BD	C	D	E	2F	H	N-W	O	P	R	S	U	Min ES	Min AA	AH	BF	BC	AJ	AK	Min V
145TC	5.6	2.75	7	6.18	0.16	6.5	14.6	3.5	2.75	4	0.34	2.25	6.7	7.08	0.771	0.188	0.875	1.41	3/4	2.12	1/2-13	+0.12	5.875	4.5	2
182TC	7.2	3.5	8.5	6.5	0.25	9	16.5	4.5	3.75	4.5	0.41	2.75	9.25	9.65	0.986	0.25	1.125	1.78	3/4	2.62	1/2-13	+0.12	7.25	8.5	2.5

NEMA AC Induction Motor Connection Diagram

Details

Tips: Why The induction motor frame is electrified?
The reason for the motor frame with electricity may be that the motor shell is not connected with the ground or has been damaged. If the grounding equipment is damaged, the motor winding is affected with the damp and the insulation is aged. As a result, the current may leak out due to poor insulation. Or the outgoing line has been connected with the motor enclosure.
For this problem, first of all, check if the motor grounding equipment is perfect and reconnect it with the ground. If the motor get humid, it needs to be dried. The winding with seriously aged insulation should be exchanged.
