18 Hp 1500 Rpm Spiral Bevel Right Angle Gearbox, 1:1/ 2:1

0 reviews • Write a review

from

$879.85

Ex Tax: $879.85

Stock: In Stock
Model: RDDLZ-RAGB-181500
Weight: 1.00
SKU: RDDLZ-RAGB-181500

Available Options

Installation Method

Gear Ratio

Speed

Shaft Direction Code

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

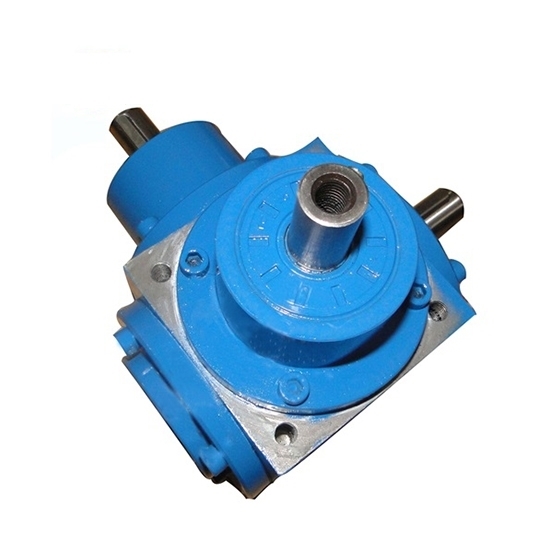

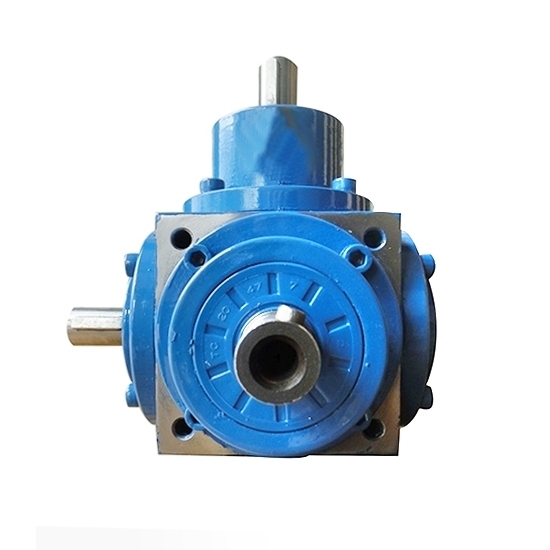

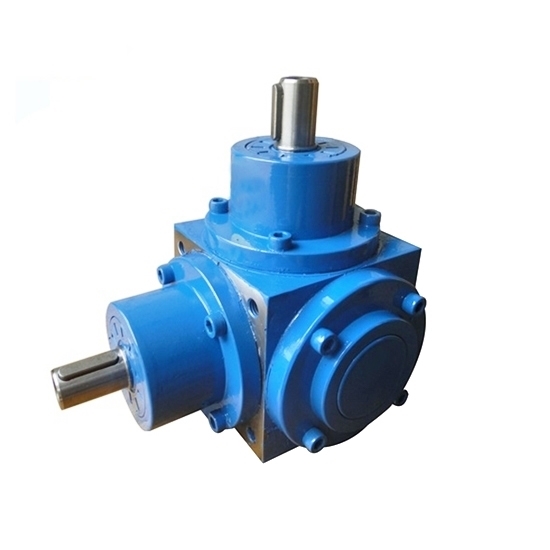

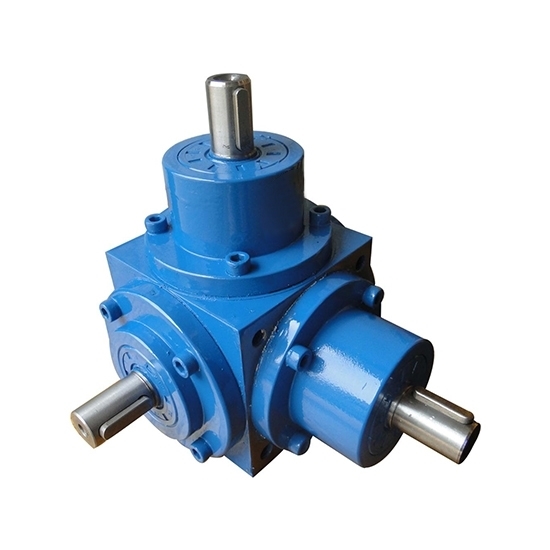

Buy spiral bevel right angle gearbox at low price. Gear ratio 1:1 or 2:1 for selection, maximum input power 18 hp, speed 50~1500 rpm, optional 1/2/3/4 ways, matching various input and output shafts directions. Compact right angle gear reducer for 90 degree steering and reduction.

Features

Spiral bevel gears, bearings, gear box, input shaft, output shaft and other components consist the right angle gearbox.
The spiral bevel right angle gearbox is also a steering gear box, which 90° changes the transmission direction. Small mounting size, high torque, high speed.
Spiral bevel gears are made of alloy steel, which is hardened by carburizing, and has high rigidity and wear resistance. The bearing is a tapered roller bearing, which can withstand greater torque.
The gear box material is cast iron. The input shaft and output shaft are made of #45 steel, which has been carburized and heat treated.
Spiral bevel 90 degree gearbox are used in textile industry, food processing machinery, conveying machinery, packaging machinery, automation machinery, etc.

Basic Specification

Model	RDDLZ-RNV-120
Gear Ratio	1:1, 2:1
Max. Horsepower	18 hp
Max. Speed	1500 rpm
Transmission Efficiency	95%
Gear Oil	HD320~680
Ambient Temperature	-20℃ ~ +80℃
Noise	＜ 80dB
Weight	14 kg

Transmission Specification

Input Speed 1500 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	18	86
2:1	8	38.5
Input Speed 1000 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	13.52	96.83
2:1	5.9	42.26
Input Speed 750 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	11.34	108.29
2:1	4.7	44.88
Input Speed 500 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	8.45	121.04
2:1	3.38	48.42
Input Speed 250 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	4.52	129.49
2:1	1.8	51.57
Input Speed 50 rpm
Gear Ratio	Input Horsepower (hp)	Torque (N.m)
1:1	0.96	137.51
2:1	0.38	54.43

Spiral Bevel Right Angle Gearbox Installation Methods

Spiral Bevel Right Angle Gearbox Shafts Directions

Direction Code	Definition
I-LR	1 input shaft + 1 left output shaft + 1 right output shaft
I-R	1 input shaft + 1 right output shaft
I-L	1 input shaft + 1 left output shaft
I-LR-O	1 input shaft + 1 left output shaft + 1 right output shaft, opposite direction
I-R-O	1 input shaft + 1 right output shaft, opposite direction
I-L-O	1 input shaft + 1 left output shaft, opposite direction
I-I-LR	2 input shafts + 1 left output shaft + 1 right output shaft
I-I-R	2 input shafts + 1 right output shaft
I-I-L	2 input shafts + 1 left output shaft
I-I-LR-O	2 input shafts + 1 left output shaft + 1 right output shaft, opposite direction
I-I-R-O	2 input shafts + 1 right output shaft, opposite direction
I-I-L-O	2 input shafts + 1 left output shaft, opposite direction

Tips: How to install 18 hp spiral bevel right angle gearbox correctly?

The 18 hp spiral bevel right angle gearbox must be installed on a firm, flat bottom plate. It is recommended that the flatness be within 0.254mm. Make sure that the mounting pads of right angle gearbox are evenly placed on the bottom plate. It is best to use gaskets to avoid damage to housing, otherwise it may change the gear mesh or cause premature damage and deformation of the bearing.
18 hp spiral bevel right angle gearbox can be driven by direct coupling, flexible coupling or V-belt drive. The coupling can be installed with less force. The transmission system must be accurately aligned in accordance with the manufacturer's regulations to limit the operating load and minimize the thrust load on the gear drive shaft.
The V-belt drive must be installed close to the bearing seat to minimize excessive overhanging load and avoid premature bearing damage.
The pulley must be installed correctly. Overtightening may cause the shaft to deviate from its normal position and cause internal damage. When installing the 18 hp spiral bevel right angle gearbox, excessive vibration may be caused, which may cause damage or breakage of the shaft.
