15 Hp 1450 Rpm Spiral Bevel Right Angle Gearbox, 1:1~5:1

0 reviews • Write a review

from

$899.69

Ex Tax: $899.69

Stock: In Stock
Model: RDDLZ-RAGB-151450
Weight: 1.00
SKU: RDDLZ-RAGB-151450

Available Options

Gear Ratio

Speed

Shaft Direction Code

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

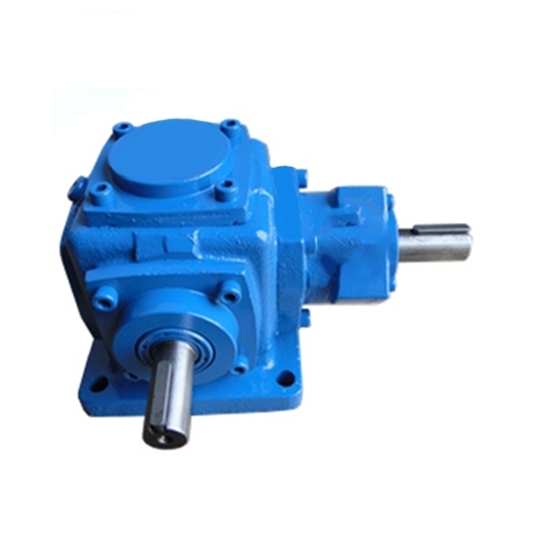

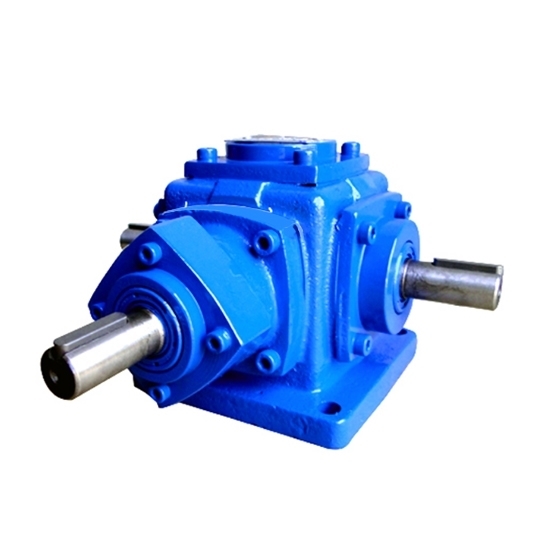

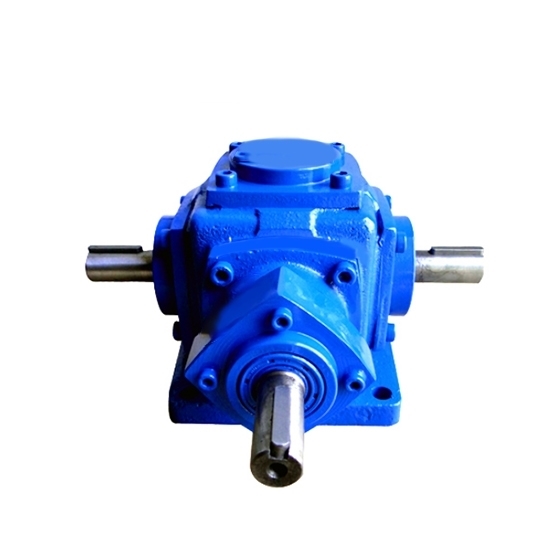

Spiral bevel right angle gearboxes for sale, which are used in 90 degree steering and reduction. Ratio 1:1 to 5:1 for selection, max speed 1450 rpm, max input power 15 hp, 1/2/3/4 ways output shafts with optional directions. Compact right angle gearbox reducer, the higher the torque, the lower the rpm.

Features

The right angle gearbox uses spiral bevel gears inside. Gears are installed vertically to change the transmission direction at 90°.
Spiral bevel gear is made of alloy steel, which has been carburized and hardened, and has high rigidity and wear resistance.
The spiral bevel right angle gear box can change the transmission direction and steering in all directions, which can be used in any mechanical structure and application.
Compared with the traditional worm gear reducer, the spiral bevel right angle gearbox can provide smoother running ability and larger transmission torque.

Basic Specification

Model	RDDLZ-RN-6M
Gear Ratio	1:1, 1.5:1, 2:1, 2.5:1, 3:1, 4:1, 5:1
Max. Horsepower	15 hp
Max. Speed	1450 rpm
Transmission Efficiency	95%
Gear Oil	HD320~680
Ambient Temperature	-20℃ ~ +80℃
Noise	＜ 80dB
Weight	20.6 kg

Transmission Specification

Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
1:1	1450	96	15
	1150	103	12.7
	870	113	10.5
	580	119	7.35
	400	122	5.20
	300	123	3.93
	200	124	2.66
	100	127	1.36
	10	132	0.141
Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
1.5:1	1450	117	12.1
	1150	122	9.96
	870	123	7.66
	580	126	5.23
	400	128	3.66
	300	129	2.77
	200	131	1.87
	100	134	0.957
	10	139	0.099
Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
2:1	1450	102	7.90
	1150	104	6.39
	870	105	4.88
	580	108	3.34
	400	109	2.33
	300	110	1.76
	200	111	1.18
	100	114	0.608
	10	116	0.062
Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
2.5:1	1450	96.2	5.97
	1150	97.2	4.78
	870	99.0	3.68
	580	100.0	2.48
	400	100.9	1.73
	300	102.9	1.32
	200	103.9	0.888
	100	104.9	0.448
	10	107.8	0.046
Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
3:1	1450	93.6	4.84
	1150	94.8	3.88
	870	95.9	2.97
	580	97.6	2.02
	400	99.0	1.41
	300	100	1.07
	200	100	0.712
	100	102	0.363
	10	104	0.037
Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
4:1	1450	80.6	3.12
	1150	81.5	2.50
	870	82.4	1.92
	580	84.1	1.30
	400	85.1	0.91
	300	86.1	0.69
	200	86.0	0.46
	100	87.7	0.23
	10	89.3	0.02
Gear Ratio	Input Speed (rpm)	Torque (N.m)	Input Horsepower (hp)
5:1	1450	52.0	1.61
	1150	52.5	1.29
	870	53.2	0.99
	580	54.2	0.67
	400	54.9	0.47
	300	55.5	0.36
	200	55.4	0.24
	100	56.5	0.12
	10	57.6	0.01

Spiral Bevel Right Angle Gearbox Shafts Directions

Direction Code	Definition
I	Input shaft
L	Left output haft
R	Right output shaft
LR	Left and right output shaft
O	Opposite direction
D	Downward: input shaft is below the base
U	Upward: input shaft is above the base

Tips: Maintenance for 15 hp spiral bevel right angle gearbox.

Before doing maintenance for the 15 hp spiral bevel right angle gearbox, disconnect power prior and do not bypass or inactivate any safety or protective device. Lock out and tag the power supply to prevent unexpected application of power.
Routinely inspect mounting bolts, couplers, or other power transmitting parts of the 15 hp spiral bevel right angle gearbox, to ensure all parts are firmly anchored. Keep shafts and vent plugs (when included) clean to prevent foreign particles from entering seals or housing.
Inspect daily for any oil leaks and any unusual noises. Inspect weekly for end play in shafts. Inspect belt drive tension after the first ten hours of operation and periodically thereafter.
Check the oil level every 24 hours of operation for the 15 hp spiral bevel right angle gearbox.
Change the oil when the gear drive has been in service for 50 hours. Routine oil change intervals will vary for each particular installation depending on the severity of the environment.
Normal changes should occur between 1000 and 3000 hours of operation. The longest life at continuous service will be realized when the oil temperature does not exceed +85℃.
