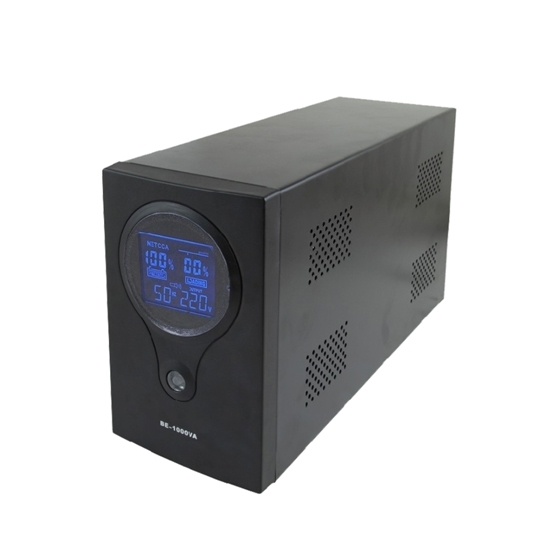

5000VA 120V/220V UPS Backup Uninterruptible Power Supply

0 reviews • Write a review

from

$1,820.55

Ex Tax: $1,820.55

Stock: In Stock
Model: RDDLZ-UPS-5K
Weight: 1.00
SKU: RDDLZ-UPS-5K

Available Options

Short Description

Battery

Input & Output Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Applications

5kVA/4000 Watts UPS battery backup provides uninterruptible power source for the loaded equipment or devices with optional input and output voltages of 220V/120V AC, and the reliable UPS is widely applied for personal computer, office equipment, test equipment, light system, safe alarm system, ray equipment, medical equipment, copymachine, numerical control machine tools, industrial automation equipment, color and drying equipment, Hi-Fi equipment etc.

5kVA UPS Specification

Basics	Model	RDDLZ-BE-5K
	Rated Capacity	5000VA/4000W
	Phase	Single Phase (L, N, G) * NOT support the split phase (L1, L2 + G) like USA standard.
	UPS Type	Line Interactive
	Weight	48kg
	Size	540270590mm
Input	Input Voltage Range	172-275V AC/ 85-135V AC
	Nominal Input Voltage	220V/230V/240V/110V/120V AC
	Input Frequency	45-65Hz
Output	Norminal Output Voltage	220V/120V AC
	Output Voltage Range (Normal Mode)	220V/120V AC±10%
	Output Voltage Range (Battery Mode)	220V/120V AC±10% (Modified Sine Wave)
	Output Frequency (Normal Mode)	Synchronized (Sine Wave)
	Output Frequency (Battery Mode)	50/60Hz±0.2%
	Wave Form	Modified Sine Wave
	Power Factor	0.9

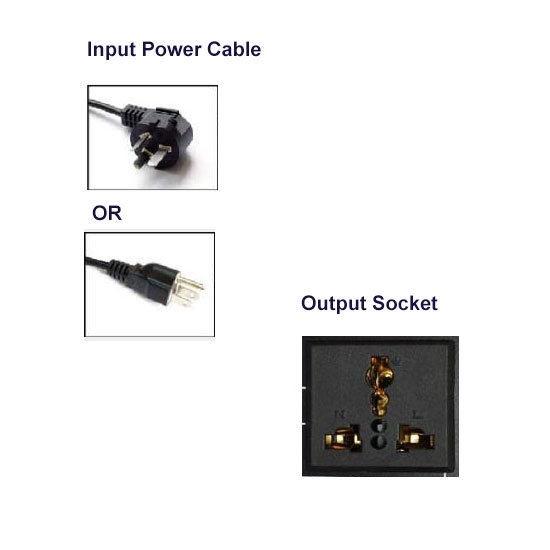

	Output Socket	Universal socket
Efficiency		>90%
Transfer Time		6-8ms
Batteries & Runtime	Battery Type	Maintenance-free lead-acid battery
	Battery Modules (NOT Included)	12V12Ah8pcs/96V (Battery size: 1509060mm)
	Backup Time (full/half load)	5 Minutes Backup time; for long backup mode, it depends on outside battery
	Typical Charge Time	<12 hours (90%)
Display Status		LCD (NORMAL, FAULT, BATTERY, CHARGE, OVERLOAD)
Protection	Overload Protection	Automatic shut down when overload is within 110~130%
		Shut down after 300ms when above 130%
Others	Peak Ratio for Load	3:1 (Max.)
	Distortion Rate (full load) Linear Load	<3%
	Distortion Rate (full load) Non-linear Load	<6%
	Communication Software	NETCCA POWER
Operating Environment	Working Temperature	0°C~40°C
	Relative Humidity	20~90% Non-condensing

Note:

1. The UPS input/output configuration is 1-phase (L, N, G) like Europe standard, NOT support the split phase (L1, L2 + G) like USA standard.

2. If you need other output voltage range, please contact us.

Details

Tips: Maintenance of uninterruptible power supply (UPS)

1. Maintain the appropriate ambient temperature
The important factors affecting the life service of battery is ambient temperature. Although the increase in temperature increases the discharge capacity of the battery, the life service of the battery is greatly shortened.

2. Regular charging and discharging
The battery will remain in the floating charge environment for a long time if it is in the use environment of high electric quality and few power failures, thus causing the decrease of the activity of mutual transformation of battery chemical energy and electric energy, acceleration of its aging and shortening of its life service. Therefore, it should be discharged completely every 2-3 months. The discharging time depends on the battery capacity and the load. After the discharging of a full load, the battery should be charged for at 8 hours as provided.

3. Communication function
Most large and medium UPS have operational performance with microcomputer communication and program control.The corresponding software is installed on the microcomputer, which is connected to UPS by series or parallel port. You can use microcomputer to communicate with UPS during the operation of this procedure.Generally, it has the functions of information inquiry, parameter setting, timing setting, automatic shutdown and alarm. It is convenient for the use management of UPS power and battery through these intelligent operations.

4. Timely replacement of waste or bad battery
In the continuous operation of UPS, due to the difference in performance and quality, it is inevitable that the performance of individual batteries will decline, and the storage capacity will not meet the requirements.When a battery or some batteries are damaged in the battery pack, the maintenance staff should check and test each battery to remove the damaged battery. The same type battery of the same manufacturer should be replaced. The acid battery, sealing the battery, or batteries of different specifications are not allowed to be used together.
