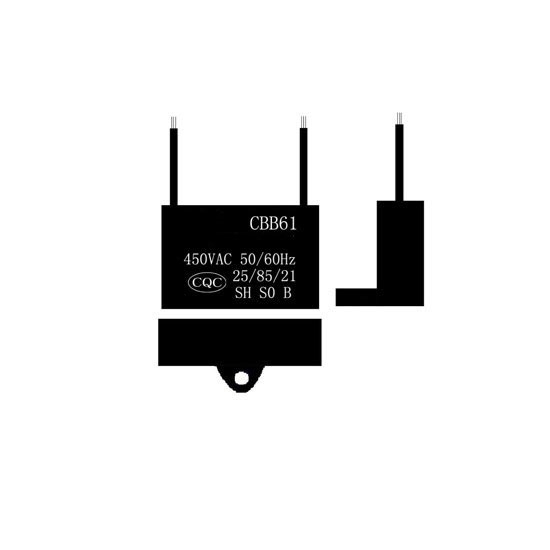

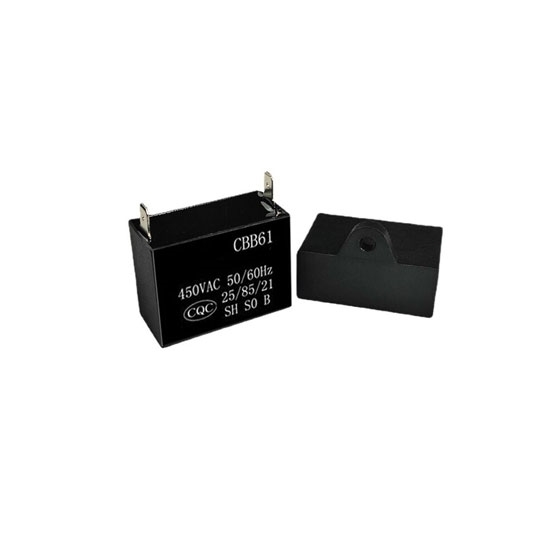

3.5μF 450V Ceiling Fan Capacitor

0 reviews • Write a review

from

$2.39

Ex Tax: $2.39

Stock: In Stock
Model: RDDLZ-FC-CBB61-035
Weight: 1.00
SKU: RDDLZ-FC-CBB61-035

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 wire ceiling fan capacitor rated voltage AC 450V, 3.5mfd capacity, capacitance tolerance 5%, good frequency characteristics, high reliability, for the AC power supply of various appliances to start and run.

Specification

Model: RDDLZ-FC-CBB61-035
Capacity: 3.5μF
Rated Voltage: 450V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/105/21
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 38(W) x 18.5(L) x 29(H)mm
Certificate: CE, CQC

3.5μF Ceiling Fan Capacitor Wiring Diagram

Ceiling fan capacitor details

Tips: What is capacitance?

Capacitance (or capacitance) is a physical quantity that expresses the capacitor's ability to hold an electric charge. Physically speaking, capacitance is a static charge storage medium, and it is possible that the charge will exist permanently, which is its characteristic. It has a wide range of uses, and it is an indispensable electronic component in the field of electronics and electric power. It is mainly used in power supply filtering, signal filtering, signal coupling, resonance, filtering, compensation, charging and discharging, energy storage, DC isolation and other circuits.
