3/4" Pneumatic Angle Seat Valve, 2 Way, 2 Position

0 reviews • Write a review

from

$111.19

Ex Tax: $111.19

Stock: In Stock
Model: RDDLZ-ANGLE-20
Weight: 1.00
SKU: RDDLZ-ANGLE-20

Available Options

Short Description

Actuator Material

Valve Status

Pipe Thread Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

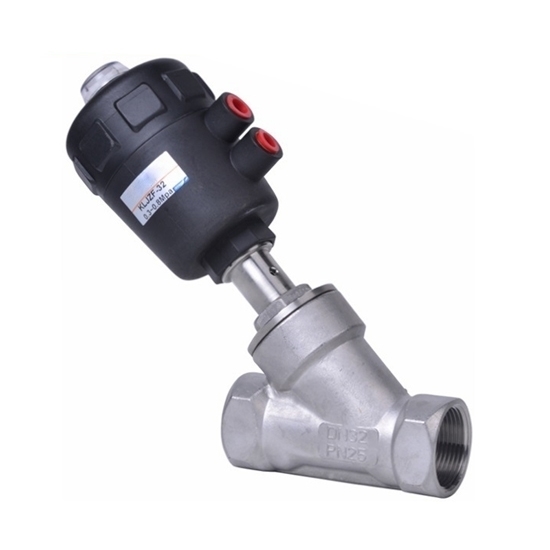

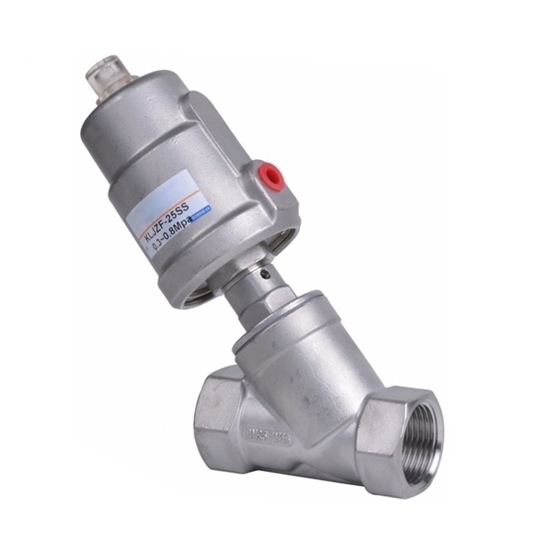

Compact size pneumatic angle seat valve is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

Model: RDDLZ-KLJZF-DN20
Pipe Thread Type: 3/4 inch (DN20), ZG, G or NPT
Working Medium: Air, Water, Oil, Gas, Steam
Pneumatic Fitting Type: ZG 1/4"
Medium Temperature: -10℃~+180℃
Ambient Temperature: -10℃~+60℃
Nominal Pressure: 1.6MPa
Air Pressure: 0.4~0.8MPa
Valve Body Material: Stainless Steel (SS304, SS316)
Sealing Material: PTFE
Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Actuator	D	R	P	G	H	L	L1	T
50	62	33.5	ZG1/8"	ZG3/4"	138	144	75	16

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Actuator	D	A	B	C	φE	F	G	H
50	ZG3/4"	95	180	16	64	44	112	145

Tips: What are the connection methods of pneumatic angle seat valve?

There are four types of connection methods of pneumatic angle seat valve, including tri-clamp connection, threaded connection, flanged connection, welding connection, but the most widely used method is threaded connection.

Tri-clamp connection: Now the light industrial automation assembly line equipment is developing rapidly, the pressure range tri-clamp angle seat valve is basically low, generally controlled at 0.6~1.6mpa, which is convenient for technical installation and disassembly.
Threaded connection: It refers to the installation of internal thread screws at both ends of the angle seat valve, which is basically used for operation at high temperature, and the temperature resistance is up to +300 degrees Celsius.
Flange connection: It means that the two ends of the angle seat valve are connected by flanges, and the scope of use is mainly engineering pipelines to control the flow.
Welding connection: It means that the two ends of the angle seat valve are directly welded and connected to the corresponding pipe port.
