250KV Brushless Motor For Drone, 6S/12S

0 reviews • Write a review

from

$241.49

Ex Tax: $241.49

Stock: In Stock
Model: RDDLZ-BDM-250
Weight: 1.00
SKU: RDDLZ-BDM-250

Available Options

Speed

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

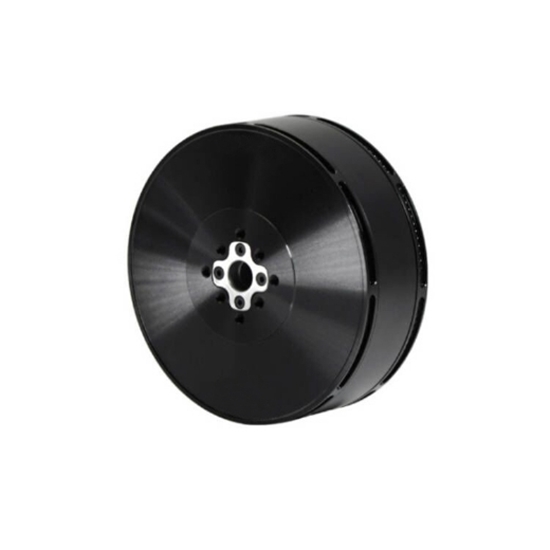

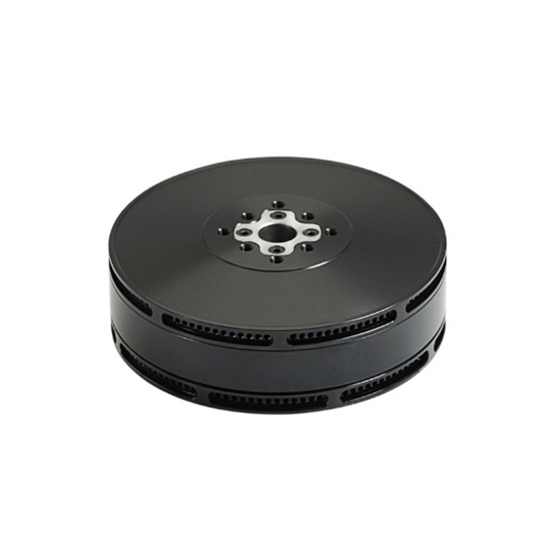

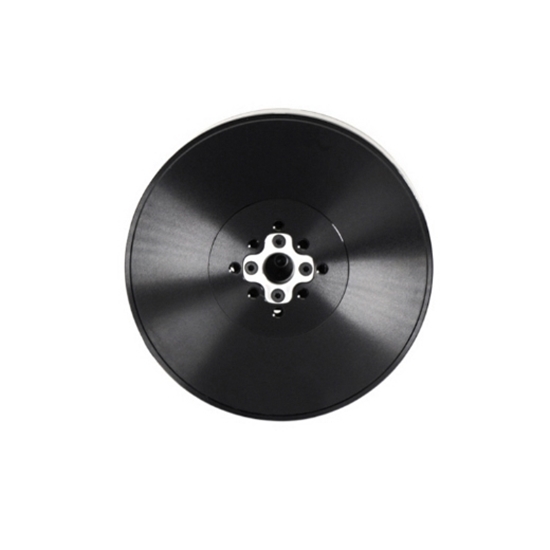

150KV/250KV brushless motor is a quadcopter motor that connects with 20/22/24 inch propellers to make a drone fly. It is perfect for heavy lift drone position and speed control. 6S/12S brushless drone motor has lightweight, high efficiency, wide speed range and strong torque capability.

Specifications

Model	RDDLZ-EOLO-6210
Motor KV	125	250
Number of Stator Slots	24	24
Number of Rotor Poles	22	22
Motor Size	φ69.3*35.5mm	φ69.3*35.5mm
Shaft Diameter	4.0mm	4.0mm
Motor Silicone Wire	20AWG 100mm	20AWG 100mm
Phase-to-Phase Internal Resistance	44mΩ	44mΩ
Motor Weight (Including Wires)	243g	251g
Rated Voltage (Lipo)	12S	6S
No-Load Current	0.4A/10V	0.7A/10V
Maximum Continuous Power	1500W	1080W
Maximum Continuous Current	30A/30s	45A/30s
Recommended ESC	40A	40A
Recommended Propeller	C206.2/CN226.5/C24*7.5	C206.2/CN226.5/C24*7.5
Maximum Continuous Current	30A/30s	45A/30s
Recommended ESC	40A	40A
Recommended Propeller	C206.2/CN226.5/C24*7.5	C206.2/CN226.5/C24*7.5

Features

High-efficiency 150KV/250KV brushless motor is designed for multi-rotor drones.
The brushless drone motor adopts an IP54 motor structure to prevent dust and rain.
It has manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power more potent.

Dimensions (Unit: mm)

Tips: How long do brushless drone motors last?

Brushed drone motors will last from 1,000 to 3,000 hours. Brushless motors will last up to 10,000 hours of flight time before they start to have problems. The life span of a drone motor is related to the load the motor is used under and the environment it is operating in.
