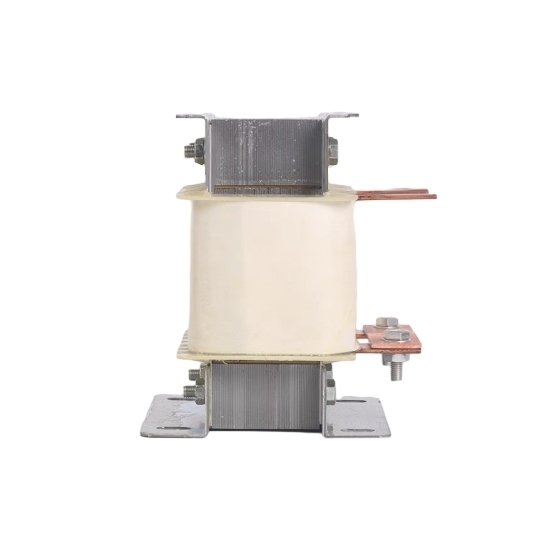

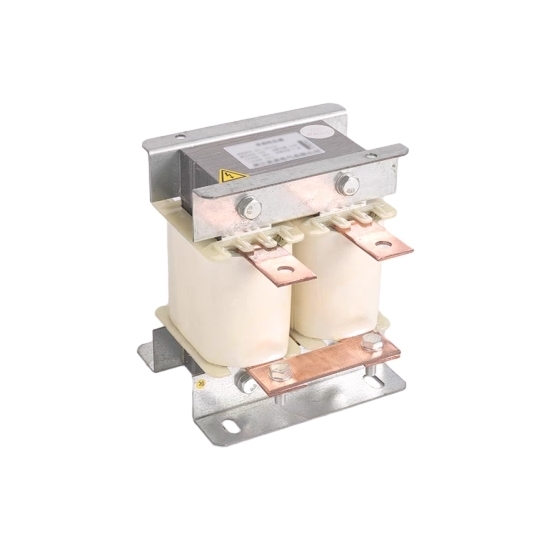

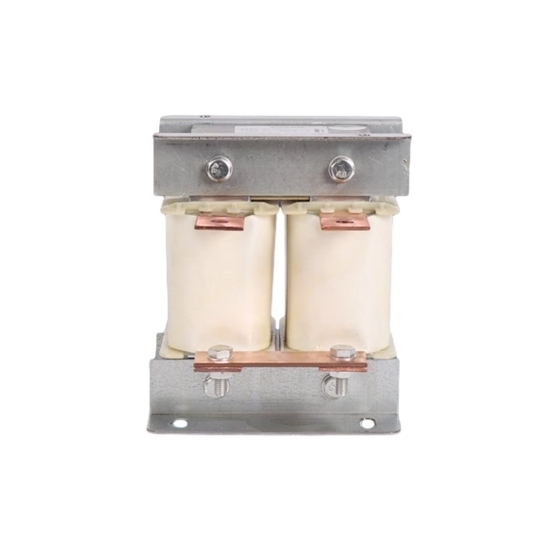

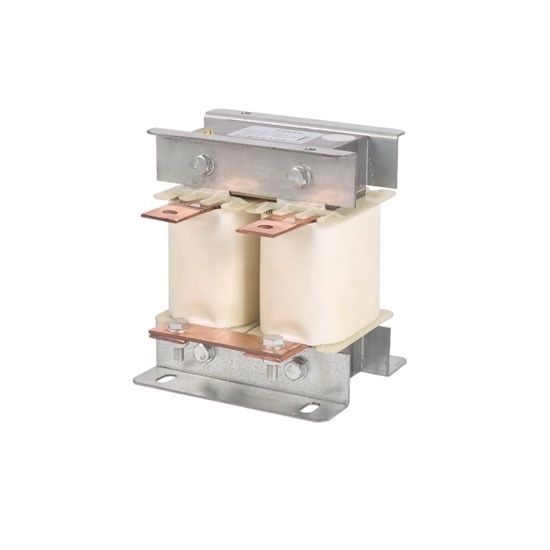

20 Hp (15 KW) DC Reactor, Single Phase

0 reviews • Write a review

from

$169.32

Ex Tax: $169.32

Stock: In Stock
Model: RDDLZ-DCR-20
Weight: 1.00
SKU: RDDLZ-DCR-20

Available Options

Voltage

Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Singel phase DC reactor with 20 hp (15 kW), rated operating voltage: 400V-1200V/50Hz, small size, light weight and easy to use.

Specification:

Model	RDDLZ-DCL-40
Phase	1 Phase
Power Adapter	15 kW (20 hp)
VFD Voltage Adapter	220V-1200V (Contact us for other voltages)
Rated Current	40A
Inductance	0.8mH
Insulation Grade	F.H
Dimension	120115130mm (LWH)
Mounting Dimension	100*65mm
Electric Strength	Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
Insulation Resistance	iron core-winding 1000VDC, Insulation resistance ≥100MV
Noise of Reactor	Less than 35dB (measured from 1 meter away in horizon from reactor)
Degree of Protection	IP00
Degree of Insulation	> Class F
Weight	4.5kg

Features
1. Improve the input current wave caused by capacitor harmonics.
2. Reduce and prevent rectifier bridge damage and capacitors.
3. Overheating due to a surge in current.
4. Improve the power factor and reduce the AC pulse of the DC bus.
5. Limit transient changes in system voltage.

Dimension (unit: mm)
Details

Tips: Filter reactor function

Filter reactors are widely used in high and low voltage filter cabinets, connected in series with filter capacitors, tuned to a certain resonance frequency, and used to absorb harmonic currents of the corresponding frequency in the power grid to eliminate high harmonics from the main transformer and other systems Hazard of electrical equipment.
After the filter reactor and the capacitor are connected in series, not only can it effectively absorb the harmonics of the power grid, but also improve the power factor of the system, which plays a greater role in the safe operation of the system.
