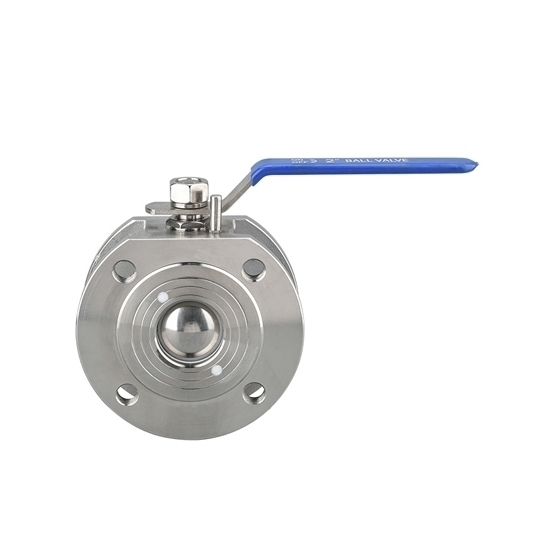

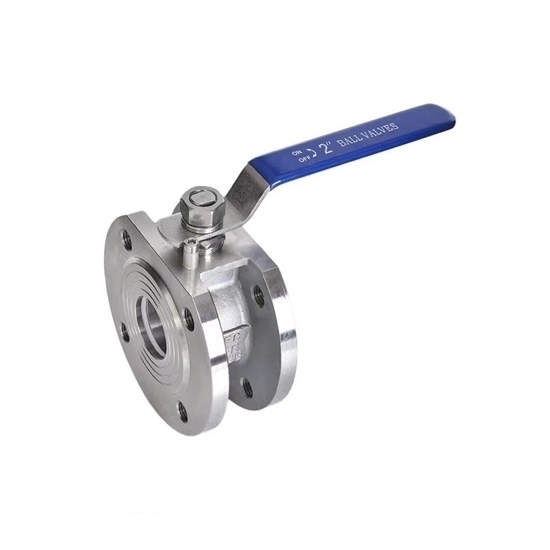

2" Stainless Steel Wafer Ball Valve

0 reviews • Write a review

from

$240.99

Ex Tax: $240.99

Stock: In Stock
Model: RDDLZ-WBV-DN50
Weight: 1.00
SKU: RDDLZ-WBV-DN50

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This ball valve cannot be used for drinking water.

RDDLZ stainless steel wafer ball valve with 2 inch (DN50) port, can come with various actuation methods, such as manual (lever or gear), electric, or pneumatic actuators, depending on the specific application requirements.

Specification

Model: RDDLZ-Q71F-PN16-DN50
Type: Wafer Type Flanged Ball Valve
Port Size: 2 inch (DN50)
Body Material: 304 Stainless Steel
Ball Material: 304 Stainless Steel
Stem Material: 304 Stainless Steel
Sealing Material: PTFE
Gland Packing: PTFE
Nominal Pressure: 1.6Mpa
Strength Testing Pressure: 2.4Mpa
Seat Testing Pressure: 0.6Mpa
Applicable Media: Water, Oil, Gas
Applicable Temperature: -20℃~180℃

Dimension (Unit: mm)

Size	DN	d	D	D1	D2	T	f	H	L±1.5	W	Hole Quantity & Diameter
DN50	50	46	157	125	102	15	2	62	70	172	4-φ16

Main Parts Materials

No.	Part Name	Material	Quantity
1	Body	SS304	1
2	Cap	SS304	1
3	Seat	PTFE	2
4	Ball	SS304	1
5	Stem Washer	PTFE	1
6	Packing	PTFE	1
7	Stem	SS304	1
8	Gland	SS304	1
9	Nut	SS304	2
10	Handle	SS304	1
11	Handle Cover	PVC	1

Tips: Do wafer ball valves need gaskets?

Wafer ball valves typically do not require gaskets in the traditional sense. These valves are designed to be sandwiched between flanges, and their construction includes a wafer-style body that fits between the flanges without the need for additional gaskets. The valve's design provides a tight seal when the flanges are tightened together. The absence of a gasket simplifies installation and maintenance.

However, it's important to note that while wafer ball valves may not use traditional gaskets, they may still incorporate other sealing elements, such as O-rings or elastomeric seals, to ensure a proper seal and prevent leakage. Users should follow the manufacturer's guidelines and specifications for the specific valve model to understand the sealing mechanisms employed and ensure proper installation and performance.
