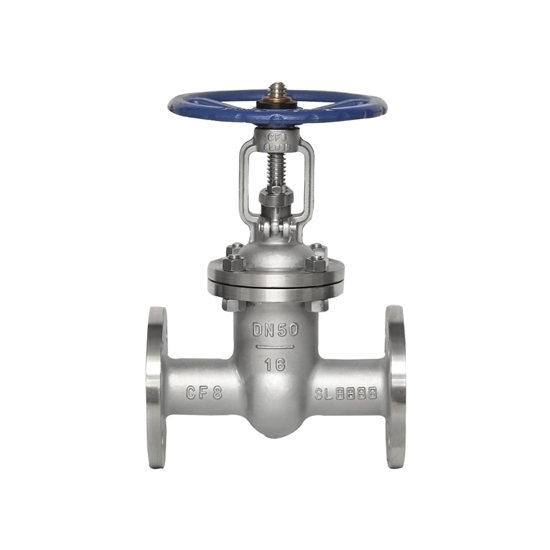

2" Stainless Steel Flanged Gate Valve

0 reviews • Write a review

from

$699.39

Ex Tax: $699.39

Stock: In Stock
Model: RDDLZ-FGV-DN50
Weight: 1.00
SKU: RDDLZ-FGV-DN50

Available Options

Short Description

Working Pressure

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This gate valve cannot be used for drinking water.

2 inch stainless steel flanged gate valve opens and closes securely with its flap mechanism, regulating the water flow effectively. Engineered to withstand high pressures, this full port ss gate valve is a reliable choice for demanding situations, such as those encountered in water distribution systems or industrial processes.

Specification

Model: RDDLZ-ANSI-DN50
Connection Type: Flanged Type
Flanged Port Size: 2 inch (DN50)
Working Pressure (Optional): CLASS150/300
Working Temperature: -425℃
Valve Body Material: Stainless Steel
Applicable Media: Water, Chemical, Petroleum, Gas, etc.

Detail & Dimension

Number	Part Name	Material
1	Body	CF8
2	Disc	CF8
3	Steam	304 Stainless Steel
4	Gasket	PTFE
5	Bonnet	CF8
6	Bolt	304 Stainless Steel
7	Nut	304 Stainless Steel
8	Packing	PTFE
9	Clevis Pin with Head	304 Stainless Steel
10	Split Pin	304 Stainless Steel
11	Gland	CF8
12	Eye Bolts	304 Stainless Steel
13	Flat Pad	304 Stainless Steel
14	Nut	304 Stainless Steel
15	Steam Nut	Bronze
16	Bonnet Nut	304 Stainless Steel
17	Handwheel	WCB
18	Round Nut	304 Stainless Steel

Working Pressure	Nominal	Diameter	L	d	D2	D1	D	b	f	n-φd1	H	W
CLASS150	DN50	2 inch	178	50	92	120.7	150	14.3	2	4-19	336	200
CLASS300	DN50	2 inch	216	50	92	127	165	20.7	2	8-19	343	200

Tips: What are the proper installation and maintenance procedures for flanged gate valves?

Proper installation and maintenance of flanged gate valves involve several key steps. During installation, ensure that the valve is correctly aligned with the pipeline, and flange bolts are evenly tightened in a cross-pattern to prevent distortion. Verify that the valve operates smoothly and check for any leaks. Regular maintenance includes periodic inspections for wear, corrosion, and proper alignment. Lubricate the stem and gate as needed, and replace any damaged or worn-out parts promptly. Perform routine tests for tight shutoff and inspect the flange gaskets for signs of deterioration. It's crucial to follow the manufacturer's guidelines and industry standards, as well as local regulations, to ensure the reliable performance and longevity of flanged gate valves in a fluid control system. Regular training for personnel involved in installation and maintenance is also essential for optimal valve operation.
