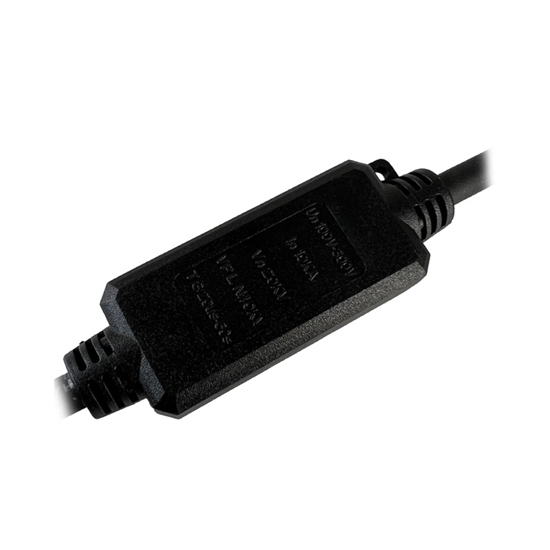

Factory price surge protector device (SPD) specially used for outdoor LED lighting systems. This recommended 10kV led surge protector has built-in L-N, L-G/PE, N-G/PE, and LN-G/PE protection modes, IP67, and series connection, which can be installed on LED lamps or connected to the LED power driver to provide reliable lightning surge protection.

Specifications

• Model: RDDLZ-YQ-SPD-P10C
• Un: 100~300V
• IL(AC): 5A
• In: 5kA
• Imax: 10kA
• Uoc: 10kV
• MCOV: 350V
• Up: ≤1.0kV (L-N, L-G/PE, N-G/PE, LN-G/PE)
• Temperature Range: -40℃~+85℃
• Connection Form: Connected in series with lamps in the circuit
• Protection Level: IP67

• Connecting Cable: Hose Wires (0.75-1.0mm²)
• Power Supply System: TN
• IEC 61643-11 Test Classification: Test Class II and Class III
• EN 61643-11 Test Classification: Type 2 and 3

Features

• This 10kV surge protector is specially designed for LED power supplies and can self-heal insurance and automatically disconnect for repair.
• It has built-in fast semiconductor protection, fast response speed, and adopts low capacitance inductor design for fast transmission performance.
• Recommended LED surge protector has small insertion loss, high transmission rate of 10~100m, long transmission performance, low resistance to reduce signal attenuation, and can protect itself when the voltage exceeds.

Dimension (Unit: mm)

Installation Guide

Notes:

1. The input cable is connected to the AC network. Improper installation will seriously damage the performance of the SPD.
2. The wire length can be customized according to customer requirements.
3. Please use one M3*10 self-tapping screw or use 705 curing gel to fix the SPD.

Installation Diagram

Applications

This good surge protector is a transient overvoltage protection device specially used for outdoor LED lighting systems. It is mainly composed of a transient surge protection device varistor and a gas discharge tube. It can be installed in LED lamps or lamp posts the LED power driver is connected to provide reliable lightning surge protection, effectively improving the stability and service life of the lamp.

Tips: What can an LED surge protector do?

An LED surge protector, also known as an LED surge suppressor or surge arrester, serves as a critical component in protecting LED lighting systems from electrical surges and transient voltage spikes. Here's what it can do:

• Voltage Regulation: LED surge protectors maintain a stable voltage supply to LED fixtures, preventing fluctuations that can cause flickering or damage.
• Surge Suppression: They divert excess electrical energy from voltage surges and spikes away from the LED fixtures, preventing damage to sensitive components.
  Protection from External Surges: LED surge protectors shield against external factors like lightning strikes, power grid fluctuations, and nearby equipment switching on or off.
• Extended Lifespan: By preventing damage from surges, surge protectors contribute to extending the lifespan of LED lighting systems.
• Increased Reliability: They enhance the reliability and performance of LED lighting by ensuring consistent, clean power.

In summary, LED surge protectors play a vital role in safeguarding LED lighting systems, ensuring they operate efficiently, last longer, and remain protected from voltage-related issues that can compromise their performance and longevity.
