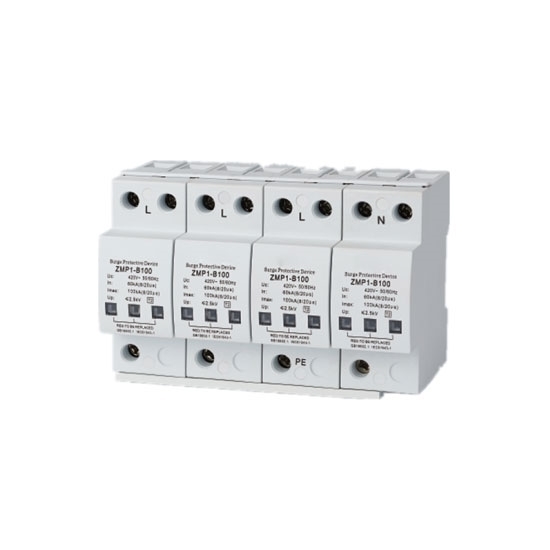

Surge Protection Device, Type 2, 100/120/150kA

0 reviews • Write a review

from

$72.94

Ex Tax: $72.94

Stock: In Stock
Model: RDDLZ-SPD-100150
Weight: 1.00
SKU: RDDLZ-SPD-100150

Available Options

Short Description

Number of Poles

Max. Continuous Operating Voltage

Max. Discharge Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Surge protective device (SPD) is suitable for 3-phase power distribution system like IT, TT, TN-S etc. This Type 2 SPD has two protection modes, L-PE/N-PE and L-N/N-PE, with nomial discharge current 60kA, 80kA and 100kA, excellent performance and favorable price. It features fast response time, large current capacity, low residual voltage, high reliability and affordable price.

Specification

Model	TR6-B100			TR6-B120			TR6-150
Max. Continuous Operating Voltage Uc (VAC)	420	385	275	420	385	275	420	385	275
Voltage Protection Level Up (kV)	≤2.6kV	≤2.5kV	≤1.8kV	≤2.7kV	≤2.6kV	≤2.0kV	≤3.2kV	≤3.0kV	≤2kV
Nominal Discharge Current (8/20 µs) In (kA)	60kA			80kA			100kA
Max. Discharge Current (8/20 µs) Imax (kA)	100kA			120kA			150kA
Number of Poles	1 Pole, 2 Pole, 3 Pole, 4 Pole
Response Time	<25ns
Protection Grade	IP20
Indication of Invalidation	Aging failure: white - normal, red - invalid
Application	Primary protection for in line
Installation	35mm DIN Rail

Note:
* It shall adopt 10~35mm² copper conductor to wire SPD, and the earthing wire shall be dual color multi-strand soft copper conductor more than 16mm².

Dimensions (Unit: mm)

Tips: Protection grade of surge protection device

Because of the huge energy of a lightning strike, it is necessary to gradually discharge the energy of lightning strike to the earth through a step-by-step discharge method. The Class I arrester can discharge the direct lightning current, or discharge the conducted huge energy when the power transmission line is suffering a direct lightning strike. For places where direct lightning strikes may occur, Class I arrester for lightning protection must be applied.

The Class II surge protection device is used as a protective device for the residual voltage of the primary arrester and for inductive lightning stroke in the area. When the primary arrester absorbs large lightning strike energy, there is still a part of energy transmitting to the devices or Class III surge protectors and the energy is quite large to them. Therefore, it needs a Class II surge protection device to further absorb it. At the same time, the transmission line passing through the first stage of the lightning arrester will also induce the electromagnetic pulse of lightning strikes. When the line is long enough to sense the energy of the lightning which will become large enough, it is required that Class II surge protection device do the further discharge of the lightning strike energy.

The Class III surge protection device protects the equipment or device from residual lightning strike energy which pass through the electromagnetic pulse and Class II lightning protection device.
