1/8" NPT Air Filter With Regular Trap

0 reviews • Write a review

from

$55.35

Ex Tax: $55.35

Stock: In Stock
Model: RDDLZ-AF-1/8-NPT
Weight: 1.00
SKU: RDDLZ-AF-1/8-NPT

Available Options

Type

Thread Type

Drain Type

Pressure Gauge

Scale

Filtering Grade

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

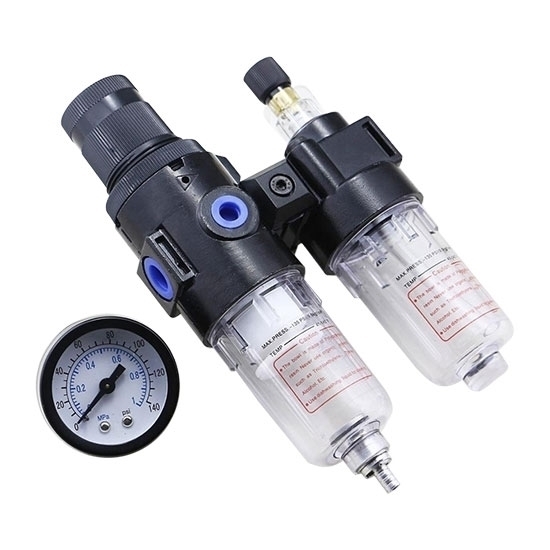

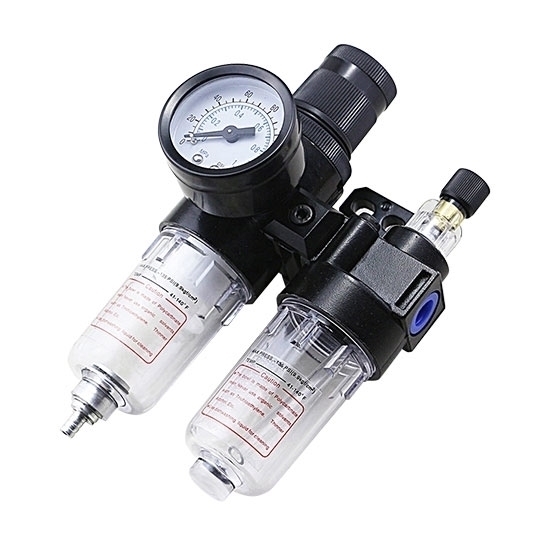

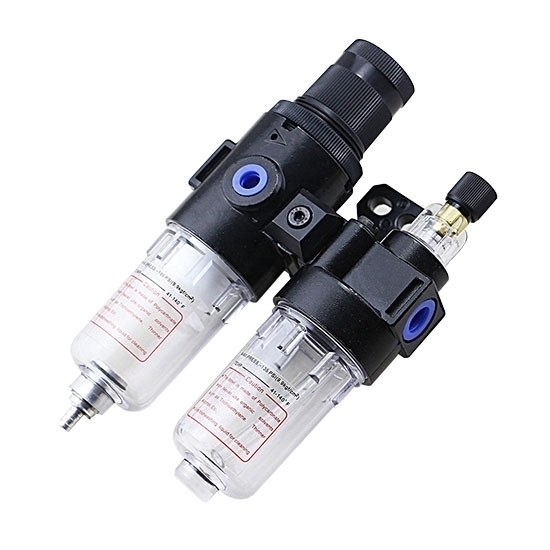

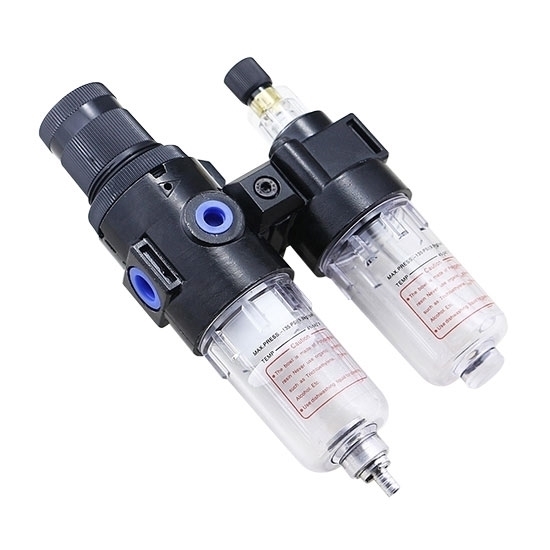

The structure of the 1/8" NPT air filter is delicate and compact, which is convenient for installation and application.
preventing the abnormal movementof the set pressure caused by external interfere.
The pressure loss is low and the efficiency of The 1/4"oil-water separator is high.
The quantity of oil dripping can be directly observed through transparent checkdome.
Lower pressure type is optional (The highest adjustable pressure is 0.4MPa).

Specification

Model	RDDLZ-AFC1500
Fluid	Air
Port size	1/8"
Filtering grade	40 μm or 50 μm
Pressure range	Semi-auto and automatic drain: 0.15-0.9 MPa ( 20-130 Psi ), manual drain: 0.05-0.9 MPa ( 7-130 Psi )
Max pressure	1.0 MPa ( 145 Psi )
Proof pressure	1.5 MPa ( 215 Psi )
Temperature range	-5~70 ℃
Capacity of drain bowl	15 cc
Capacity of oil bowl	25 cc
Recommended lubricant	ISO VG 32 or equivalent
Weight	500 g

Selection table

Drain type	Semi-auto drain
Drain type	Manual drain
Pressure gauge	Pressure gauge
Pressure gauge	No pressure gauge
Scale	1 MPa, 2 Psi, 3 bar, 4 kgf/cm² & Psi
Filtering grade	40 μm
Filtering grade	5 μm
Thread type	PT ( scale: MPa or kgf/cm² & Psi )
	G ( scale: bar )
	NPT ( scale: Psi )

Details

Pressure and feature of flow

Dimension(Unit: mm)

Tips

The working principle of the 1/8" NPT air filter with regular trap :

1. The oily sewage is sent to the oil-water separator by the sewage pump, after passing through the diffusion nozzle, the large oil droplets will float on the top of the left oil collection chamber.

2. The sewage containing small oil droplets enters the corrugated plate coalescer in the lower part, where the polymerized oil droplets form larger oil droplets to the right oil collecting chamber.

3. Sewage containing oil droplets with smaller particles passes through a fine filter to remove impurities in the water and enter the fiber polymerizer in turn, so that the fine oil droplets are aggregated into larger oil droplets and separated from the water.

4. After separation, the clean water is drained through the drain port, the dirty oil in the left and right oil collection chambers is automatically drained through the solenoid valve, and the dirty oil separated in the fiber polymerizer is drained through the manual valve.
