Fixed Hydrocarbons (HC) Gas Detector, 0 To 100%LEL

0 reviews • Write a review

from

$416.59

Ex Tax: $416.59

Stock: In Stock
Model: GD300-HC
Weight: 1.00
SKU: GD300-HC

Available Options

Signal Output

Relay Output

Power Adapter

Calibration Kit

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Fixed HC gas detectors utilize the catalytic combustion detection principle, to accurately measure the concentration of Hydrocarbon gases in the air. These gas sniffers are essential for safety, as they provide early warnings of gas leaks, helping to prevent potentially hazardous situations like explosions or fires.

Features

Hydrocarbons gas detector adopts high precision sensor for accurate gas leak detection.
Hydrocarbons gas detector is equipped with 3-wire system 4-20mA analog output, relay output, RS485 output (optional).
The HC gas monitor is compatible with various controlled alarms, PLC, DCS and other control system, and can be remote monitored.
Explosion-proof design, fast, relaible and stable.
Infrared ray controller can remote control the alarm point settings, zero calibration, and address modification.
Two-stage alarm with sound and light, and the alarm point is settable.
The Hydrocarbons gas detector has self-calibration function, and three standard keys will be used to realize on-site maintenance.
The HC gas detector can output one or two on-off signals, and can drive a ventilator, solenoid valve or other external devices.

Specification

Model	GD300-HC
Detection Principle	Catalytic Combustion
Gas	Hydrocarbons (HC)
Range (Optional)	0-100% LEL
Resolution	1% LEL

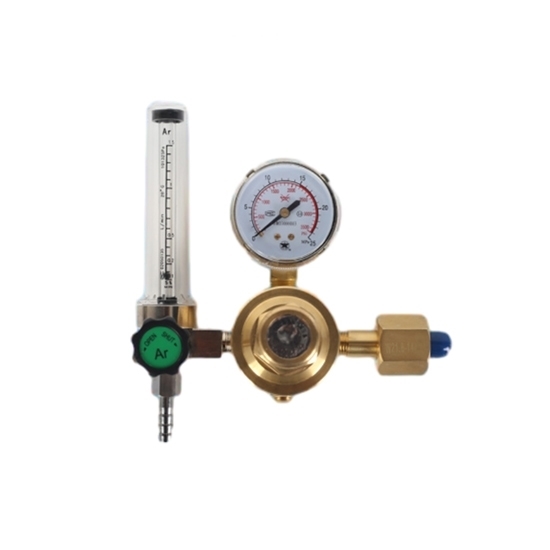

Calibration Kit	Gas pressure regulator (calibration gas cylinder NOT included)
Accuracy	≤±3% F.S.
Response Time	≤10s
Repeatability	≤±1%
Recovery Time	≤10s
Linearity Error	≤±1%
Zero Shift	≤±1% (F.S./year)
Signal Output (Optional)	4-20mA and RS485 Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional).
Alarms	Sound, light
Display	High light nixie tube display
Installation	Wall-mounted, piping type, flow-type (according to the detected environment)
Connection	Power connection type: G1/2 male thread explosion-proof flexible pipe Pipe-mounted type: M45*P2.0
Operating Time	24h
Explosion-proof Grade	Ⅱ 2G Ex ia Ⅱ CT4 Ga
Protection Grade	IP65
Certification	CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Working Voltage	12-36V DC
Case Material	Die-casting aluminum housing
Operating Temperature	-20℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Dimension	20617990mm
Weight	≤1.6kg
Accessories	Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug)

Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.

Fixed Hydrocarbons (HC) Gas Detector Dimension (Unit: mm)

***Other Common Gases and Ranges Available for Fixed Gas Detectors

Gas Type	Measure Range	Resolution
Ammonia (NH3)	0-50/100/200/500/1000/2000/5000ppm	0.01ppm/0.1ppm/1ppm
Benzene (C6H6)	0-1/10/50/100/200/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Carbon Dioxide (CO2)	0-1000/2000/5000/9999ppm, 0-2/5/10/20/25/30/50/100%VOL	0.1ppm/1ppm/0.001%VOL/0.01%VOL/0.1%VOL
Carbon Monoxide (CO)	0-10/20/50/100/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Chlorine (Cl2)	0-5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Chlorine Dioxide (ClO2)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Combustible Gas (EX)	0-100%LEL	1%LEL
Ethylene (C2H4)	0-10/20/50/100/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Formaldehyde (CH2O)	0-10/20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Hydrocarbons (HC)	0-100%LEL	1%LEL
Hydrogen (H2)	0-10/20/500/1000/2000/5000/9999ppm, 0-2/4% VOL, 0-100% LEL	0.1ppm/1ppm/0.001%VOL/1%LEL
Hydrogen Chloride (HCL)	0-10/20/50/100/200ppm	0.01ppm/0.1ppm
Hydrogen Cyanide (HCN)	0-10/20/50/100ppm	0.01ppm/0.1ppm
Hydrogen Sulfide (H2S)	0-5/20/50/100/200ppm	0.001ppm/0.01ppm/0.1ppm
Methane (CH4)	0-50/100%VOL, 0-100%LEL	0.01%VOL/0.1%VOL/1%LEL
Nitric Oxide (NO)	0-1/5/10/20/50/100/250/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Nitrogen (N2)	0-99.99/0-100%VOL	0.01%VOL/0.1%VOL
Nitrogen Dioxide (NO2)	0-1/5/10/20/50/100/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Nitrogen Oxides (NOX)	0-1/5/10/20/50/100/250/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Oxygen (O2)	0-25/30/100%VOL	0.01%VOL/0.1%VOL
Ozone (O3)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Phosphine (PH3)	0-10/20/50/100/500/1000/2000/3000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Dioxide (SO2)	0-1/5/10/20/50/100/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Volatile Organic Compounds (VOC)	0-1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm

Note: Some common gases and the measuring ranges are listed in the above table. For more information, please feel free to contact us.

Details

Tips: What is a fixed Hydrocarbons (HC) gas detector?

A fixed Hydrocarbons (HC) gas detector is a stationary device used to continuously monitor and detect the presence of Hydrocarbon gases in industrial environments, such as oil refineries, chemical plants, and offshore drilling platforms. These detectors are designed to provide early warning of gas leaks, ensuring safety and preventing hazardous situations like explosions or fires. They operate using various sensing technologies, including infrared, catalytic bead, or semiconductor sensors, to accurately measure hydrocarbon gas concentrations. Once a dangerous level is detected, the system triggers alarms and can initiate automatic shutdown procedures. Fixed HC gas monitors are crucial for maintaining workplace safety, and regulatory compliance, and protecting both personnel and equipment from potential gas-related incidents. Regular maintenance and calibration of these detectors are essential to ensure their accuracy and reliability in detecting gas leaks.
