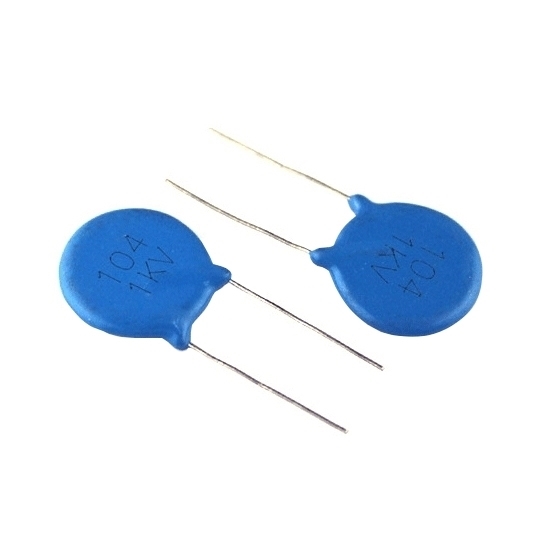

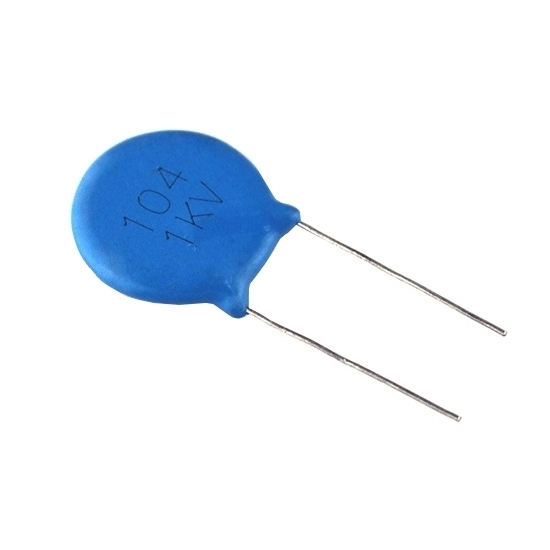

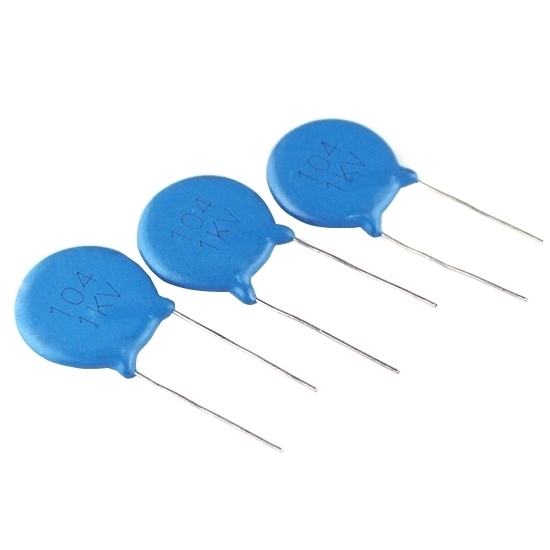

100nF 1kV disc ceramic capacitor is a high voltage power capacitor with 10mm lead pitch, which can be used for negative ion products, lasers, X-ray machines, control and measurement equipment, high-voltage packages, igniters, generators, transformers, power equipment, voltage doubling modules, welding machines, electrostatic spraying and other electromechanical equipment that requires high voltage and high frequency.

Specification

• Model: RDDLZ-1KV104K
• Series: High Voltage Disc Ceramic Capacitor
• Capacitance: 0.1μF (100000pF, 100nF)
• Rated voltage: 1kV (1000V)
• Tolerance: 10%
• Dielectric Material: Y5T
• Operating Temperature Range: -40℃ - 105℃
• Feature: High Frequency
• Lead Type: Radial Lead Wire
• Lead Pitch: 10mm

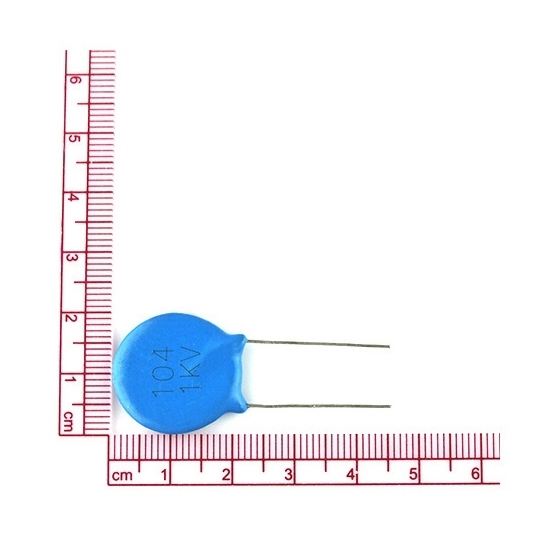

• Size: 8.5mm
• Installation Type: In-line
• Package: DIP
• Application: Household Appliances
• Medium Material: Ceramic (Porcelain)
• Loss: 0.01%
• Weight: 0.02kg

Note:

1. Capacitance: Under 1KHz (CLASSII), or 1MHz (CLASSI) and 25℃±2℃, Vrms = 1.0V conditons, not exceed capacitance tolerance.
2. Dissipation factor(D.F.): SL. YL Q> 1000, Y 5P Y 5U Y5V D.F. < 2.5%, Bn D.F. <0.5%, 2R D.F. <0.1%
3. Insulation resistance: At DC500V voltage for 1 minute CASSAII.R. ≥10,000MΩ, CLASSIII.R. ≥4000MΩ
4. Test voltage: UR< 6kV, Ut=1.5UR + 500V UR≥ 6kV, Ut = 1.5 x UR

Tips: Troubleshooting for ceramic capacitor

1. Component open circuit
   After different circuit chip capacitor circuit failures, the specific failure phenomenon of the circuit is different. If the filter chip capacitor is open, there will be hum, open coupling chip capacitor, mute, etc.
   Solution: SMD capacitor is open circuit, replace the component.
2. Component failure
   The chip capacitor is lost, the two pins of the chip capacitor enter the channel, the function of the chip capacitor is eliminated, and the DC circuit of the circuit fails, thus affecting the working state of the communication.
   Solution: Replace the ceramic capacitor.
3. Component leakage
   The insulation performance between the two pole plates of the chip capacitor decreases, and there is leakage resistance between the two plates, and the DC current passes through the chip capacitor, the insulation performance of the chip capacitor changes, and the capacitance of the chip capacitor decreases. When the coupling chip capacitor leaks, it will cause greater circuit noise. This is a relatively small fault in a small chip capacitor, and it is difficult to detect the fault.
   Solution: chip capacitor leakage, replace with new ones.
4. Breakdown after power-on
   The chip capacitor has the power after breakdown of the working voltage, it also shows no fault characteristics. When tested by a multimeter, it does not represent the breakdown voltage, it is zero or very low in the case of measuring electricity across the chip capacitor. Capacitors do not perform well.
   Solution: After the power is off, replace it with a new one.
