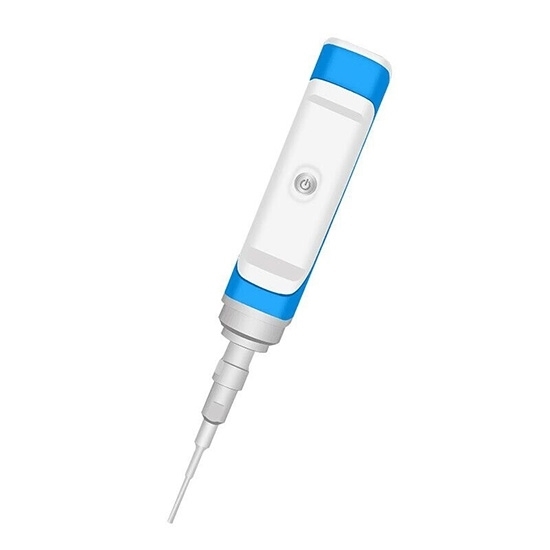

0.1-5ml Portable handheld ultrasonic cell crusher can convert mains power into high frequency and high voltage electricity. The energy is transmitted to the transducer and converted into high frequency mechanical vibration, which acts on the liquid to produce strong pressure waves.

Features:

• Integrated structure design, compact shape, lightweight and exquisite.
• Adotps with titanium alloy material which has high strength, strong corrosion resistance and long service life.
• Frequency tracking and amplitude compensation adopt automatic mode, with stable load and high electro-acoustic conversion rate.

Specification:

• Model: RDDLZ-HX-MINI300 (5ml)
• Power: 50W
• Input Voltage: 100-230VAC
• Frequency: 30 KHz
• Capacity: 0.1-5 ml
• Horn Material: titanium alloy
• Optional Horn: 1.5, 2, 3, 6, 8 mm
• Single Interval Time: 0.1-99.9s
• Single Ultrasound Time: <30 min
• Operation Mode: continuously
• Net Weight: 0.4kg

Dimension:

Application:

Tips: What are the Advantages of Handheld Ultrasonic Homogenizer?

• Ease to use. Mini handheld ultrasonic homogenizers are user-friendly and typically feature simple controls. They are lightweight and ergonomically designed, making them comfortable to hold and operate for extended periods.
• Versatility. It is suitable for a wide range of applications in fields such as biology, chemistry, pharmaceuticals, and food science. They can be used for tasks like sample preparation, emulsification, dispersion, cell disruption, and DNA/RNA extraction.
• Portability. Handheld design allows for easy portability and maneuverability. You can conveniently carry it to different locations and use it wherever needed, without the limitations of a bulky and fixed homogenizer.
