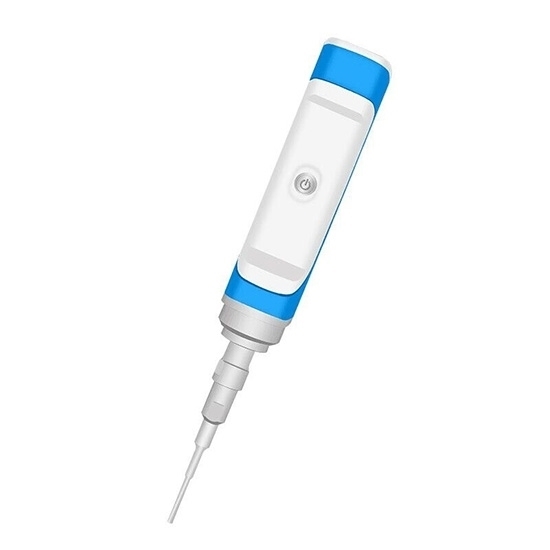

0.1-100ml Handheld Ultrasonic Homogenizer

0.1-100ml Handheld Ultrasonic Homogenizer
0.1-100ml Handheld Ultrasonic Homogenizer
0 reviews • Write a review
from
$1,402.72
Ex Tax: $1,402.72
  • Stock: In Stock
  • Model: RDDLZ-HUH-100
  • Weight: 1.00
  • SKU: RDDLZ-HUH-100

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Mini handheld homogenizer with metal stainless steel plug-in opening and independent power supply. Easy to carry and to install. The material of 0.1-100ml handheld homogenizer horn is durable titanium alloy.

Features:

  • Integrated structure design, compact shape, lightweight and exquisite.
  • Adotps with titanium alloy material which has high strength, strong corrosion resistance and long service life.
  • Frequency tracking and amplitude compensation adopt automatic mode, with stable load and high electro-acoustic conversion rate.

Specification:

  • Model: RDDLZ-HX-MINI300 (100ml)
  • Power: 150W
  • Input Voltage: 100-230VAC
  • Frequency: 30 KHz
  • Capacity: 0.1-100 ml
  • Horn Material: titanium alloy
  • Optional Horn: 1.5, 2, 3, 6, 8 mm
  • Single Interval Time: 0.1-99.9s
  • Single Ultrasound Time: <30 min
  • Operation Mode: continuously
  • Net Weight: 0.4kg

Dimension:

Application:

Tips: How Does Handheld Ultrasonic Homogenizer Work?

A handheld ultrasonic homogenizer works on the principle of acoustic cavitation. It utilizes high-frequency sound waves generated by a piezoelectric transducer to create alternating compression and rarefaction waves in a liquid medium. The rapid changes in pressure form small bubbles or cavities within the liquid. As the pressure waves propagate, the bubbles grow and eventually collapse due to the high-intensity pressure fluctuations. This collapse generates localized high temperatures and pressures, causing intense shear forces and shockwaves in the surrounding liquid. These forces disrupt particles, cells, or tissues, resulting in homogenization, dispersion, and cell lysis. The handheld device allows for precise control and manipulation of the ultrasonic energy, making it suitable for various applications in research, laboratory, and industrial settings.
