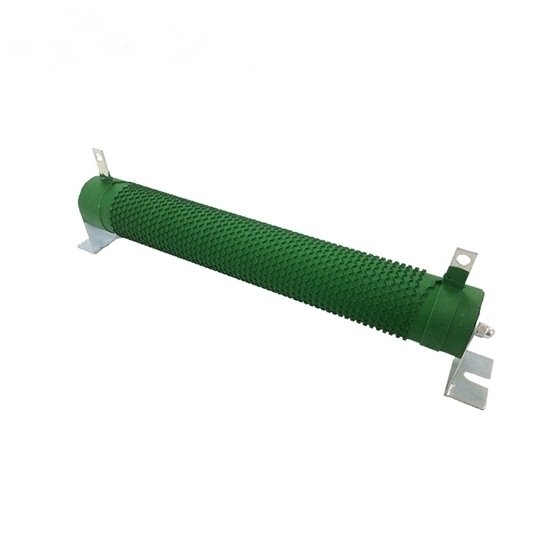

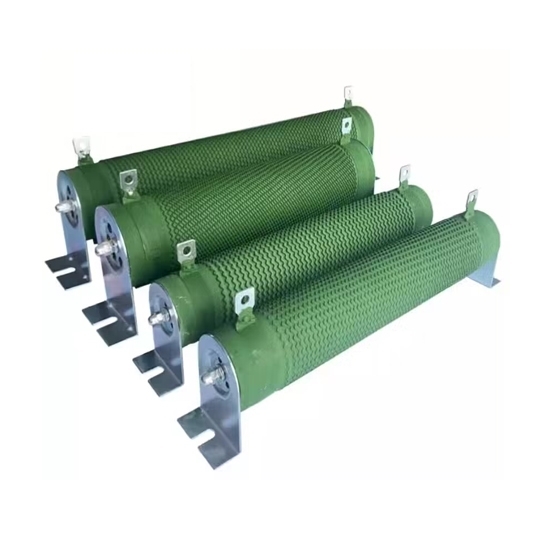

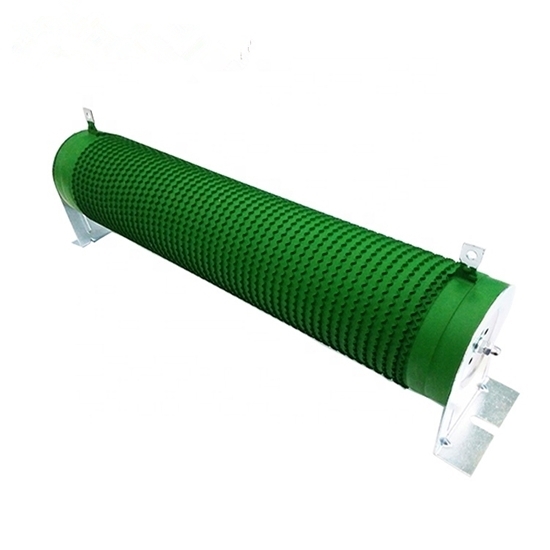

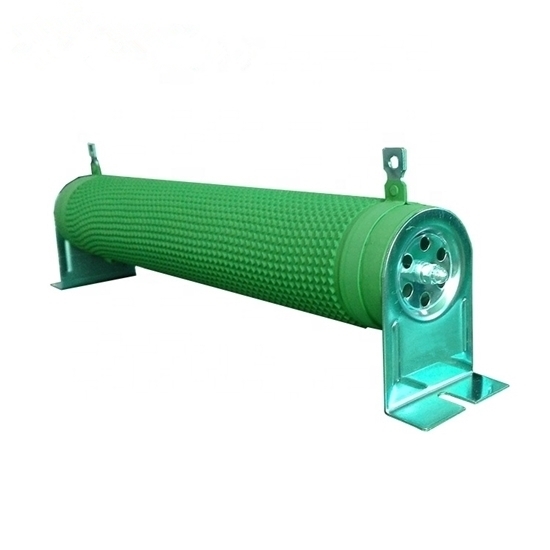

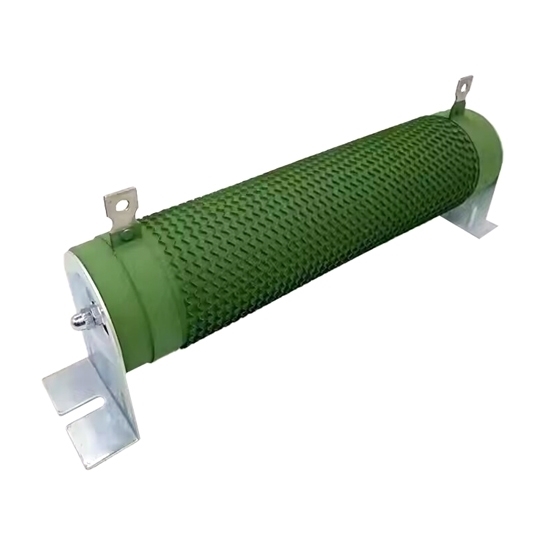

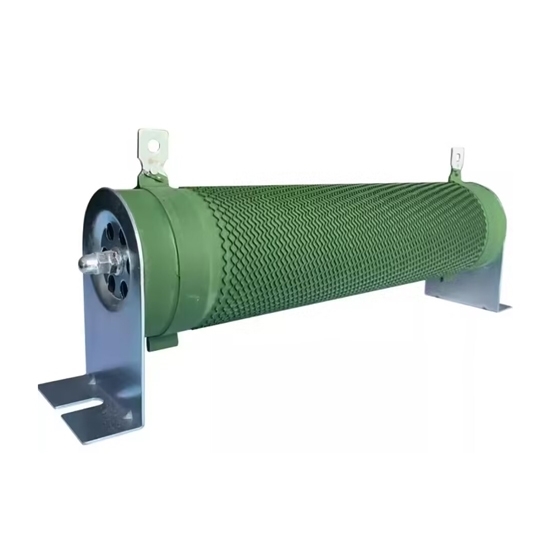

Wire Wound Ceramic Braking Resistor

0 reviews • Write a review

from

$51.54

Ex Tax: $51.54

Stock: In Stock
Model: RDDLZ-WWR-56
Weight: 1.00
SKU: RDDLZ-WWR-56

Available Options

Rated Power (W)

Resistance Selection (Ω)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

Rated power can be up to 6000W, resistance can be up to 3000Ω.
Inorganic coating is flame-retardant, strong overload capacity, can withstand 10 times the rated power within 5 seconds.
Vertical corrugated structure, low parasitic inductance, high resistance with flat wound.

Specification

Model	RDDLZ-WWR-56
Tolerance	±5%, ±1% available
Max.Work Voltage	(P*R)^1/2 V
Temperature Coefficient	400 PPM/℃
Short Time Overload	5xPn (rated power) in 5 seconds
Dielectric Voltage	AC2.5kV/1min 50Hz
Insulation Resistance	DC500V, R≥100MΩ
Certification	CE, RoHS
Terminal Strength	200N 30s, no damage
Operating Temperature Range	-25℃~+225℃

Derating Curve Diagram of Ceramic Braking Resistor

Temp. Rise Curve Diagram of Ceramic Braking Resistor

Tips: Classification and characteristics of wire wound ceramic braking resistors.

Vertical corrugated wire-wound ceramic resistor: larger heat dissipation area, can withstand higher pulse voltage, short hedging time, but strong adaptability in use environment with high pulse voltage. By adopting the reverse double winding method, non-inductive winding resistance can be manufactured, and the parasitic inductance is effectively reduced.
Sliding adjustable ceramic resistor: Zero to maximum resistance can be adjusted. By sliding the middle slider, an adjustable resistance is obtained to control the output of circuit current.
Flat-wound ceramic resistor: High-resistance resistors, resistances up to 20000 ohms, which is suitable for high-resistance environments.
