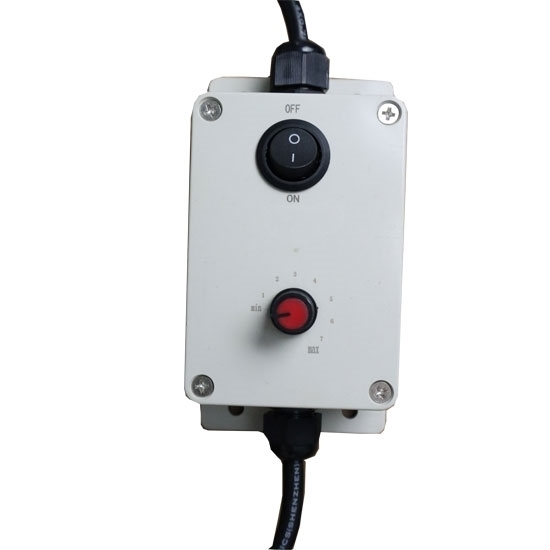

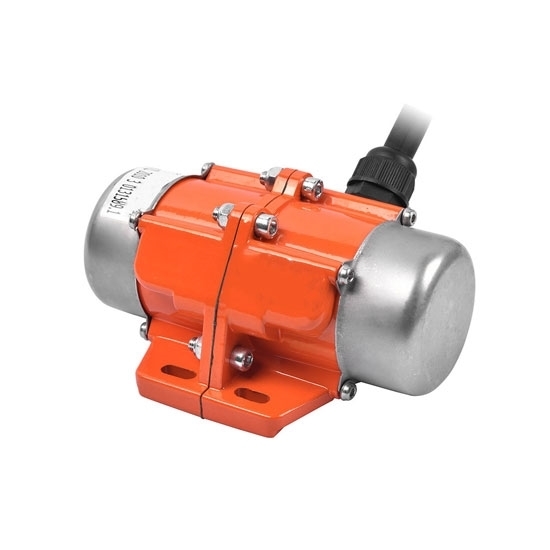

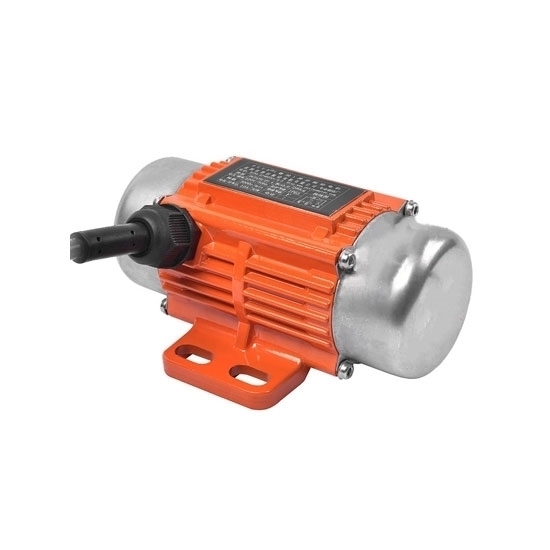

30W 1 phase vibrating electric motor manufacturer direct sale. This 220V/110V AC vibration motor comes with an optional variable speed controller, 50Hz 3000rpm/60Hz 3600rpm frequency, IP65 waterproof, used to shake off materials attached to pipes.

Features

• Small AC vibration electric motor is made of thickened aluminum alloy, featuring a compact size, low noise, and adjustable amplitude.
• The special voltage can be customized, and the power cord will be given as a gift under 100W. IP65 waterproof rating and resistance to low-pressure jets.
• 1 phase industrial vibrating motor has high strength, anti-deformation, and anti-oxidation properties, allowing long-term high-speed operation with a firm, shockproof thickened base.

Specifications

Dimension (Unit: mm)

Internal Structure

Applications

RDDLZ 30W 220V/110V AC micro single phase vibration motor is widely used in mining, metallurgy, coal, electricity, construction, chemical industry, medical care, casting, food, powder spraying equipment, powder screening, grain machinery, etc.

Tips: Vibration Electric Motor Working Principle

The vibrating motor is equipped with a set of adjustable eccentric blocks at both ends of the rotor shaft, and the centrifugal force generated by the high-speed rotation of the shaft and the eccentric block is used to obtain the exciting force. The combination of the specially designed motor and the eccentric block makes the motor rotate. In the eccentric block, the exciting force is transmitted to the vibrating machine through the motor. The vibrating motor only needs to adjust the outer eccentric block to form a certain angle with the inner eccentric block, so that the exciting force can be adjusted steplessly.

The vibration motor can generate different vibration trajectories according to different installation combinations on the vibrating body, thereby effectively completing various operations. Similar to another vibration source vibrator of a vibrating machine, if a single vibrating motor is installed, a circular motion or an elliptical motion trajectory will be generated. A linear motion will occur if two identical models of the same speed but opposite steering are installed. The trajectory can also be used according to the needs of two different types of vibration electric motors with different speeds. The equipment generates composite vibration trajectories, generally in the form of dual-frequency and double-width composite.
