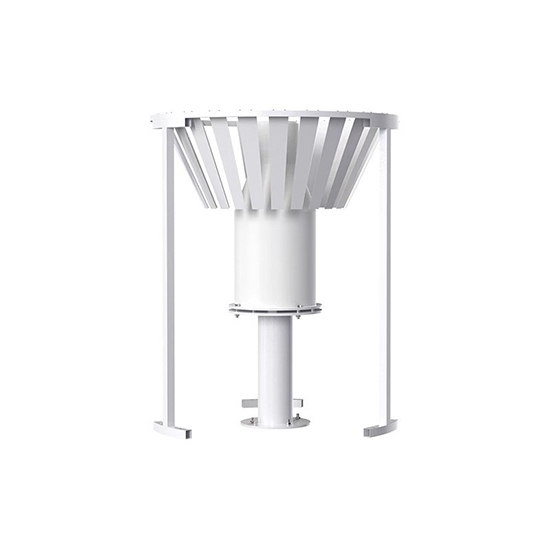

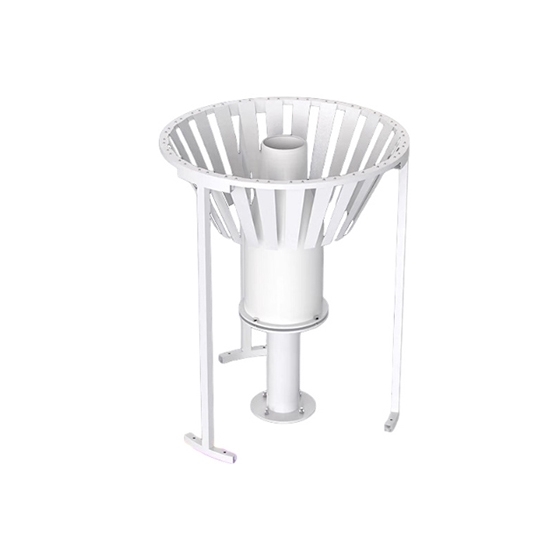

Weighing Bucket Rain Gauge Sensor With Pulse/RS485

Free Shipping

Weighing Bucket Rain Gauge Sensor With Pulse/RS485

0 reviews • Write a review

from

$9,537.63

Ex Tax: $9,537.63

Stock: In Stock
Model: RDDLZ-RS-WB008
Weight: 1.00
SKU: RDDLZ-RS-WB008

Available Options

Short Description

Output Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Weighing rain sensor has a low power consumption mode of operation, the collection system can be powered by solar energy. Simple and convenient installation, low maintenance, simple calibration with a variety of output forms, can be adapted to different collection equipment. The use of standard parts design, modular components and castings to ensure the high reliability of the rain and snow gauge, making it suitable for all-weather rainfall and snowfall observation in harsh environments.

Specification

Model	RDDLZ-SN-3008-CYL
Power Supply	12V DC
Output	RS485/pulse (optional)
Power Consumption	0.15W (DC12V)
Range	0~1000mm
Resolution	0.1mm
Inside Diameter	φ200±0.6mm
Tolerance	±0.2mm, ≤10mm
Tolerance	±2% for ≤10mm
Transmitter Element Temperature Resistance	-35°C~65°C
Transmitter Element Humidity Resistance	0%RH~95%RH (non-condensing)

Dimensional Drawing (unit: mm)

Details

Applications

Tips: Weighing bucket rain sensor features

Wide range of precipitation intensity measurement up to 6~1800mm/h.
Rainfall sensor with automatic drainage, when the amount of water up to 80% of the range can be automatically drained.
Measurement accuracy is high, compared with the traditional traditional tipping bucket tube is smaller or larger rain intensity can be measured accurately.
Weighing bucket rain sensor shell design is convex type, can play the wind, reduce evaporation and increase the precipitation capture function.
