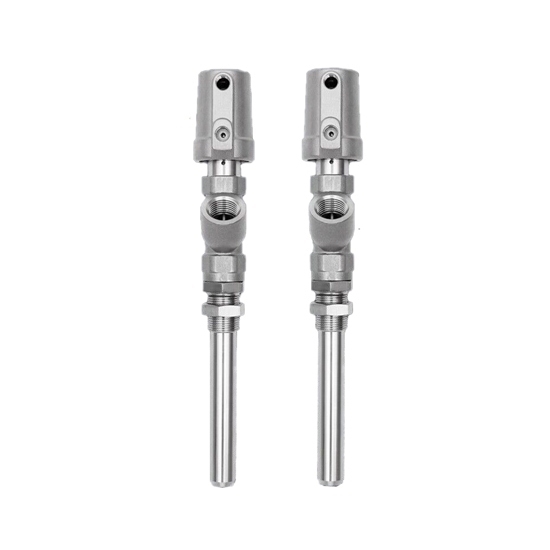

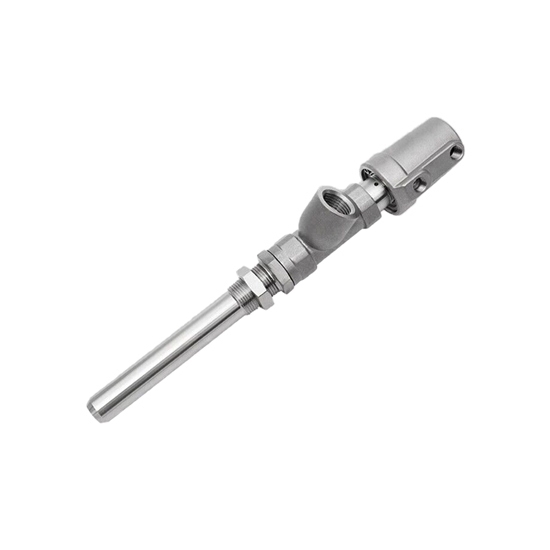

1" DN25 Filling Valve, Stainless Steel

0 reviews • Write a review

from

$230.98

Ex Tax: $230.98

Stock: In Stock
Model: RDDLZ-FV-DN25
Weight: 1.00
SKU: RDDLZ-FV-DN25

Available Options

Short Description

Valve Body Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This filling valve cannot be used for drinking water.

Built to perform in diverse climates, the valve operates efficiently within an ambient temperature range of -10℃ to +80℃. Whether you're managing water systems, industrial processes, or other liquid control applications, 1" filling valve, stands as a dependable solution.

Specification

Model	RDDLZ-FV-DN25
Pipe Diameter	1" DN25
Valve Body Material	Stainless steel 304/316
Pipe Pressure	0-1.6 MPa
Control Stress	0.3-0.8 MPa
Medium Temperature	-20℃~+200 ℃
Sealing Material	PTFE (polytetrafluoroethylene)
Interface Form	BSP thread
Ambient Temperature	-10℃~+80 ℃
Weight	4.5kg

Dimension (Unit: mm)

Bore Diameter	H1 (mm)	H2 (mm)	H3 (mm)	∅D (mm)	∅d (mm)	∅A (mm)	M	G1 (mm)
DN15	145	100	30	32	28	18	36	1"

Features

Widely used in filling machinery, especially suitable for viscous, paste-like, and foamy liquids.
Fast, accurate, and stable filling speed.
Compact and exquisite design, facilitating easy layout of pipelines.
Sealed design at the bottom of the filling head ensures drip-free filling while maintaining flow efficiency.
The chamfered design at the bottom of the filling head serves as a guiding locator, allowing for submerged filling.
The large-caliber filling valve head adopts a gourd-shaped design, reducing weight without compromising flow.

Structure

Application

Tips: Can a Filling Valve be used in outdoor applications?

Whether a 1" Filling Valve can be used in outdoor applications depends on its specific design and construction.

Material and Construction: Check the material and construction of the 1/2" Filling Valve. Outdoor applications may expose the valve to varying weather conditions, including sunlight, rain, and temperature extremes. Valves designed for outdoor use often have materials that resist corrosion and degradation caused by exposure to the elements.
Weather Resistance: Outdoor environments can be harsh, so it's essential to ensure that the 1/2" Filling Valve is weather-resistant. Look for features such as UV resistance, corrosion-resistant coatings, and waterproof seals.
IP Rating: Some valves may come with an Ingress Protection (IP) rating, indicating their resistance to dust and water. A higher IP rating generally means better protection against environmental factors. Check the product specifications for the IP rating if provided.
Freezing Conditions: If the outdoor environment experiences freezing temperatures, ensure that the 1/2" Filling Valve is designed to handle freezing conditions. Some valves have features like freeze resistance to prevent damage in cold climates
