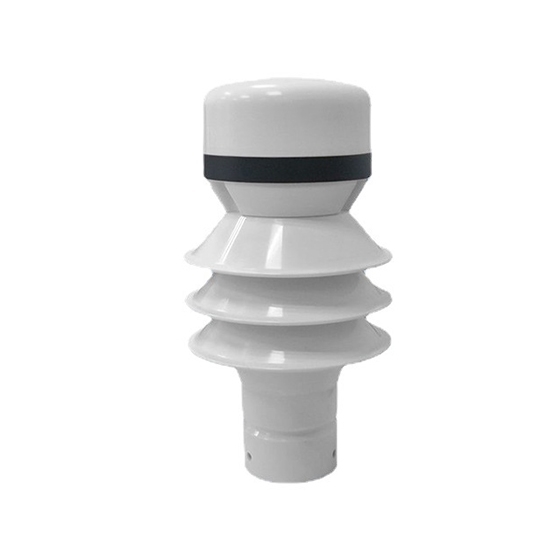

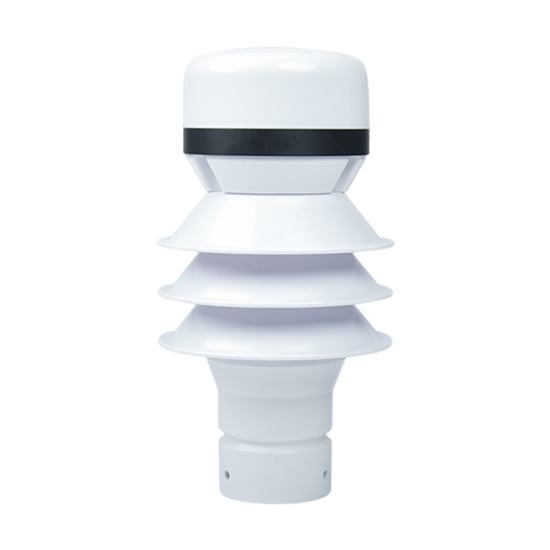

Radar Rain Gauge Sensor, RS485/RS232 Output

0 reviews • Write a review

from

$1,151.23

Ex Tax: $1,151.23

Stock: In Stock
Model: RDDLZ-RS-YL4
Weight: 1.00
SKU: RDDLZ-RS-YL4

Available Options

Short Description

Output Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The radar rain gauge sensor has high accuracy and sensitivity to monitor rain, snow, hail and other precipitation phenomena in real time. Equipped with RS485/RS232 interface and supporting ModBus communication protocol, the rainfall sensor is easy to be integrated into various data acquisition systems. With a range of 0-200mm/h and a resolution of 0.1mm, it can accurately measure precipitation particles from 0.5-5.0mm, ensuring efficient all-weather operation.

Specification

Model	RDDLZ-YL4
Communication Interface	RS485/RS232
Communication Protocol	ModBus
Power Supply	12-24VDC
Measurement Type	Rain, snow, hail
Measurement Range	0-200mm/hour (rainfall)
Measurement Accuracy	5% ( @ wind speed <5m/s )
Particle Size Range	0.5-5.0mm (raindrop size)
Resolution of Rainfall	0.1mm
Sampling Frequency	1 second
Power Consumption	Less than 2W
Operating Temperature	-30℃-70℃
Working Humidity	0-100%
Overall Dimension	Φ82*195mm
Material	ABS
Net Weight	380g

Features

Dimensional Drawing (unit: mm)

Applications

Tips: How is the accuracy of the radar rain gauge sensor assured?

The radar rain gauge sensor utilizes high-precision radar technology to accurately monitor the speed and volume of raindrops in order to calculate the amount of rainfall. The device's built-in auto-calibration system regularly adjusts the radar rain gauge sensor's measurement parameters to ensure the accuracy of the data. In addition, the rainfall sensor has a strong anti-interference capability and can work stably even in bad weather, greatly reducing data errors. For particularly delicate rainfall monitoring needs, please ensure that the installation location is suitable to avoid interference of radar signals by environmental obstacles.
