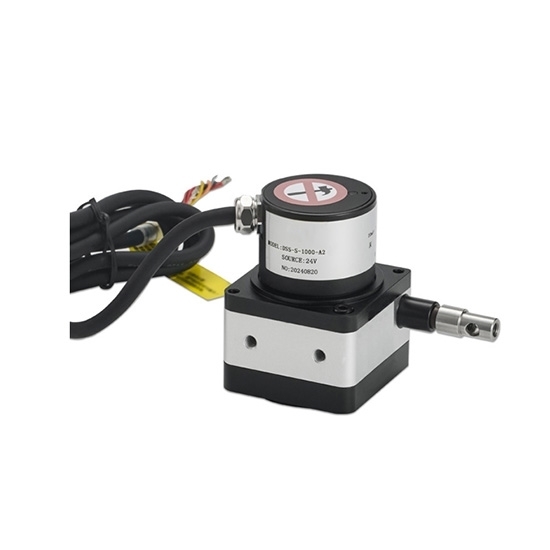

Waterproof Draw-wire Displacement Sensor, 500-1000mm

0 reviews • Write a review

from

$165.76

Ex Tax: $165.76

Stock: In Stock
Model: RDDLZ-WDS-MPSXS
Weight: 1.00
SKU: RDDLZ-WDS-MPSXS

Available Options

Short Description

Measuring Range

Output Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The shell material of the draw-wire displacement sensor is aluminum alloy, the surface is anti-static interference and non-conductive, with high accuracy and good stability.

Features

Waterproof draw-wire displacement sensor has small error, stable output data, high precision, and can provide accurate and reliable displacement measurement.
The draw-wire displacement sensor has a long service life and can operate stably even in harsh environments to ensure long-term reliability.
It has strong anti-interference performance, among which aluminum foil can effectively resist high-frequency interference, copper core wire braided net can effectively prevent low-frequency interference, and double-layer shielding design further enhances the anti-interference ability and ensures signal stability.

Specification

Model	RDDLZ-MPS-XS-R	RDDLZ-MPS-XS-V	RDDLZ-MPS-XS-A	RDDLZ-MPS-XS-P
Output type	Analog resistance	Analog voltage	Analog current	Pulse output
Displacement range	500~1000mm (optional)
Power supply voltage	5-24V, 10-30V
Repeat accuracy	0.01%
Linear accuracy	0.25%-0.05%FS
Working life	1 million times
Protection level	IP65 (contact us if you need IP67)
Product weight	660g
Maximum speed	100mm/s
Outlet tension	3N
Cable length	1m (standard), customizable
Wire rope	Highly flexible plastic-coated wire rope
Casing material	Aluminum alloy
Working temperature	-20-80℃

Dimension (mm)

Details

Wiring diagram

Applications

Tips: Precautions for using the draw-wire displacement sensor

Make the draw-wire vertical during installation and do not let the wire rub against the outlet.
Before the sensor is installed, do not pull out the traction rope and let it rebound automatically instantly. This may damage the sensor body and even endanger personal safety.
Please follow the wiring instructions for electrical connection. Make sure the wiring is correct before powering on.
The draw-wire displacement sensor is a precision instrument. Please do not knock it to ensure that the equipment and wire rope are clean and extend its service life.
Protect the wire rope from external damage.
Outdoor or in a harsh environment, please consult us for waterproof and dustproof outlets or protective housings.
