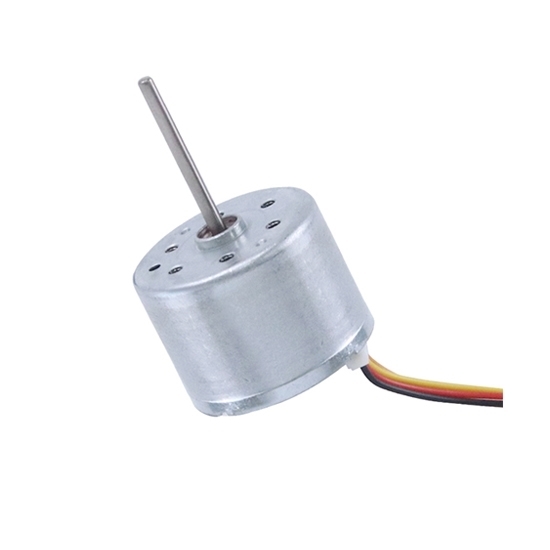

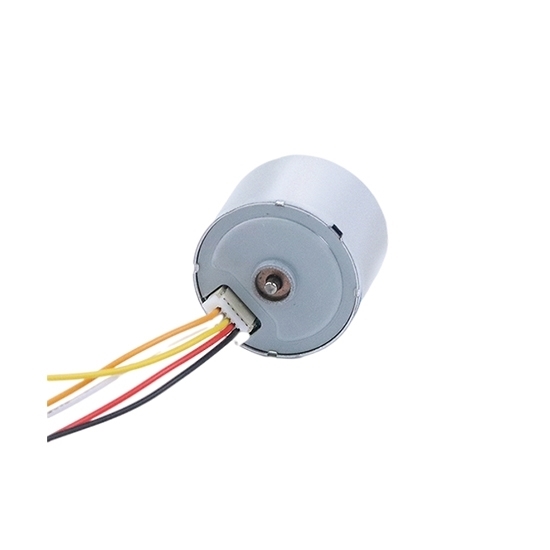

4500 Rpm 12V 24V Small Brushless DC Motor

0 reviews • Write a review

from

$90.39

Ex Tax: $90.39

Stock: In Stock
Model: RDDLZ-BLDC-4500R
Weight: 1.00
SKU: RDDLZ-BLDC-4500R

Available Options

Short Description

With Matched Controller

Voltage and Noload Speed

With Power

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High speed brushless DC motor can be reached 9000 rpm. Carbon steel circular shaft has high strength and stiffness. Pure copper coil material makes brushless motor to run more smoothly and work with less noise.

Specification:

Model Number: RDDLZ-2418
Shaft Length: 19.3 mm
Shaft Diameter: 2 mm
Size: 24 mm (D), 43 mm (L)
Construction: Permanent Magnet
Wiring: 5 lines
Weight: 90g
Motor Type: Micro Brushless DC Motor
Rated Power: 2.5W
Rated Voltage: 12V DC, 24V DC
Rated Current: 0.08A, 0.15A
Noload Speed: 4500 rpm, 9000 rpm
Noload Current: 0.035A, 0.05A
Rated Torque: 16.2 g.cm, 33.6 g.cm
Efficiency: 80%
Certification: CE
Warranty: 12 Months

Dimension (mm):

Details

Tips: Features of Brushless DC Motor:

Brushless DC motor has the advantages of traditional DC motor, while eliminating carbon brush and slip ring structure.
It can be low speed and high power operation, can save the reducer directly drive large load.
Small size, light weight and large output.
Excellent torque characteristics, medium and low speed torque performance is good, large starting torque, small starting current.
Stepless speed regulation, wide speed regulation range, strong overload capacity.
High efficiency, motor itself without excitation loss and carbon brush loss, eliminate multi-level deceleration.
High reliability, good stability, strong adaptability, simple repair and maintenance.
Shock resistance, low noise, small vibration, smooth operation, long service life.
