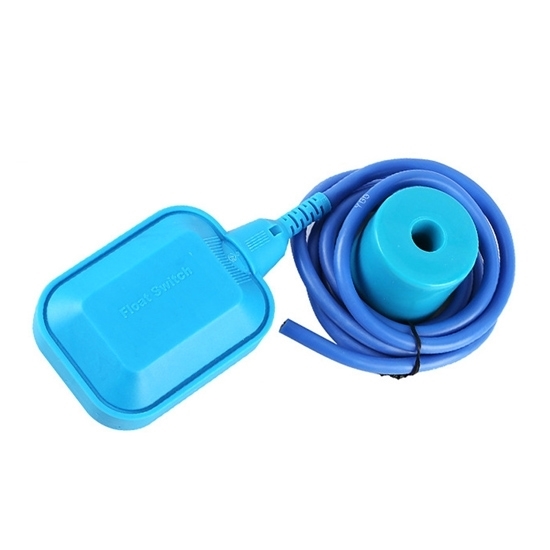

Water Level Float Switch, 220V

0 reviews • Write a review

from

$53.41

Ex Tax: $53.41

Stock: In Stock
Model: RDDLZ-FS-EM15
Weight: 1.00
SKU: RDDLZ-FS-EM15

Available Options

Short Description

Length

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High quality cable float switch for sale online. It is a water level float sensor equipped with 2m~10m cable length, AC 220V operating voltage, 1100W rated power, strong corrosion resistance, and good insulation.

Specifications

Model: RDDLZ-EM15-2
Working Voltage: AC 220V
Measuring Medium: Water
Working Temperature: 0~80°C
Rated Power: 1100W
Lead Length: 2m/3m/4m/5m/6m/7m/8m/10m
Spherical Size: 129.5x78mm
Liquid Contact Material: Silicone
Installation Method: Vertical Installation

Dimension

Applications

Tips: What is a water level float switch?

A water level float switch is a device designed to monitor and control the liquid level in a container, such as a tank or a reservoir. It consists of a buoyant float connected to an electrical switch mechanism. As the liquid level rises or falls, the float moves with it. When the float reaches a predetermined level, it activates or deactivates the switch, triggering electrical signals.

Commonly used in industrial, commercial, and residential applications, water level float switches play a crucial role in automating processes like filling or draining tanks, controlling pumps, and preventing overflow or dry running. The two main types of float switches are vertical and horizontal, each suitable for specific applications. Vertical float switches are ideal for vertical mounting inside tanks, while horizontal float switches work well in narrow spaces.

The simplicity, reliability, and cost-effectiveness of water-level float switches make them valuable components in various liquid-level control systems, contributing to efficient and safe operations in diverse industries.
