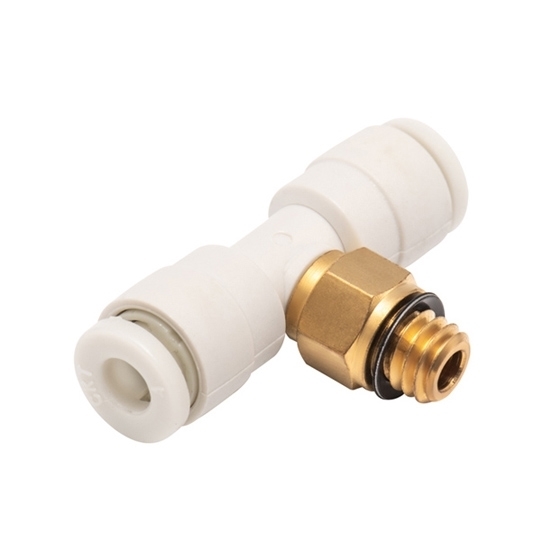

Water Hose Quick Connector, M Type

0 reviews • Write a review

from

$6.15

Ex Tax: $6.15

Stock: In Stock
Model: RDDLZ-QC-M03
Weight: 1.00
SKU: RDDLZ-QC-M03

Available Options

Short Description

Input Cannula Diameter

Output Cannula/Thread Diameter (03)

Output Cannula/Thread Diameter (04)

Output Cannula/Thread Diameter (06)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

M type quick connector adopts a wear-resistant and brass construction for longer service life. No tools are required to connect or detach the quick connect fitting, providing significant advantages to the user. 03/04/06 mm water hose quick connector is suitable for various watering devices such as nozzle, sprayer, sprinkler, etc.

Specifications

Model	RDDLZ-KJT
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)	Model	Weight (g)
Φ3	RDDLZ-KJT03-M3	2.8
	RDDLZ-KJT03-M5	3.2
	RDDLZ-KJT03-M6	3.4
	RDDLZ-KJT03-01S	7.4
Φ3.2	RDDLZ-KJT23-M3	2.8
	RDDLZ-KJT23-M5	3.2
	RDDLZ-KJT23-M6	3.4
	RDDLZ-KJT23-01S	7.4
Φ4	RDDLZ-KJT04-M3	3.1
	RDDLZ-KJT04-M5	3.5
	RDDLZ-KJT04-M6	3.7
	RDDLZ-KJT04-01S	7.7
Φ6	RDDLZ-KJT06-M5	4.4
	RDDLZ-KJT06-M6	4.6
	RDDLZ-KJT06-01S	7.6

Tips: How to select the right quick connector?

Determine the workpiece tube type of the quick connector: commonly used are straight pipe or hole, threaded, flange tube, progressive expansion tube, pagoda head, turn over a tube, fuel pipe, etc., according to the different tube types to determine the connector type.
Determine the use of the environment: to understand the ambient temperature, humidity and corrosion of the quick connector.
Know the test requirements: blocked or connected, pressure size, ventilation, liquid, over water or dry, manual or pneumatic, automated, etc.
Determine the pipe diameter of the quick connector: the inner diameter and outer diameter program to distinguish, according to the model table to choose the right model on it, such as no standard model, you can contact the staff to customize.
Determine the model specifications reported to the rapid contactor staff to verify the applicability of the specifications model.
