Tower Light, LED/Bulb, Buzzer, DC 24V/AC 110V

0 reviews • Write a review

from

$55.32

Ex Tax: $55.32

Stock: In Stock
Model: RDDLZ-TOWL
Weight: 1.00
SKU: RDDLZ-TOWL

Available Options

Voltage (V)

Color

Item & Function

Additional Function

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Tower light is also called indicator light, industrial signal light and industrial warning light. It can be used to transmit the machine status to the operator as visual and acoustical signals, or used in alll kinds of special places as warning signs, or used as communication signal and position indication for municipal administration, field operation, tutelage and rescue.

Specification:

Model	RDDLZ-TORL
Weight	1kg
Operating voltage	DC 6V, DC 12V, DC 24V, AC 110V, AC 220V, AC 380V
Power	2-10W
Light source	LED, bulbs
Installation method	Magnetic type, bolt fixing type
Stack light diameter	Φ84mm, Φ86mm, Φ102mm, Φ120mm
Material of lamp housing	AS
Material of base	ABS
Material of retroreflector	Polycarbonate
Light color	Red, yellow, green, blue, white
Function	Steady light, flash light, revolving light, buzzer
Flash frequency	90-150 times/min
Revolving speed	90-130RPM
Buzzer	Adjustable volume 85-90db within 1 meter
Operating temperature	-25~60℃
Protection class	IP54, IP45

Selection table:

Item	Light source	Voltage	Function	Protection class	Stack light diameter	Stack light height
E5081	LED	DC 12V, DC 24V, AC 110V, AC 220V	Flash light	IP54	84mm	84mm
E1101	Bulbs	DC 12V, DC 24V, AC 110V, AC 220V, AC 380V	Revolving light	IP54	102mm	100mm
E5101	LED	DC 12V, DC 24V, AC 110V, AC 220V, AC 380V	Flash light	IP54	102mm	100mm
E5011	LED	DC 12V, DC 24V, AC 110V, AC 220V, AC 380V	Flash light	IP54	102mm	100mm
E5122	LED	DC 12V, DC 24V, AC 110V, AC 220V, AC 380V	Flash light	IP54	120mm	136mm

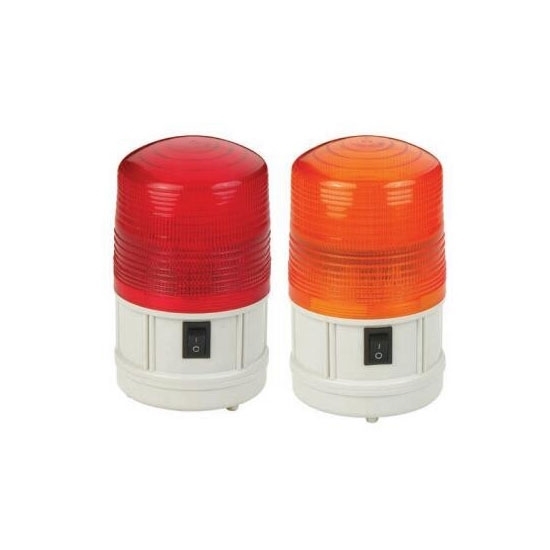

D5088	LED	DC 6V (dry battery), DC 12V, DC 24V	Flash light	IP45	86mm	90mm

Tower light dimension drawing (unit: mm):
