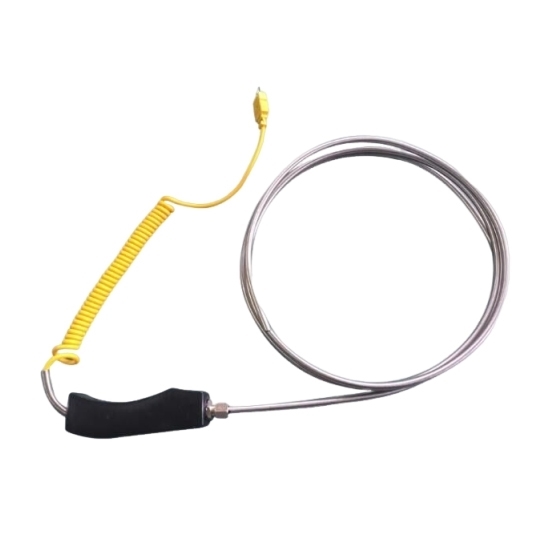

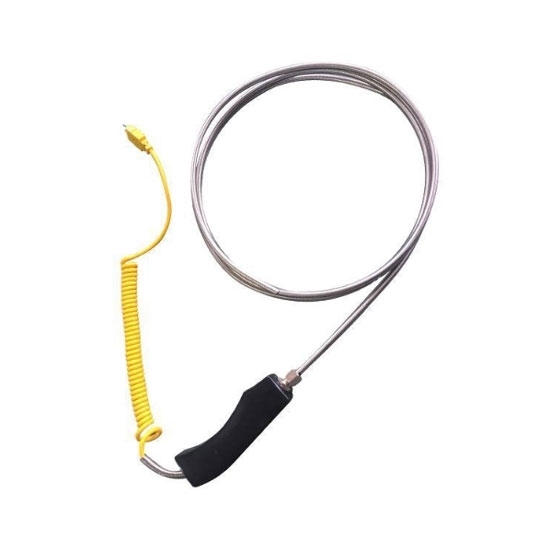

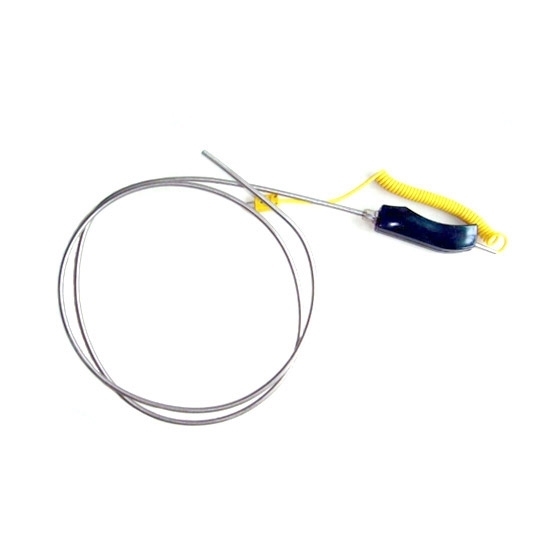

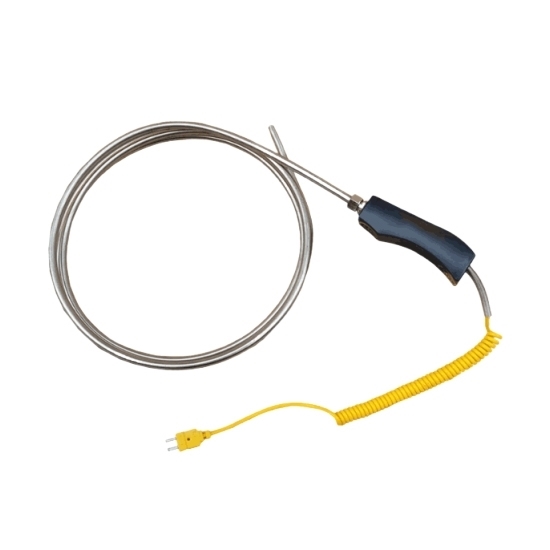

Thermocouple, J Type, Sheath

Thermocouple, J Type, Sheath
Thermocouple, J Type, Sheath
Thermocouple, J Type, Sheath
Thermocouple, J Type, Sheath
Thermocouple, J Type, Sheath
Thermocouple, J Type, Sheath
Thermocouple, J Type, Sheath
Thermocouple, J Type, Sheath
Thermocouple, J Type, Sheath
0 reviews • Write a review
from
$68.92
Ex Tax: $68.92
  • Stock: In Stock
  • Model: RDDLZ-TC-JS
  • Weight: 1.00
  • SKU: RDDLZ-TC-JS

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

As a temperature sensor, thermocouple is usually used with display instruments, recording instruments and signal conditioners. Sheath thermocouple also can be used as a temperature sensing element for assembly thermocouple.

Specification

1. S/E/K/J/T type thermocouple temperature range and accuracy chart

CategoryType of sensing elementSheath diameterNormal working temperatureHighest working temperatureAllowable deviation Δt
Measuring rangePermissible deviation
Platinum Rhodium 10 - PlatinumS type≥Φ3mm1100℃1300℃0~1300℃±2.5℃ or ±0.75%t
Nickelchromium - Copper nickelE type≥Φ3mm600℃700℃0~700℃±2.5℃ or ±0.75%t
Nickel chromium - Nickel siliconK type≥Φ3mm800℃950℃0~900℃±2.5℃ or ±0.75%t
Iron - constantanJ type≥Φ3mm500℃600℃0~600℃Not specified
Copper - Copper nickelT type≥Φ3mm350℃400℃＜-200℃Not specified
-40~350℃±1.0℃ or ±0.75%t

2. Thermal response time of thermocouple

Sheath diameter (mm)

Thermal response time (s)
Shell typeInsulation type
2.00.40.5
3.00.61.2
4.00.82.5
5.01.24.0
6.02.06.0
8.04.08.0

3. Thermocouple wire structure chart

4. Selection chart

Branch numberInstalling formMode of connectionWorking end formMultipoint typeAdditional deviceSheath diameterSheath length
B1: Single branch;
B2: Double branch		I1: No fixed device;
I2: Fixed card sets of thread joint;
I3: Movable card sets of thread joint;
I4: Fixed card sets of flange;
I5: Movable card sets of flange		C0: Simple terminals;
C3: Standard waterproof protection head;
C4: Explosion-proof protection head;
C5: Standard plug;
C6: Aviation plug;
C7: Handheld;
C8: Small waterproof protection head;
C9: Direct lead wire		W1: Insulation type;
W2: Shell type;
W3: Open end type		M3: 3 points;
M4: 4 points;
M5: 5 points;
M6: 6 points		S: Sanitary chuck;
H: Heat collector		D3: Φ3;
D4: Φ4;
D5: Φ5;
D6: Φ6;
D8: Φ8		Φ3: 50~15000mm;
Φ4: 50~10000mm;
Φ5: 50~4000mm;
Φ6: 50~2000mm;
Φ8: 50~1000mm

5. Thermocouple installation diagram



Feature

  • High Mechanical Strength: Strong structure with good pressure resistance, suitable for harsh industrial environments.
  • Flexible Installation: Can be bent for curved or space-limited mounting scenarios, enhancing installation convenience.
  • Wide Measurement Range: Sheath thermocouple suitable for various temperature ranges in industrial and laboratory use.
  • Fast Thermal Response: Minimizes dynamic error with rapid response to temperature changes.
  • Leak-Proof Insulated Connector: Designed with anti-electric-leakage plastic molding, crafted through multiple precise processes for safety and reliability.
  • Premium Plastic Components: Quality plastic materials offer durability and insulation.
    Comfortable Handle Design: Ergonomically shaped grip for safe and easy handling.

Tips: How to prevent interference for thermocouple?

  1. Isolation
    Isolation method is to hang thermocouple in the air to isolate thermocouple from refractory brick of furnace wall, and thermocouple is also isolated from support by use of insulation object. The method can prevent interference of high temperature electric leakage.
  2. Shielding
    Shielding method is to make extension wire of thermocouple pass through iron tube or other metal shields to isolate. In this way, it can prevent electromagnetic interference and interference of high voltage electric field. When using this method, iron tube and shields should be connected with the ground well and twist the extension wire as well.
  3. Ground connection
    This method has two forms: The first is to connect the reference end of thermocouple with the ground, and second is to connect the measurement end of thermocouple with the ground.
