Soil resistivity tester for sale online. It is also a earth resistance tester that can measure ground resistance, soil resistivity, and ground voltage on-site, available with a 0~30000 ohm large range, reading, consulting, saving, reporting, printing and other historical data functions, widely used in electric power, telecommunications, meteorology, oil field, construction, lightning protection and industrial electrical equipment.

Features

Soil resistivity tester is available with a 0.00~30kΩ measure range and a waterproof case.
Digital soil resistivity tester has a precise 3/4-wire and simple 2-wire method to measure earth resistance, soil resistivity and earth voltage.
It has imported FFT (fast Fourier transform) technology, and AFC (automatic frequency control) technology, with unique anti-interference ability and environmental adaptability, high repeat test consistency.

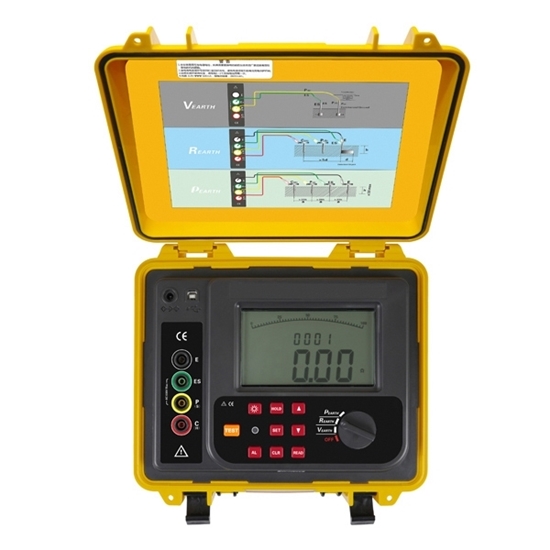

Package with waterproof protection box, waterproof, crash-proof, anti-drop and durable, and large-capacity rechargeable lithium battery pack, especially suitable for use at outdoor construction sites.
The soil resistivity tester is equipped with a large LCD display of the host machine with a white backlight and bar graph indication that can be seen clearly. Alarm function, overload protection function, auto shutdown and data upload function.

Specifications

Model	RDDLZ-ERT-3100C
Earth Resistance(R)	Range: 0.00Ω~30.00Ω Resolution: 0.01Ω Accuracy: ±2%rdg±3dgt
	Range: 30.0Ω~300.0Ω Resolution: 0.1Ω Accuracy: ±2%rdg±3dgt
	Range : 300Ω~3000Ω Resolution: 1Ω Accuracy: ±2%rdg±3dgt
	Range: 3.00kΩ~30.00kΩ Resolution: 10Ω Accuracy: ±4%rdg±3dgt
Earth Voltage	Range: AC 0.0~600V Resolution: 0.1V Accuracy: ±2%rdg±3dgt
Soil Resistivity(ρ)	Range: 0.00Ωm~99.99Ωm Resolution: 0.01Ωm	Accuracy: According to the precision of R (ρ=2πaR, a: 1 m-100m, π=3.14)
	Range: 100.0Ωm~999.9Ωm Resolution: 0.1Ωm
	Range: 1000Ωm~9999Ωm Resolution: 1Ωm
	Range: 10.00kΩm~99.99kΩm Resolution: 10Ωm
	Range: 100.0kΩm~999.9kΩm Resolution: 100Ωm
	Range: 1000kΩm~9000kΩm Resolution: 1kΩm
Power Supply	DC 7.4V 2600mAh rechargeable lithium battery, full charge about DC 8.4V
Measurement Method	Earth Resistance: rated current change-pole method, measure current 20mA Max Soil Resistivity: Wenner 4-pole measurement Earth Voltage: average rectification(between P(S)-ES)
Test Frequency	128Hz/111Hz/105Hz/94Hz (AFC)
Test Voltage Wave	Sine wave
Short-circuit Test Current	AC 20mA max	Open-circuit Test Current	AC 40V max
Data Storage	300 groups	Data Hold	Data hold function: "HOLD" symbol display
Data Access	Data access function: "READ" symbol display	Overflow Display	Exceeding measure range overflow function: "OL" symbol display
LCD Dimension	LCD Frame Dimension: 128mm×75mm； LCD Display Dimension: 124mm×67mm
Tester Dimension	280mm(L)×260mm(W)×160mm(H)
Weight	Total Weight: 5700g(with package)
Testing Wires	Red 20m, black 20m, yellow 10m, green 10m, red 1.6m, black 1.6m (total 6pcs wires)
Auxiliary Ground Rod	4PCS: Φ10mm×250mmp10mmx250mm
USB Interface	With a USB interface, software monitoring, stored data can be uploaded to a computer, saved and printed, data transmission cable length: 1.5m
Alarm Function	Measure value exceeds alarm setting value, will "Toot-toot-toot" alarm indication
Auto Shutdown	15 minutes after power is on, will automatically shut down without any operation.
Overload Protection	Measure earth resistance: between each interfaces of C(H)-E, P(S)-ES, AC 280V/3 seconds
Interference Test	Automatic recognition of interference signal, interference voltage higher than 5V will display the "NOISE" symbol
Auxiliary Grounding Test	Auxiliary earth resistance test function: 0.00kΩ~30kΩ(100R+rC<50kΩ, 100R+rP<50kΩ)
Protection Level	IP65（close the case）
Battery Voltage	When the battery voltage decreases to around DC 7.2V+0.1V, will display the battery voltage low symbol, and remind to replace the battery
Working Current	Standby: around 20mA (Backlight close); Power on with backlight: 45mA (backlight close 25mA); Measurement: 100mA (Backlight close)
Accessories	Tester: 1PC; Ground Rod: 4PCS; Test wires: 4PCS; Simple test wire: 2PCS; USB data transmission cable: 1PCS; Tester bag: 1PCS; Special charger: 1PCS

Note: The additional error when rCmax or rPmax is ≤ ± 3% rdg ± 5dgt.

Details

Applications

RDDLZ provides earth resistance testers with a measurement range of 0.00Ω-300kWΩ, which are widely used in ground resistance measurement and loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil fields, construction, and industrial electrical equipment. When measuring the grounding system with a loop, the ground resistance tester does not need auxiliary electrodes and does not need to disconnect the grounding wire, which is safer and faster.

Tips: Do we need to test soil resistivity regularly?

It depends on whether your current or future needs require soil resistivity testing as it will determine the type of ground resistance tester you need. For example, if your work involves the design or installation of a new grounding system, soil resistivity testing is a must. Currently, most people use a ground resistance tester to test soil resistivity.
