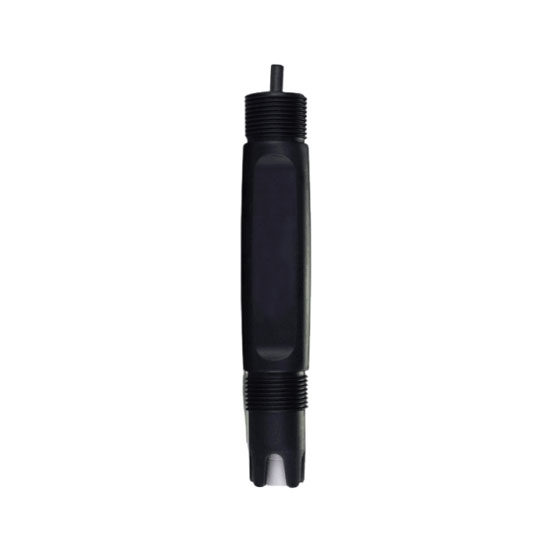

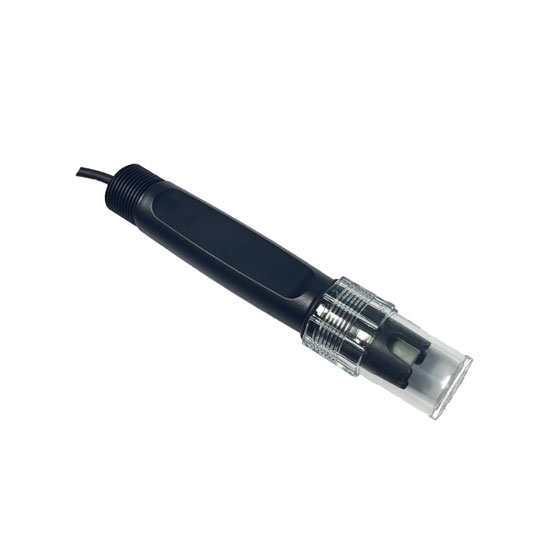

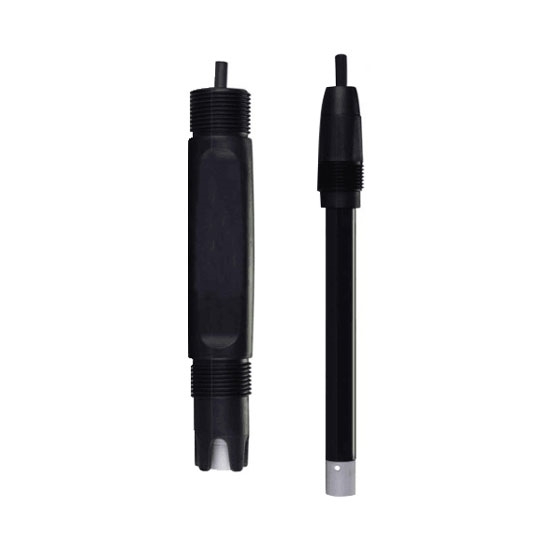

Sodium sensor with a 0.2 to 100,000 ppm range, RS485 output, and <0.5W power consumption. It also measures temperature from -10°C to 110°C. Perfect for mineral water, drinking water, industrial circulation, wastewater, seawater, soil, food, and biological fluids.

Specification

Feature

• High Precision Electrodes: The sodium sensor provides accurate and stable readings with high-precision ion-selective electrodes, eliminating the need for trial reagents.
• Easy Installation: With a G3/4 pipe thread, installation is simple, cutting down on setup time and cost.
• RS485 Output: It supports RS485 output, making it easy to integrate with monitoring systems for real-time data tracking.
• Low Power Consumption: With a power usage of less than 0.5W, it is energy-efficient and cost-effective.
• High-Quality Cable: Equipped with a 5m (customizable) low-noise cable to ensure stable data transmission without interference.
• Automatic Temperature Compensation: The water quality sensor automatically adjusts to temperature variations, providing reliable results.
• Durability and Environmental Resistance: Built to resist environmental factors, this sensor is ideal for both industrial and natural environments.

Dimension (Unit: mm)

Wiring Instructions

Application

Tips: What is the maintenance requirement for the sodium sensor?

The sodium sensor requires minimal maintenance, making it a cost-effective solution for long-term water quality monitoring. To ensure reliable performance, it’s important to rinse the sensor with distilled water after use to remove any contaminants or residues that could affect the sensor’s readings. Regular calibration is also recommended to maintain accuracy, especially if the sensor is used in environments with fluctuating water chemistry. For long-term storage, the sensor should be kept in a dry environment or immersed in a standard electrolyte solution to prevent drying out or damage to the electrode.
